Introduction

Oscillators are fundamental components in electronic devices and systems responsible for generating precise and stable waveforms essential for various applications. Understanding their definition, types, and applications is essential for making informed decisions when designing electronic systems. An oscillator is an electronic circuit or device that produces an output signal with a specific frequency and waveform shape. It accomplishes this by converting direct current (DC) into alternating current (AC), continuously oscillating between two voltage levels. The resulting output waveform can take various shapes, including sinusoidal, square, triangular, or any other desired form.

These fundamental components play an important role in electronic systems, providing necessary waveforms and frequencies for applications such as communication systems, audio systems, timing and synchronization, or test and measurement equipment. By understanding the different types of oscillators and their applications, designers can efficiently implement electronic circuits. Various oscillator types, like Harmonic Oscillators that create smooth wave patterns for precise applications, or Relaxation Oscillators that produce different waveforms such as saw-tooth or triangular shapes, have specific roles in diverse electronic devices.

In this article, we are going to discuss Oscillators: What Are They? (Definition, Types, & Applications) in detail. The article aims to provide an overview of different types of oscillators and their applications. Let's start exploring!

What is an Oscillator?

Oscillators are devices that move back and forth repeatedly. They can be mechanical or electronic and are driven by changes in energy. These devices help in various gadgets such as computers, clocks, watches, radios, and metal detectors. An oscillator circuit is an essential circuit that generates an output signal with a specific frequency and waveform shape, converting DC into AC through continuous oscillations. This waveform can take the form of sinusoidal, square, triangular, or any other desired shape.

An oscillator is like a circuit that works on its own, creating regular wave patterns such as sine, square, or triangle waves. It plays a big role in electronic design by generating repetitive signals with specific frequencies and amplitudes, converting DC into AC. From clock pendulums to atomic clocks, oscillators span a spectrum of precision. While mechanical oscillators are straightforward, electronic counterparts play crucial roles in computers, wireless communication, and audio equipment. They operate on a fundamental principle, utilizing sensitive amplifiers and positive feedback to regenerate and sustain signals. Interestingly, this positive feedback mechanism can cause unwanted "howling" in public-address systems. Without external input, oscillators independently create continuous alternating waveforms. Looking at how an LC tank circuit behaves gives us insight into its basic working principle.

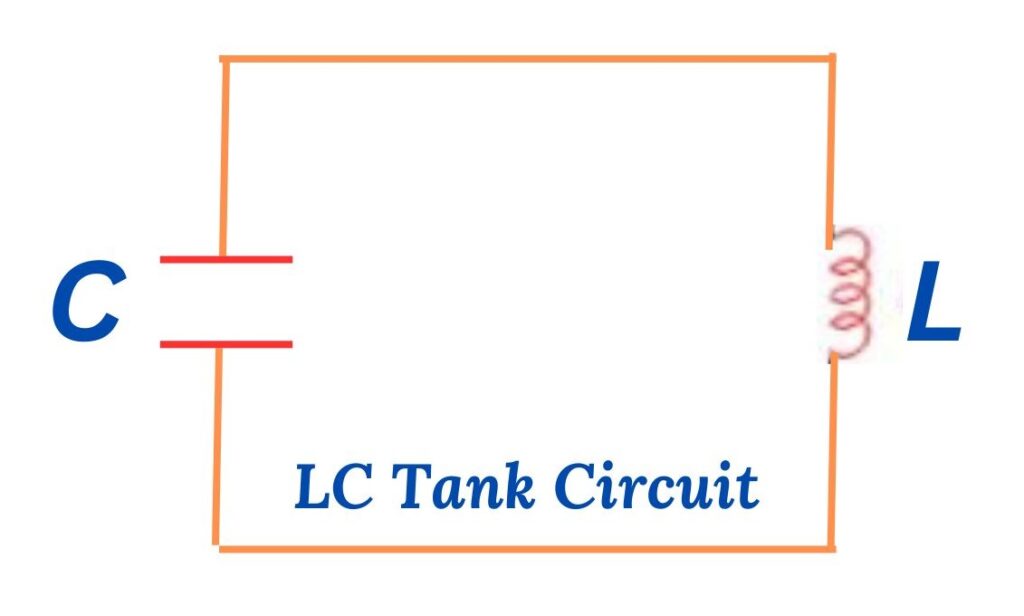

LC Tank Circuit

The circuit includes an inductor and a charged capacitor, going through a discharge process that converts electrical energy into an electromagnetic field stored in the inductor. Electronic oscillators create different signals without needing any outside input and they are known for having positive feedback. The feedback loop makes sure the oscillations continue, and this principle is a crucial part of how they are designed. Apart from their technical uses, oscillators also work as a tool in technical analysis. They establish upper and lower bands based on extreme values, helping traders identify overbought or oversold conditions. Analysts view values approaching the upper extreme as signs of overbought assets and vice versa. As mentioned before, an oscillator is basically a system made up of an amplifier connected to a positive feedback circuit. The picture below shows the basic setup of an oscillator.

Components Free Worldwide Shipping

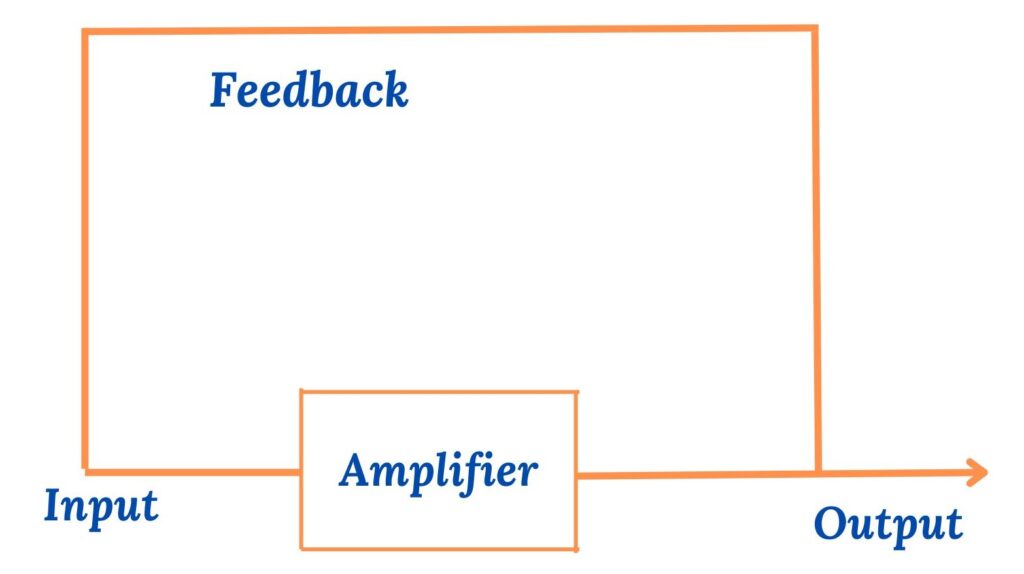

 Block Diagram of oscillator

Oscillator Block Diagram

In a simple setup, there's a feedback network that helps select specific frequencies. Before the amplifier, there's a circuit that creates oscillations, like a swinging pendulum but in the electronic world. The amplifier's role is to turn regular electrical power into a back-and-forth type of power. This oscillating signal then goes back to the circuit through a loop. Since the amplifier makes the input stronger, the output shows larger back-and-forth movements. The loop is intentionally arranged so that some of the output goes back to the oscillating circuit in a way that keeps the whole process going, creating a continuous cycle.

What is a Local Oscillator?

A local oscillator, often abbreviated as LO, is an electronic circuit or component designed to generate a continuous, stable, and adjustable electrical signal at a specific frequency.

This frequency, known as the LO frequency, serves as a reference or source signal for various purposes, especially in the field of radio frequency (RF) and microwave systems.

For more information please visit this article: Local Oscillator Working and Applications.

Types of Oscillators

The two main categories of oscillators -

  • Harmonic Oscillators
  • Relaxation Oscillators

What are Harmonic Oscillators?

Harmonic Oscillators, also known as Linear Oscillators, are widely used in electronic circuits. These oscillators operate based on the principle of energy flow from active components to passive components. The frequency of oscillations is determined by the feedback path within the circuit. Harmonic oscillators produce low-distorted sine-wave outputs, making them ideal for applications that require precise and clean waveforms.

What are Relaxation Oscillators?

Relaxation Oscillators operate differently. In these oscillators, energy is exchanged between active and passive components. The frequency of oscillations is determined by the charging and discharging time-constants involved in the process. Unlike harmonic oscillators, relaxation oscillators generate non-sinusoidal waveforms such as saw-tooth, triangular, or square waveforms. These waveforms find applications in various fields, including audio synthesis, pulse generation, and frequency modulation.

Here are a few examples of the different types of oscillators used in electronic circuits. Each type has its own unique characteristics and applications:

  • LC Oscillator : An LC oscillator, also known as a tank circuit oscillator, uses an inductor (L) and a capacitor (C) to generate an oscillating signal. The LC oscillator operates based on the principle of resonance, where the energy is exchanged between the inductor and the capacitor at a specific frequency. This type of oscillator is commonly used in radio frequency (RF) applications.
  • RC Oscillator : The RC oscillator, also referred to as a relaxation oscillator, uses a resistor (R) and a capacitor (C) to generate an oscillating waveform. The RC oscillator works by charging and discharging the capacitor through the resistor, creating a repetitive voltage waveform. This type of oscillator is often used in timing circuits and low-frequency applications.
  • Crystal Oscillator : The crystal oscillator is a highly stable and accurate type of oscillator that uses the mechanical resonance of a quartz crystal to generate a precise frequency. The crystal oscillator is widely used in electronic devices such as computers, telecommunication equipment, and digital watches. Its stability and accuracy make it suitable for applications that require precise timing.
  • Wien Bridge Oscillator : The Wien Bridge oscillator is a type of oscillator that uses a combination of resistors, capacitors, and an operational amplifier (op-amp) to generate a sinusoidal waveform. The Wien Bridge oscillator is known for its simplicity and low distortion. It is commonly used in audio applications, such as audio oscillators and audio signal generators.
  • Phase-Shift Oscillator : The phase-shift oscillator is a type of oscillator that uses a combination of resistors and capacitors to generate an oscillating signal. The phase-shift oscillator works by creating a phase shift of 180 degrees at a specific frequency, resulting in positive feedback and sustained oscillations. This type of oscillator is commonly used in audio and radio frequency applications.
  • Voltage-Controlled Oscillator (VCO) : A voltage-controlled oscillator (VCO) is an oscillator whose frequency can be controlled by an input voltage. The VCO is widely used in frequency modulation (FM) and phase-locked loop (PLL) circuits. It is commonly found in applications such as wireless communication systems, synthesizers, and frequency synthesizers.
  • Gunn Oscillator: The Gunn oscillator is a type of oscillator that uses a Gunn diode to generate microwave frequencies. The Gunn diode operates based on the Gunn effect, where a high electric field within the diode creates negative differential resistance, allowing for the generation of microwave signals. Gunn oscillators are commonly used in radar systems, microwave communication, and scientific research.
  • Ring Oscillator: A ring oscillator is a type of oscillator that consists of an odd number of inverter stages connected in a ring configuration. The ring oscillator generates an oscillating signal by continuously circulating the signal through the inverter stages. Ring oscillators are commonly used in digital circuits for clock generation and frequency synthesis.

Oscillator Applications

Oscillators are electronic circuits that generate repetitive waveforms. They are widely used in various applications across different industries like communication systems, timing and clocking systems, test and measurement equipment, audio and video systems, medical equipment, industrial control systems, and scientific research. Without oscillators, many of the technologies and systems we rely on today would not be possible. Their ability to generate accurate and stable waveforms makes them essential components in various electronic devices and systems.

  • Communication Systems : Oscillators play a crucial role in communication systems. They are used to generate carrier signals for transmitting information. For example, in radio communication, oscillators are used to generate high-frequency carrier signals that carry audio or data. In mobile phones, oscillators are used to generate the clock signals that synchronize the operation of various components.
  • Timing and Clocking Systems : Oscillators are essential in timing and clocking systems. They provide accurate and stable clock signals that synchronize the operation of digital devices. Oscillators are used in computers, microcontrollers, and other digital systems to ensure precise timing for data processing, memory access, and other operations. Without oscillators, these systems would not be able to function properly.
  • Test and Measurement Equipment : Oscillators are widely used in test and measurement equipment. They are used as reference signals for calibrating and measuring various parameters. Oscillators with high stability and accuracy are used in frequency counters, spectrum analyzers, and other equipment to ensure precise measurements. They are also used as timebase references in oscilloscopes and signal generators.
  • Audio and Video Systems : Oscillators are used in audio and video systems for generating the timing signals required for proper playback. In audio systems, oscillators are used to generate the clock signals that control the sampling rate of digital audio converters. In video systems, oscillators are used to generate the horizontal and vertical synchronization signals that ensure proper display of video content.
  • Medical Equipment : Oscillators find applications in various medical equipment. They are used in devices such as electrocardiographs (ECGs), ultrasound machines, and patient monitors. Oscillators are used to generate the signals required for measuring and monitoring vital signs. They provide the necessary timing and synchronization signals for accurate data acquisition and analysis.
  • Industrial Control Systems : Oscillators are used in industrial control systems for precise timing and synchronization. They are used in programmable logic controllers (PLCs), motor control systems, and other industrial automation systems. Oscillators provide the clock signals required for coordinating the operation of various components and ensuring accurate control of industrial processes.
  • Scientific Research : Oscillators are extensively used in scientific research. They are used in laboratory equipment for generating precise timing signals and reference frequencies. Oscillators with high stability and accuracy are used in experiments and measurements that require precise timing and synchronization. They are also used in research instruments such as atomic clocks and frequency standards.

Get Free PCB Assembly

Conclusion

In conclusion, Definition of oscillators “oscillators are an essential component in many electronic devices and systems. They are responsible for generating repetitive waveforms, such as sine waves, square waves, and triangular waves”. Oscillators play a crucial role in various fields, including telecommunications, electronics, and music. They are used to generate precise and stable frequencies, which are necessary for accurate timekeeping, signal generation, and frequency modulation. We have discussed the different types of oscillators, including the basic LC oscillator, the quartz crystal oscillator, and the voltage-controlled oscillator (VCO). Each type has its own unique characteristics and applications. For example, LC oscillators are commonly used in radio frequency (RF) applications, while quartz crystal oscillators are widely used in digital clocks and electronic devices that require accurate timing.

Furthermore, we have explored the applications of oscillators in different industries. In telecommunications, oscillators are used in transmitters and receivers to generate carrier signals and modulate data. In the field of electronics, oscillators are used in microprocessors, integrated circuits, and digital signal processors to provide clock signals and synchronize operations. In music, oscillators are used in synthesizers to generate various musical tones and effects. It is important to note that the performance of oscillators, such as frequency stability and phase noise, can significantly impact the overall performance of electronic systems. Therefore, engineers and designers need to carefully select and design oscillators based on the specific requirements of their applications.
