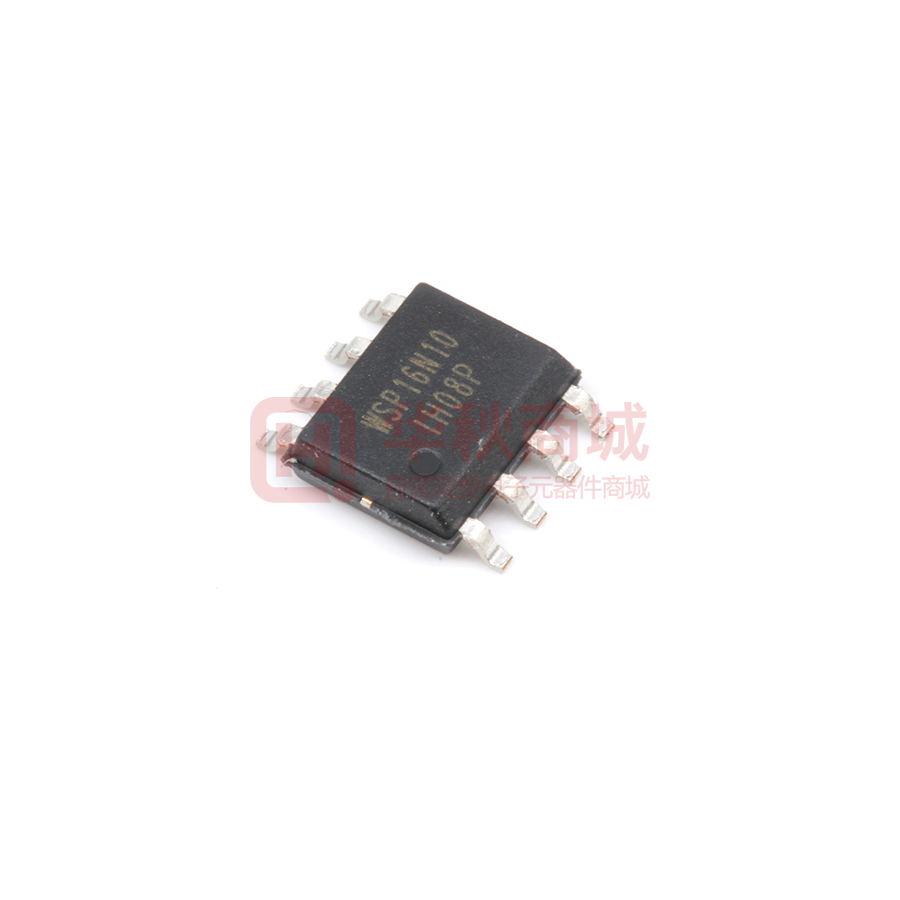

Images are for reference only
WSP16N10
- Mfr Part #WSP16N10
- ManufacturerWINSOK(微硕)
- HQ Part #DS0139924
- PackageSOP-8
- Lead TimeShip in 4-7WD
Description100V 16A 3.1W 11mΩ@10V,11.5A 2.5V@250uA N Channel SOP-8 MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 16A | |
| Threshold Voltage | 1.7V@250µA | |
| Drain Current | 16A | |
| Drain Source Voltage (Vdss) | 100V | |
| Operating Temperature | -55~+150℃ | |
| Installation Type | - | |
| Transistor Type | - | |
| Package / Case | SOP8_150MIL | |
| Power Dissipation | 3.1W | |
| Total Gate Charge | 15nC | |
| Reverse Transfer Capacitance | 39pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 100V | |
| Polarization | N-Channel | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 8Pin | |
| Height | 1.75mm | |
| L x W/Size | 4.90 x 3.90mm | |
| Country of Origin | China | |
| Original Manufacturer | Winsok power Semiconductor CO., LTD | |
| Brand | Winsok | |
| Input Capacitance Ciss | 4nF | |
| Rdson (Maximum) For Different Ids And Vgs | 11mΩ |
