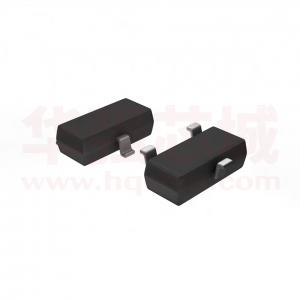

Images are for reference only
UMW SI2300A
- Mfr Part #UMW SI2300A
- ManufacturerUMW
- HQ Part #DS0140408
- PackageSOT-23
- Lead Time Ship immediately
DescriptionN-Channel 20-V(D-S) MOSFET
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 6A | |
| Threshold Voltage | 1V@50µA | |
| Drain Current | 6A | |
| Drain Source Voltage (Vdss) | 20V | |
| Operating Temperature | +150℃ | |
| Installation Type | - | |
| Transistor Type | - | |
| Power Dissipation | - | |
| Forward Voltage VF Max | 1.2V | |
| Total Gate Charge | 7.7nC | |
| Reverse Transfer Capacitance | 60pF | |
| Breakdown voltage of grid and source | ±12V | |
| Breakdown Voltage | 20V | |
| Polarization | N-Channel | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.15mm | |
| L x W/Size | 3.00 x 1.40mm | |
| Certification | RoHS | |
| Printing Code | C009T | |
| Country of Origin | China Taiwan | |
| Original Manufacturer | UMW | |
| Brand | UMW | |
| Input Capacitance Ciss | 574pF | |
| Rdson (Maximum) For Different Ids And Vgs | 21mΩ | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
