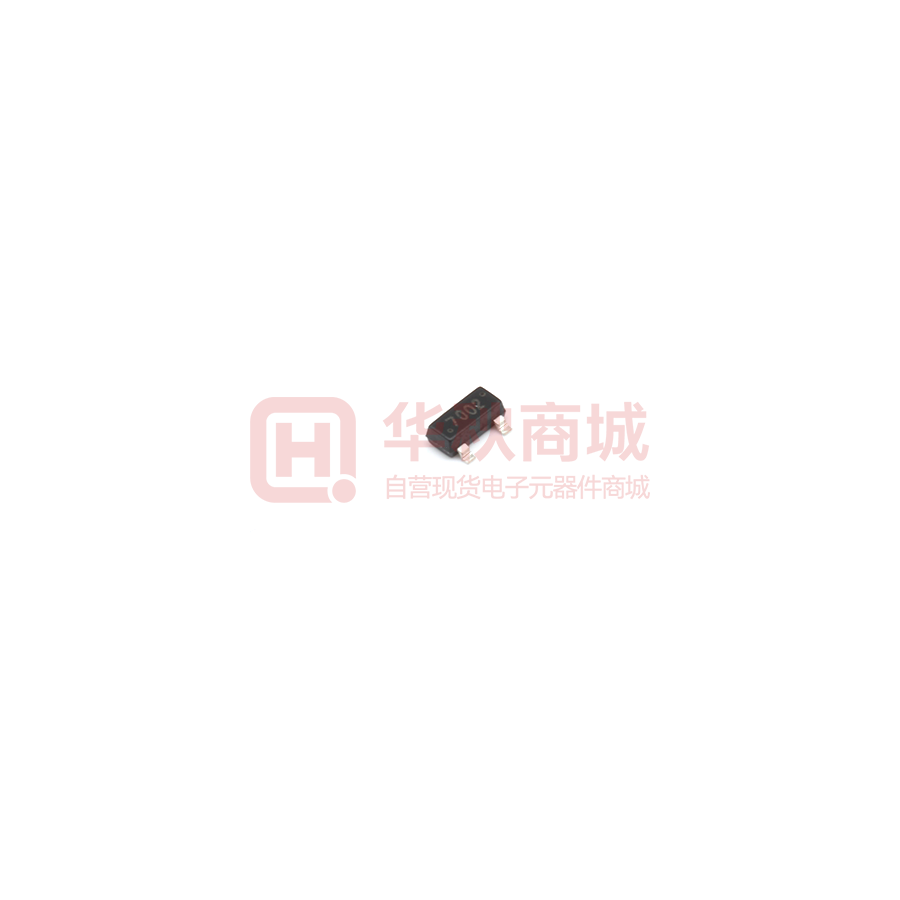

Images are for reference only
UMW 2N7002B
- Mfr Part #UMW 2N7002B
- ManufacturerUMW
- HQ Part #DS0140429
- PackageSOT-23
- Lead Time Ship immediately
DescriptionMOS N-Channel VDS=60V VGS=±20V ID=115mA Pd=225mW SOT23
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 115mA | |
| Threshold Voltage | 2.5V@250µA | |
| Drain Current | 0.115A | |
| Drain Source Voltage (Vdss) | 60V | |
| Operating Temperature | +150℃ | |
| Installation Type | - | |
| Transistor Type | - | |
| Power Dissipation | 225mW | |
| Reverse Transfer Capacitance | 5pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 60V | |
| Polarization | N-Channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.05mm | |
| L x W/Size | 3.00 x 1.40mm | |
| Certification | RoHS | |
| Printing Code | 7002 | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen UMW Semiconductor Co., Ltd. | |
| Brand | UMW | |
| Input Capacitance Ciss | 50pF | |
| Rdson (Maximum) For Different Ids And Vgs | 5Ω | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
