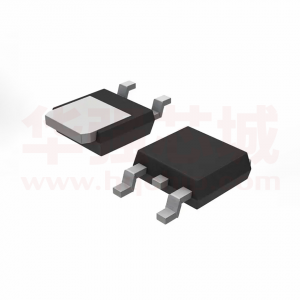

Images are for reference only
UMW 15N10
- Mfr Part #UMW 15N10
- ManufacturerUMW
- HQ Part #DS0140430
- PackageTO-252-2(DPAK)
- Lead Time Ship immediately
DescriptionMOS N-Channel VDS=100V VGS=±20V ID=15A RDS(ON)=110mΩ@10V TO252
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 15A | |
| Threshold Voltage | 1.5V@250µA | |
| Drain Current | 20A | |
| Drain Source Voltage (Vdss) | 100V | |
| Operating Temperature | -55~+175℃ | |
| Installation Type | - | |
| Transistor Type | - | |
| Package / Case | TO252-3 | |
| Power Dissipation | 50W | |
| Total Gate Charge | 50nC | |
| Reverse Transfer Capacitance | 250pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 110V | |
| Polarization | N-Channel | |
| Storage Temperature | -55~+175℃ | |
| Lead Quantity | 3Pin | |
| Height | 2.50mm | |
| L x W/Size | 6.60 x 6.10mm | |
| Certification | RoHS | |
| Country of Origin | China Taiwan | |
| Original Manufacturer | UMW | |
| Brand | UMW | |
| Input Capacitance Ciss | 2nF | |
| Rdson (Maximum) For Different Ids And Vgs | 110mΩ | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
