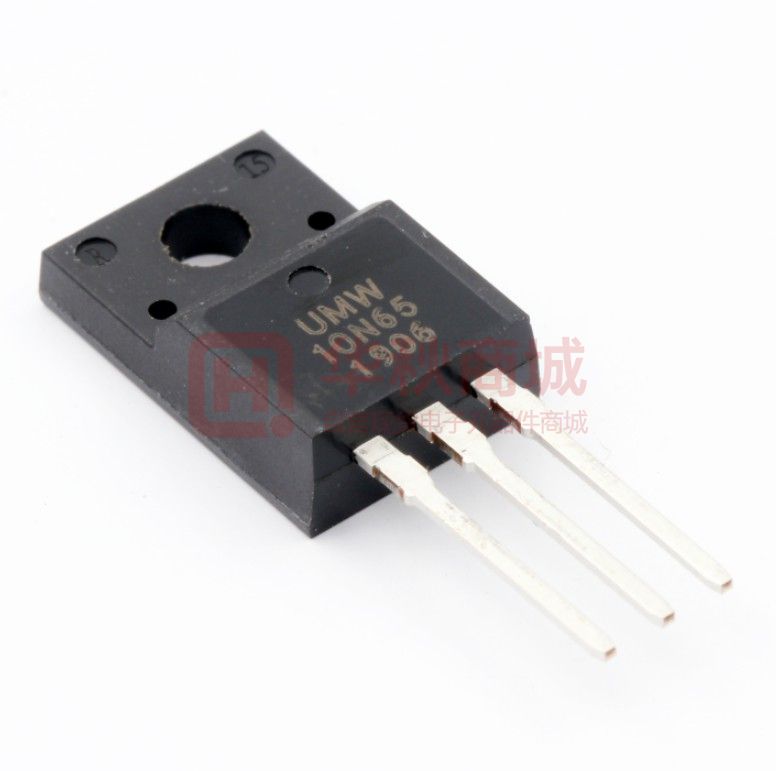

Images are for reference only

UMW 10N65F

  • Mfr Part #UMW 10N65F
  • ManufacturerUMW
  • HQ Part #DS0140395
  • PackageTO220F
  • Lead Time Ship immediately
  • DescriptionMOS N-Channel VDS=650V VGS=±20V ID=10A RDS(ON)=900mΩ@10V TO220F

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Forward Current10A
To ConfigureSingle
Continuous Drain Current10A
Threshold Voltage4V@250µA
Drain Current10A
Drain Source Voltage (Vdss)650V
Operating Temperature+150℃
Installation TypeDIP
Transistor Type-
Power Dissipation-
Forward Voltage VF Max1.4V
Total Gate Charge45nC
Breakdown voltage of grid and source±20V
Breakdown Voltage650V
PolarizationN-Channel
Storage Temperature-55~+150℃
Lead Quantity3Pin
Height20.00mm
L x W/Size10.30 x 4.95mm
CertificationRoHS
Country of OriginChina Taiwan
Original ManufacturerUMW
BrandUMW
Input Capacitance Ciss1.57nF
Rdson (Maximum) For Different Ids And Vgs900mΩ
Lead Free Or NotYes
Part StatusActive
