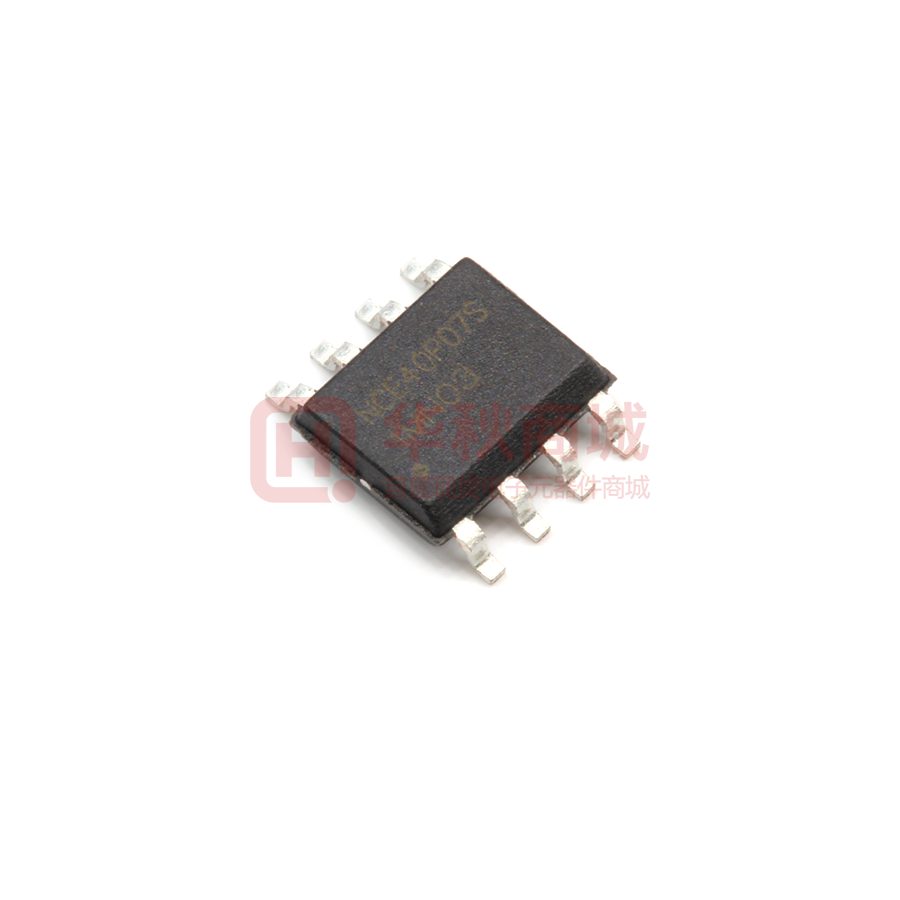

Images are for reference only
NCE40P07S
- Mfr Part #NCE40P07S
- ManufacturerNCE POWER
- HQ Part #DS0145294
- Package8-SOP
- Lead TimeShip in 4-7WD
DescriptionMOS P-Channel VDS=40V VGS=±20V ID=6.2A RDS(ON)=25mΩ@10V SOP8
- Customer #
- Datasheet Datasheet
Product Attributes
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 6.2A | |
| Grid Charge (Qg) | 24nC | |
| Threshold Voltage | 2.5V | |
| Drain Current | 1uA | |
| Drain Source Voltage (Vdss) | 40V | |
| Operating Temperature | -55~+150℃ | |
| Installation Type | - | |
| Transistor Type | - | |
| Package / Case | SOP8_150MIL | |
| Power Dissipation | 2.5W | |
| Power (Watts) | 2.5W | |
| Total Gate Charge | 24nC | |
| Reverse Transfer Capacitance | 180pF | |
| Breakdown voltage of grid and source | ±20V | |
| Polarization | P-channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 8Pin | |
| Height | 1.75mm | |
| L x W/Size | 4.90 x 3.90mm | |
| Country of Origin | China | |
| Brand | NCE | |
| Input Capacitance Ciss | 1.75nF | |
| Rdson (Maximum) For Different Ids And Vgs | 25mΩ | |
| Part Status | Active |
