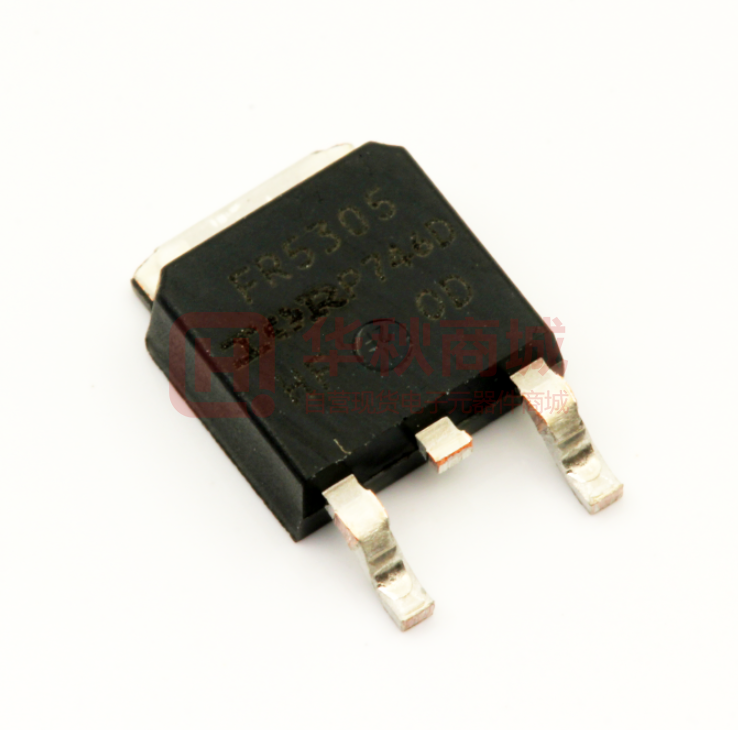

Images are for reference only
IRFR5305TRPBF
- Mfr Part #IRFR5305TRPBF
- ManufacturerInfineon
- HQ Part #DS0075673
- PackageTO-252-2(DPAK)
- Lead Time Ship immediately
Description55V 31A 65mΩ@10V,16A 110W 4V@250uA P Channel TO-252-2(DPAK) MOSFETs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| To Configure | Single | |
| Continuous Drain Current | 31A | |
| Grid Charge (Qg) | 63nC | |
| Threshold Voltage | 4V@250µA | |
| Drain Current | 31A | |
| Drain Source Voltage (Vdss) | 55V | |
| Operating Temperature | -55~+175℃ | |
| Installation Type | - | |
| Transistor Type | - | |
| Package / Case | TO252-3 | |
| Power Dissipation | 110W | |
| Power (Watts) | 110W | |
| Total Gate Charge | 63nC | |
| Reverse Transfer Capacitance | 250pF | |
| Breakdown voltage of grid and source | ±20V | |
| Breakdown Voltage | 55V | |
| Polarization | P-channel | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+175℃ | |
| Lead Quantity | 3Pin | |
| Height | 2.39mm | |
| L x W/Size | 6.73 x 6.22mm | |
| Certification | RoHS | |
| Country of Origin | Germany | |
| Original Manufacturer | Infineon Technologies AG | |
| Brand | Infineon | |
| Technical Route | MOSFET (Metal Oxide) | |
| Rdson (Maximum) For Different Ids And Vgs | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Series | HEXFET® | |
| Part Status | Active |
