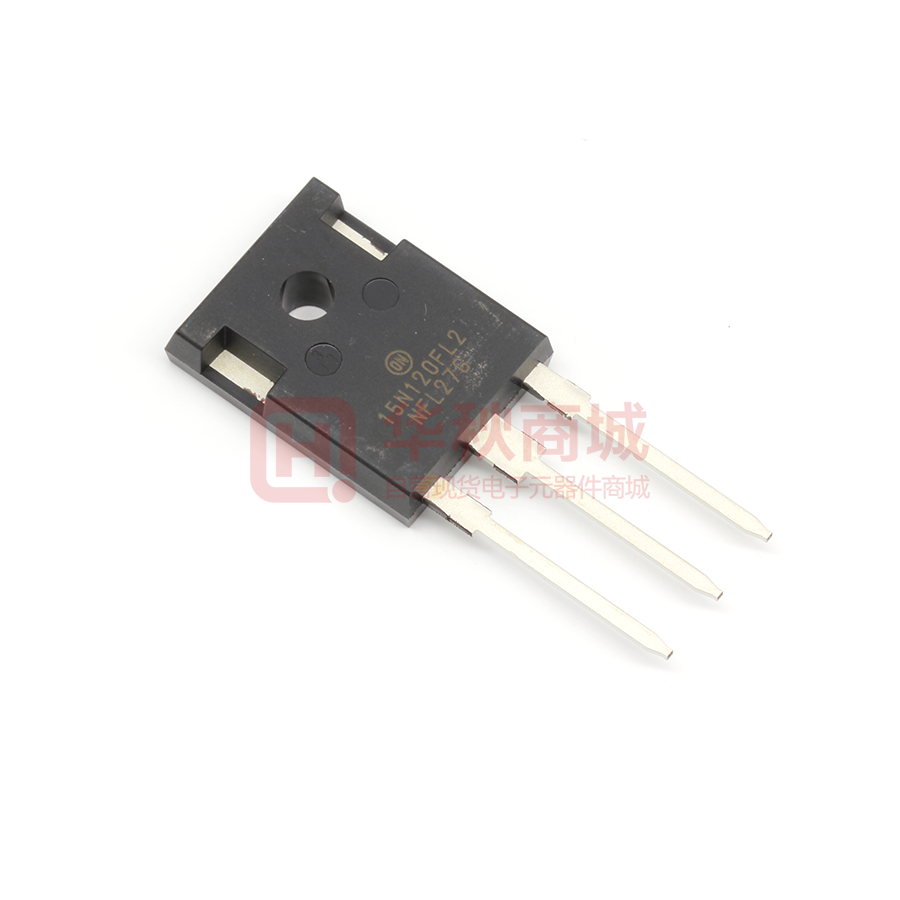

Images are for reference only
NGTB15N120FL2WG
- Mfr Part #NGTB15N120FL2WG
- ManufacturerON
- HQ Part #DS0108429
- PackageTO-247-3
- Lead Time Ship immediately
Description294W -55℃~+175℃@(Tj) 30A 1200V Trench Field Stop 60A 0.37mJ 1.2mJ TO-247-3 IGBTs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Operating Temperature | -55~+175℃ | |
| Installation Type | DIP | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 1.2KV | |
| Transistor Type | - | |
| Package / Case | TO247-3 | |
| Collector Current Ic | 30A | |
| Power Dissipation | 294W | |
| Collector- Emitter Voltage VCEO | 1.2KV | |
| Turn-on Energy | 1.2mJ | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+175℃ | |
| Lead Quantity | 3Pin | |
| Height | 25.69mm | |
| L x W/Size | 16.25 x 5.30mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Brand | ON | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Part Status | Active |
