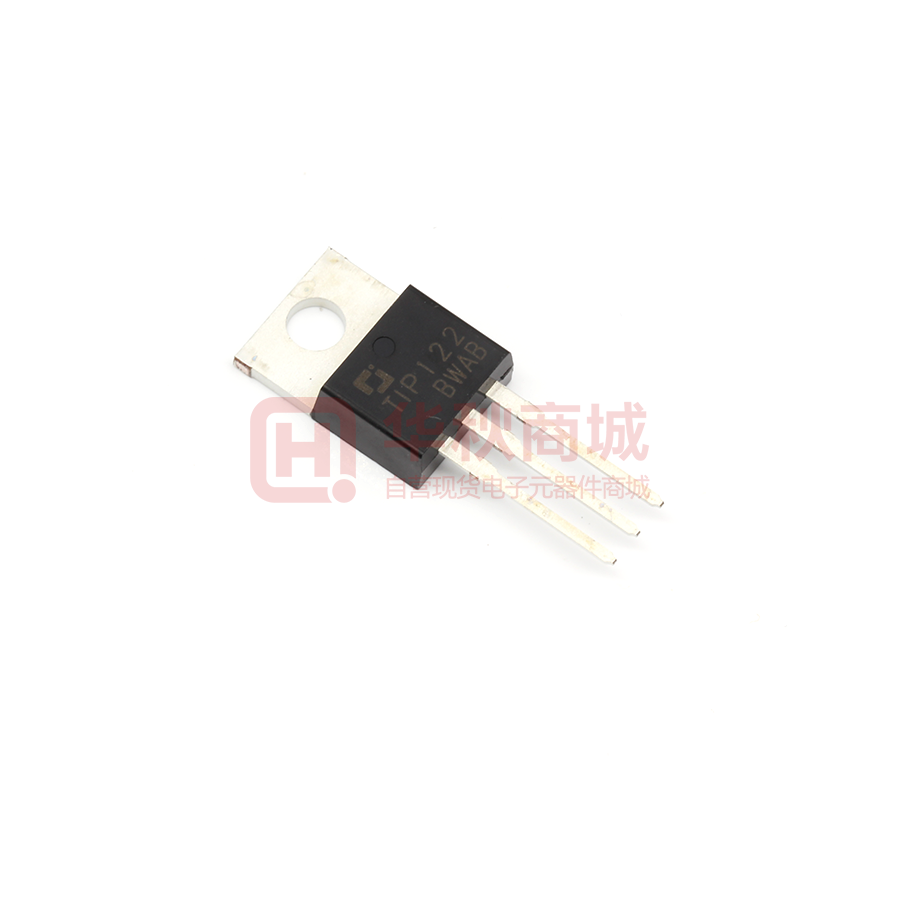

Images are for reference only
TIP122 1000-12000
- Mfr Part #TIP122 1000-12000
- ManufacturerJCET
- HQ Part #DS0144653
- PackageTO-220-3
- Lead Time Ship immediately
DescriptionTO220-3L Plastic-Encapsulate Transistors 100V 5A
- Customer #
- Datasheet -
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Operating Temperature | -55~+150℃ | |
| Installation Type | DIP | |
| Collecting Emitter Breakdown Voltage Vce (Max) | 100V | |
| Collector Current Ic | 5A | |
| Power Dissipation | 2W | |
| Power (Watts) | 2W | |
| Collector- Emitter Voltage VCEO | 100V | |
| Emitter-Base Voltage VEBO | 5V | |
| Collector Base Voltage (VCBO) | 100V | |
| Polarization | NPN | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 19.30mm | |
| L x W/Size | 10.31 x 4.67mm | |
| Country of Origin | China | |
| Original Manufacturer | Jiangsu Changjing Electronics Technology Co., Ltd. | |
| Brand | JSCJ | |
| Part Status | Active |
