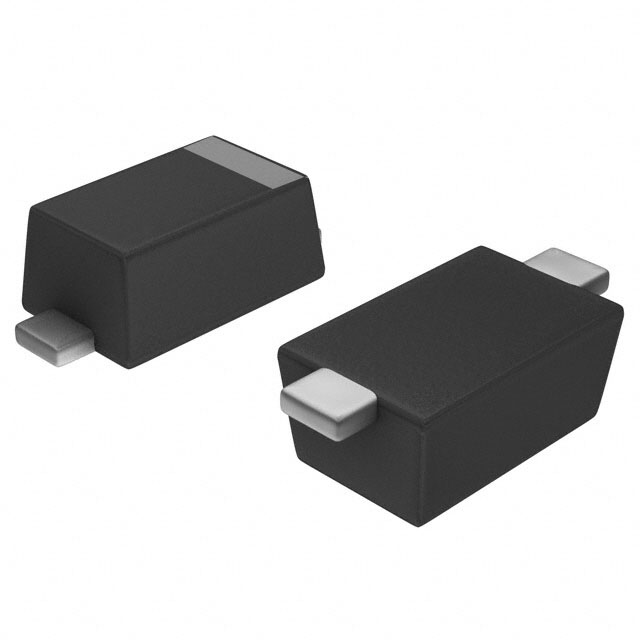

Images are for reference only
BZT52H-B24,115
- Mfr Part #BZT52H-B24,115
- ManufacturerNexperia
- HQ Part #DS0042972
- PackageSOD123F
- Lead Time Ship immediately
Description50nA@16.8V 30Ω Single 23.5V~24.5V 830mW SOD-123F Zener Diodes ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 830mW | |
| Operating Temperature | -65℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Forward Voltage Drop Vf | 900mV | |
| Reverse Leakage Current Ir | 50nA | |
| Package / Case | SOD123F | |
| Installation Type | SMT | |
| Zzt impedance | 30Ω | |
| Forward Voltage VF Max | 900mV | |
| Izt-Test Current | 5mA | |
| Standard Voltage Regulator | 24V | |
| The Tolerance Of The Reference Voltage | ±2% | |
| Application Level | AEC-Q101 | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 2pin | |
| Height | 1.20mm | |
| L x W/Size | 2.60 x 1.60mm | |
| Certification | AEC-Q101 | |
| Printing Code | E3 | |
| Country of Origin | China | |
| Original Manufacturer | Nexperia Semiconductor Co., Ltd. | |
| Brand | Nexperia | |
| Application | - | |
| Forward Current | 250mA | |
| Series | BZT52H | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
