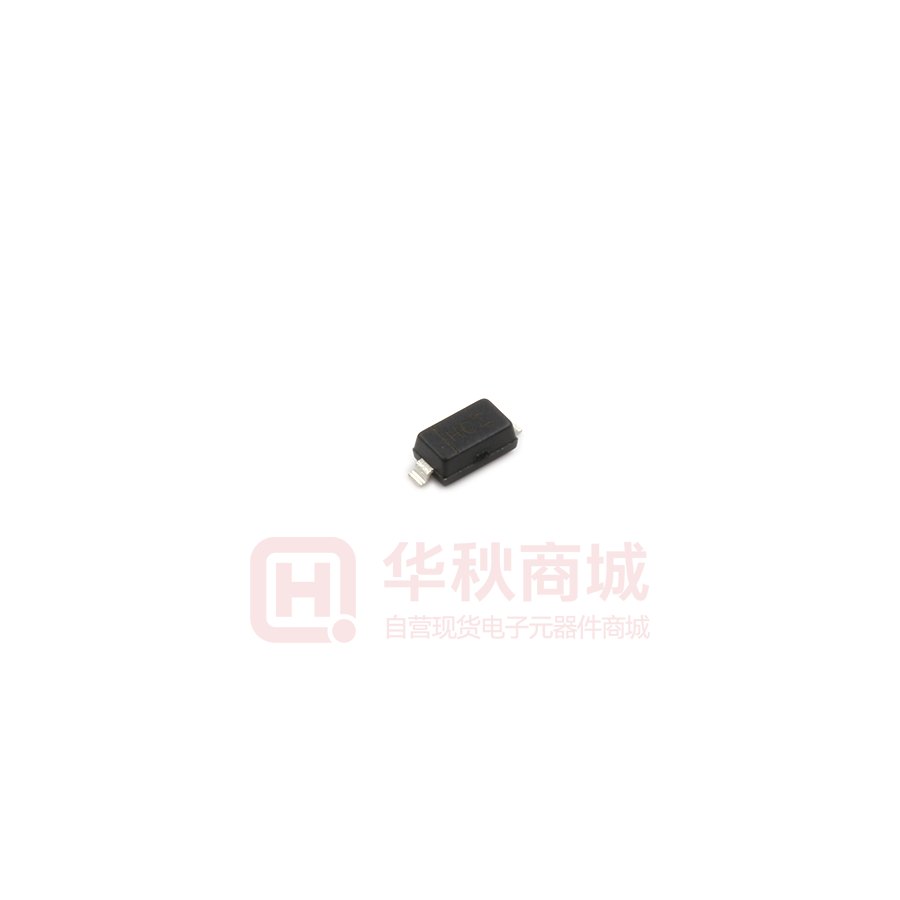

Images are for reference only
DDZ9684-7
- Mfr Part #DDZ9684-7
- ManufacturerDIODES
- HQ Part #DS0042029
- PackageSOD-123
- Lead Time Ship immediately
Description7.5uA@1.5V Single 3.13V~3.47V 500mW 3.3V SOD-123 Zener Diodes ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 500mW | |
| Diode Configuration | Single | |
| Operating Temperature | -65℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Forward Voltage Drop Vf | 900mV | |
| Reverse Leakage Current Ir | 7.5µA | |
| Package / Case | SOD123 | |
| Installation Type | SMT | |
| Zzt impedance | OriginalΩ | |
| Forward Voltage VF Max | 900mV | |
| Maximum Voltage Regulator | 3.47V | |
| Minimum Voltage Regulator | 3.13V | |
| Standard Voltage Regulator | 3.3V | |
| Partlife Cycle | Active | |
| Application Level | AEC-Q101 | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 2pin | |
| Height | 1.35mm | |
| L x W/Size | 2.65 x 1.55mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Series | DDZ9684 | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
