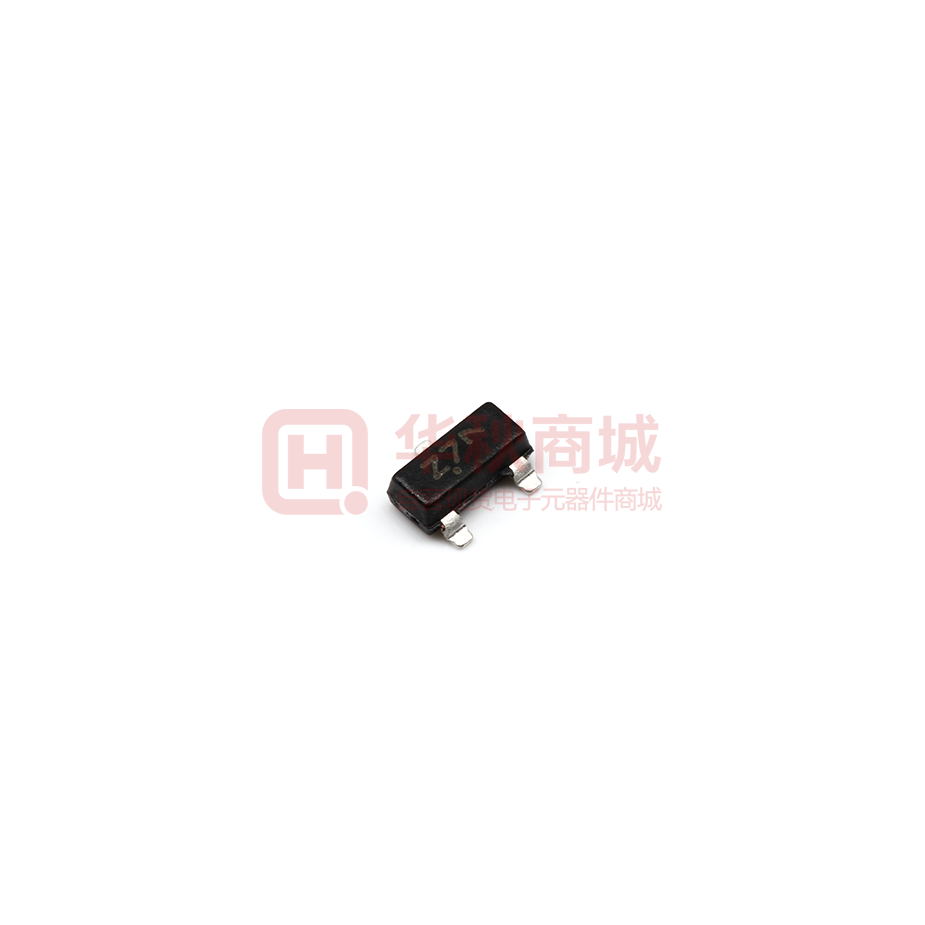

Images are for reference only
BZX84C8V2LT1G
- Mfr Part #BZX84C8V2LT1G
- ManufacturerON
- HQ Part #DS0038836
- PackageSOT-23
- Lead Time Ship immediately
DescriptionZener / Zener Diodes Vz=8.2V 7.7V~8.7V Izt=5mA P=250mW SOT23
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 250mW | |
| Diode Configuration | Single | |
| Operating Temperature | -65℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Reverse Withstand Voltage Vr | 5V | |
| Forward Voltage Drop Vf | 900mV | |
| Reverse Leakage Current Ir | 700nA | |
| Installation Type | SMT | |
| Zzt impedance | 15Ω | |
| Forward Voltage VF Max | 900mV | |
| Maximum Voltage Regulator | 8.7V | |
| Minimum Voltage Regulator | 7.7V | |
| Standard Voltage Regulator | 8.2V | |
| Partlife Cycle | Active | |
| Application Level | AEC-Q100 | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.11mm | |
| L x W/Size | 3.04 x 1.40mm | |
| Certification | RoHS | |
| Printing Code | Z7 | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Brand | Onsemi | |
| Application | - | |
| Forward Current | - | |
| Series | BZX84CxxxLT1G | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
