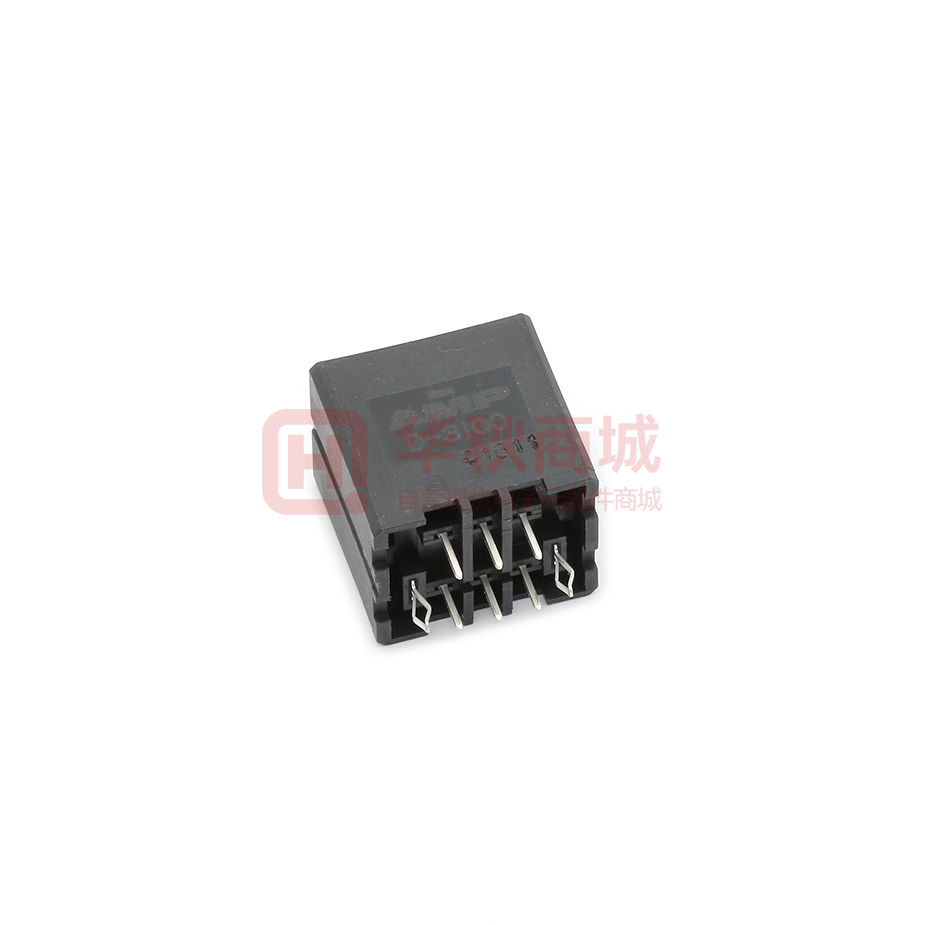

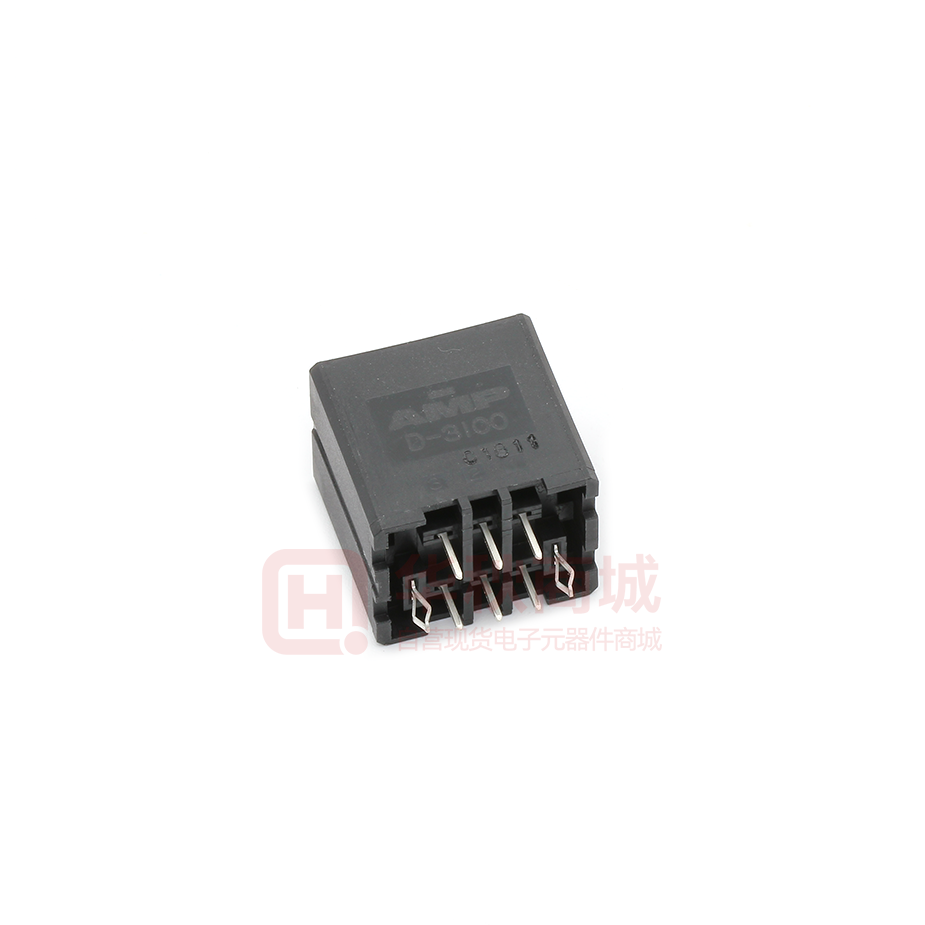

Images are for reference only

1-178141-5

  • Mfr Part #1-178141-5
  • ManufacturerTE
  • HQ Part #CO0824233
  • PackageAccessories_21.62X16.97MM_TM
  • Lead Time Ship immediately
  • DescriptionDYNAMIC D-3100M V.HDR 6P(3x2), XX-KEY

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Matched Line Spacing0.300"(7.62mm)
Application-
Row Spacing7.62mm
Male And Female-
Spacing3.81mm
Intrusion Protection-
Rated Voltage250V
Package / CaseAccessories_21.62X16.97MM_TM
Contact Material -
Characteristic-
Rated Current9.5A
Operating Temperature-55~+105℃
Flammability Grade Of MaterialsUL94V-0
Contact Coating Thickness2.00um
Contact Coating-
TerminationSolder
Installation TypeDIP
Contact Type-
Number of Rows2
Number of Positions6Pin
Connector Type-
Style-
Mounting OrientationVertical
Connector SystemLine to board
Partlife CycleActive
Country of OriginSwitzerland
Size21.62 x 16.97mm
ManufacturerTE Connectivity
Height21.60mm
Part Status-
SeriesDynamic D-3100
Manufacturer'S Standard Lead Time-
Lead Free Or NotYes
Moisture Sensitivity Level (MSL)-
Colour-
