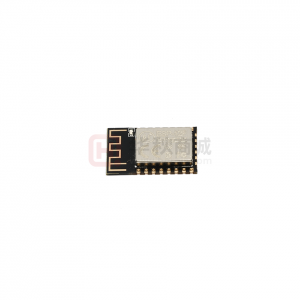

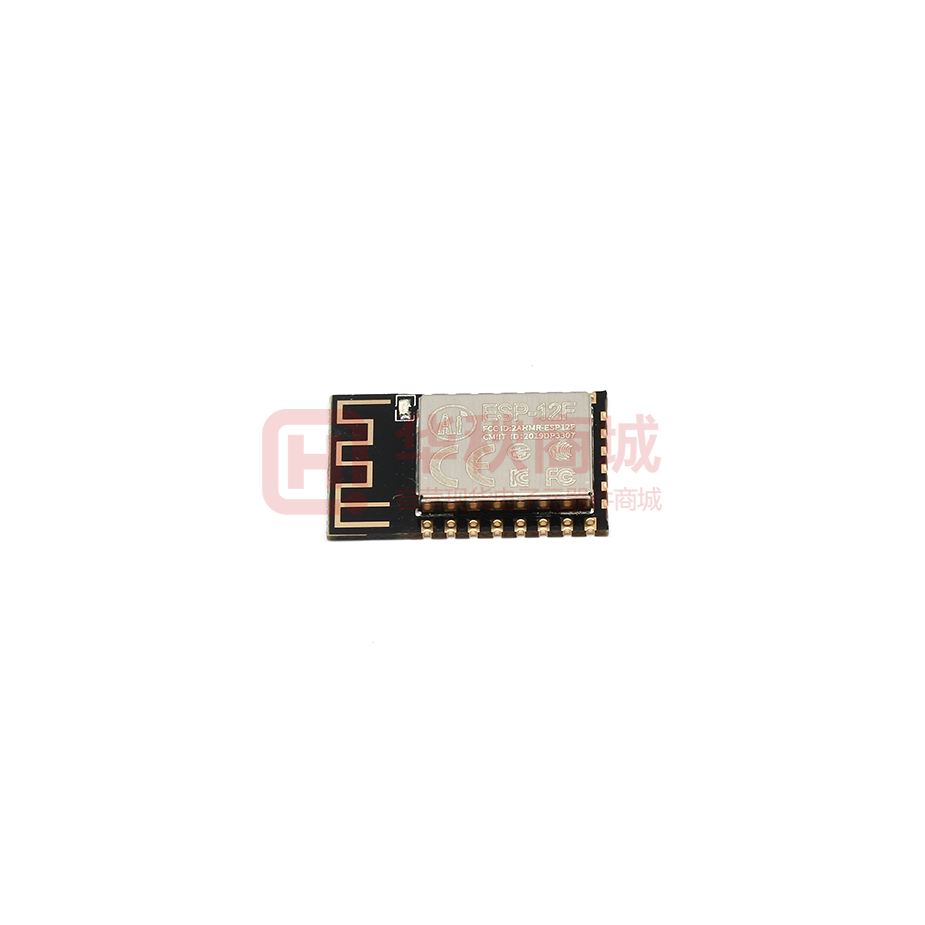

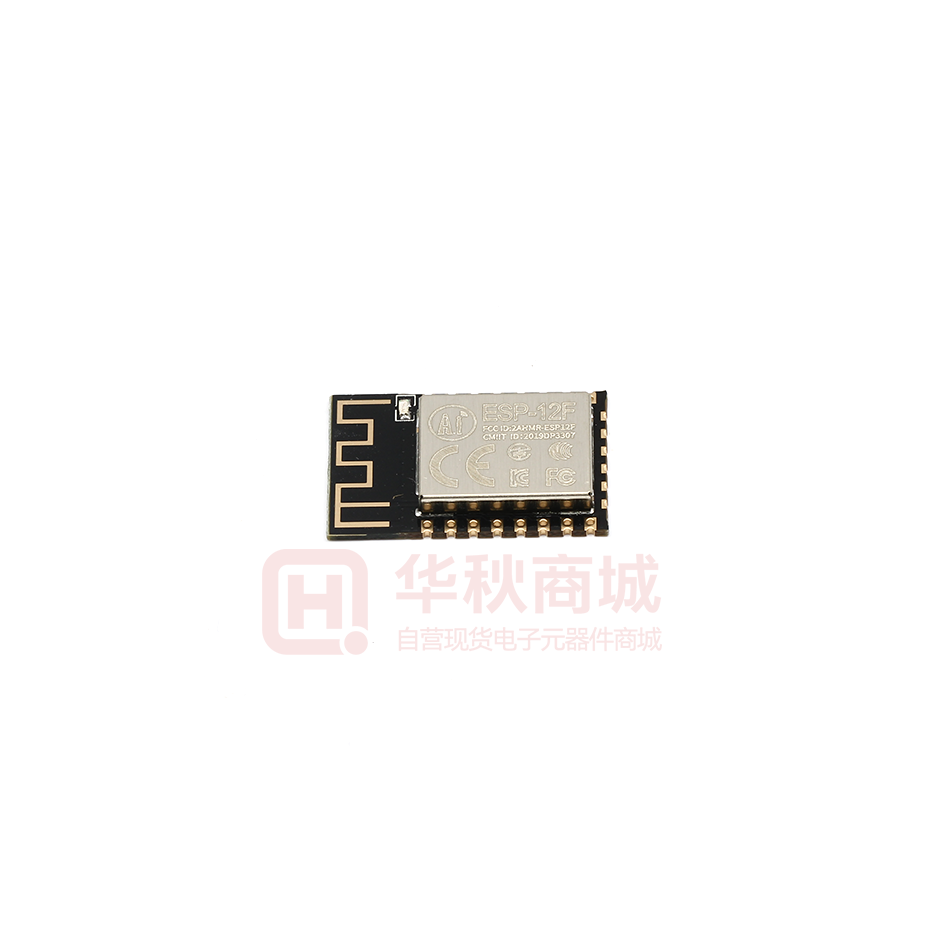

Images are for reference only
ESP-12F(ESP8266MOD)
- Mfr Part #ESP-12F(ESP8266MOD)
- ManufacturerAi-Thinker
- HQ Part #RF0032911
- PackageMODULE_24X16MM_SM
- Lead Time Ship immediately
DescriptionWiFi And Bluetooth Module SMD-22 3~3.6V
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Storage Capacity | 32MB | |
| Agreement | IEEE802.11 b/g/n、TCP/IP | |
| Antenna Type | PCB antenna | |
| Rf Series/Standard | WiFi | |
| Installation Type | SMT | |
| Serial Interface | UART、GPIO、ADC、PWM | |
| Frequency | 2412 ~ 2484MHz | |
| Transmission Current | 71-500mA | |
| Operating Temperature | -20~+85℃ | |
| Supply Voltage | 3~3.6V | |
| Sensitivity | -85dBm@11 Mbps、-67dBm@65Mbps,72.2 Mbps | |
| Output Power | 15.5-17.5@ 72.2 Mbps、19.5-21.5@ 11b mode | |
| Package / Case | MODULE_24X16MM_SM | |
| Lead Quantity | 22Pins | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+85℃ | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen Ai-Thinker Technology Co., Ltd | |
| Brand | Ai-Thinker | |
| Maximum Installation Height | 3.00mm | |
| Size | 24.00 x 16.00mm | |
| Part Status | Active |
