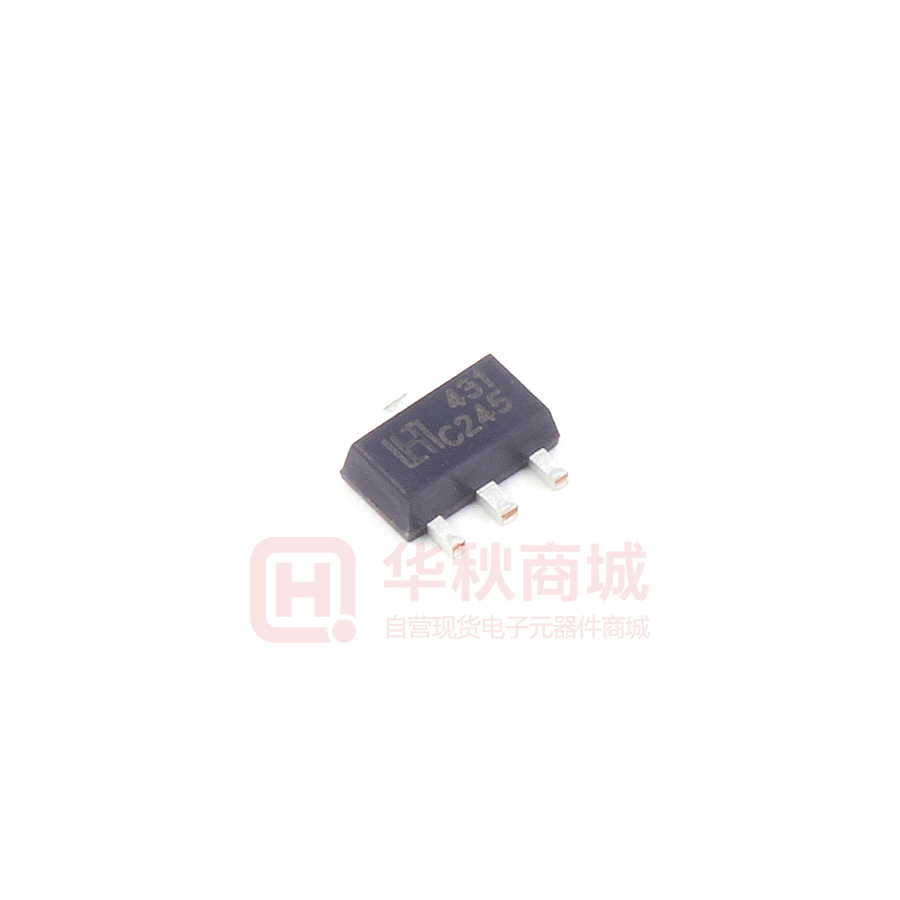

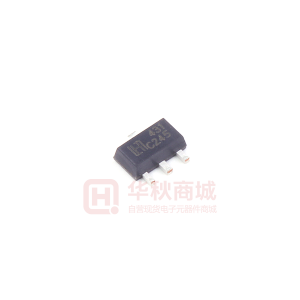

Images are for reference only
TL431CF
- Mfr Part #TL431CF
- ManufacturerHTC
- HQ Part #PM0185754

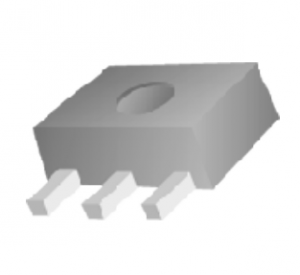

- PackageSOT89-3
- Lead Time Ship immediately
Description2.495V~40V -40℃~+125℃@(TA) 500uA 150mA Adjustable SOT-89-3 Voltage References ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 3Pins | |
| Cathode Current | 500µA | |
| Output Current | 150mA | |
| Type Of Output | Adjustable | |
| Accuracy | ±0.5% | |
| Output Voltage | 2.459~40V | |
| Package / Case | SOT89-3 | |
| Installation Type | SMT | |
| Supply Voltage | 2.495V | |
| Partlife Cycle | Active | |
| Application Level | Consumer | |
| Storage Temperature | -65~+150℃ | |
| Country of Origin | Korea | |
| Original Manufacturer | Taejin Technology Co., Ltd. | |
| Brand | HTC | |
| Height | 1.50mm | |
| Size | 4.50 x 2.50mm | |
| Operating Temperature | -40~+125℃ | |
| Series | TL431 | |
| Lead Free Or Not | Yes |
