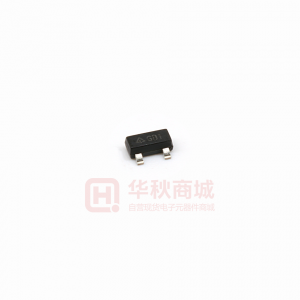

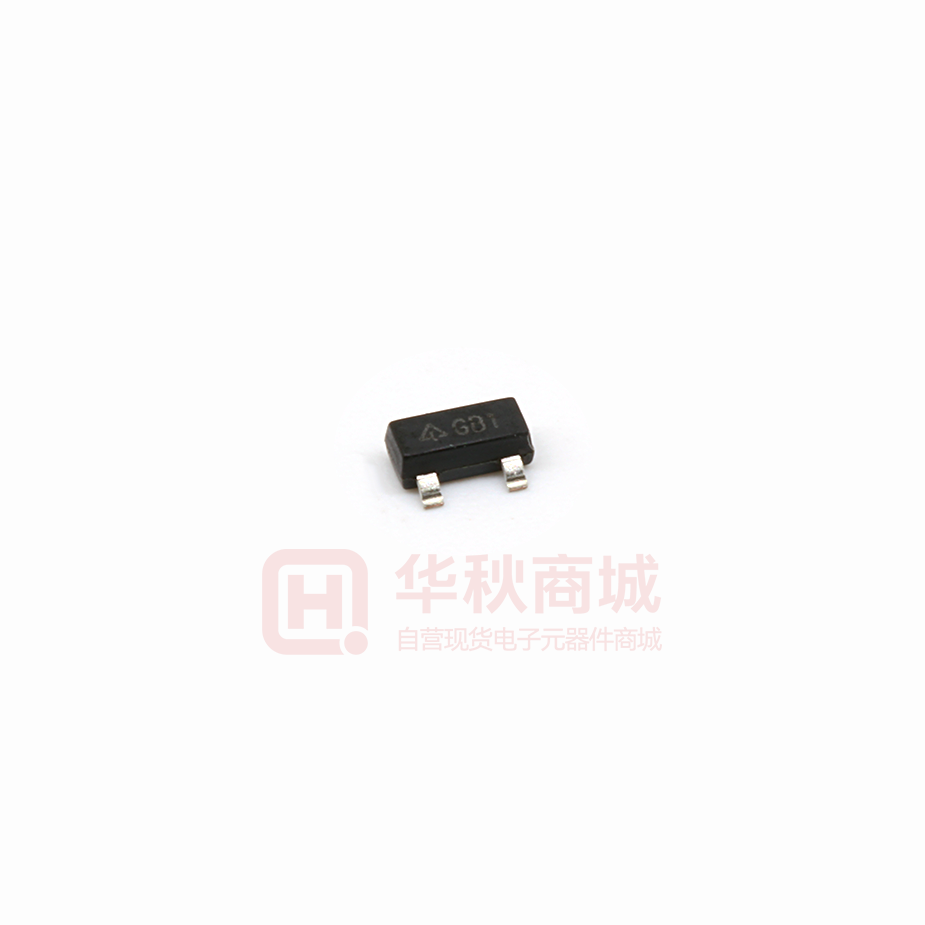

Images are for reference only
AN431AN-ATRG1
- Mfr Part #AN431AN-ATRG1
- ManufacturerDIODES
- HQ Part #IC0020242
- PackageSOT-23
- Lead Time Ship immediately
Description2.5V~36V -40℃~+125℃@(Ta) ±0.5% 1mA parallel connection 100mA 20ppm/℃ Adjustable SOT-23 Voltage References ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Cathode Current | 1mA | |
| Temperature Coefficient (Temperature Drift) | 20ppm/℃ | |
| Output Current | 100mA | |
| Reference Source Type | Shunt | |
| Type Of Output | Adjustable | |
| Operating Current | - | |
| Output Voltage | 2.5~36V | |
| Installation Type | SMT | |
| Input Voltage Range | - | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | Diodes | |
| Height | 1.10mm | |
| Size | 2.90 x 1.30mm | |
| Operating Temperature | -40~+125℃ | |
| Series | - | |
| Lead Free Or Not | Lead free/RoHS compliant |
Terms of Service
| Shipping | Delivery Period | For stock parts, orders placed on HQonline from 8:00-16:00 will be dispatched on the same day Once shipped, the transit time depends on the logistics provider you choose: DHL Express, 3-5 days FedEx International, 3-5 days China Post Airmail, 15-45 days |
| Shipping Rate | Shipping rate for your order can be found in the shopping cart. | |
| Shipping Option | We provide DHL, FedEx, and China Post Airmail shipping. | |
| Shipping Tracking | We will notify you by email with a tracking number once the order is shipped. You can also find the tracking number in the order history. | |
| Returning/Warranty | Returning | HQonline only accepts return requests due to quality issues. Return requests should be submitted within 30 days of delivery of the goods, please contact customer service for a return authorization. Parts should be unused and in original packaging. The customer has to take charge of the shipping. |
| Warranty | All HQonline purchases come with a 30-day money-back return policy, plus a 90-day HQonline warranty against any manufacturing defects. This warranty shall not apply to any item where defects have been caused by improper customer assembly, failure by the customer to follow instructions, product modification, negligent or improper operation. | |
| Ordering | How to Buy | HQonline accepts online orders. Add to cart > Check out > Submit order > Complete payment >Delivery |
| Payment | PayPal, Payoneer, Credit Card includes Visa, Master, American Express, JCB, Discover. Western Union, Bank Transfer, Payoneer, AliExpress. |
Recommended Product
3,060 In Stock
Qty
Minimum10 Mutiple10
Unit Price$ 0.0557
Ext Price$ 0
Buy Now
Pricing （USD）
| Qty | Unit Price | Ext Price |
|---|---|---|
| 10+ | $0.03078 | $0.30780 |
| 50+ | $0.02847 | $1.42350 |
| 200+ | $0.02655 | $5.31000 |
| 600+ | $0.02464 | $14.78400 |
| 1500+ | $0.02310 | $34.65000 |
| 3000+ | $0.02214 | $66.42000 |
