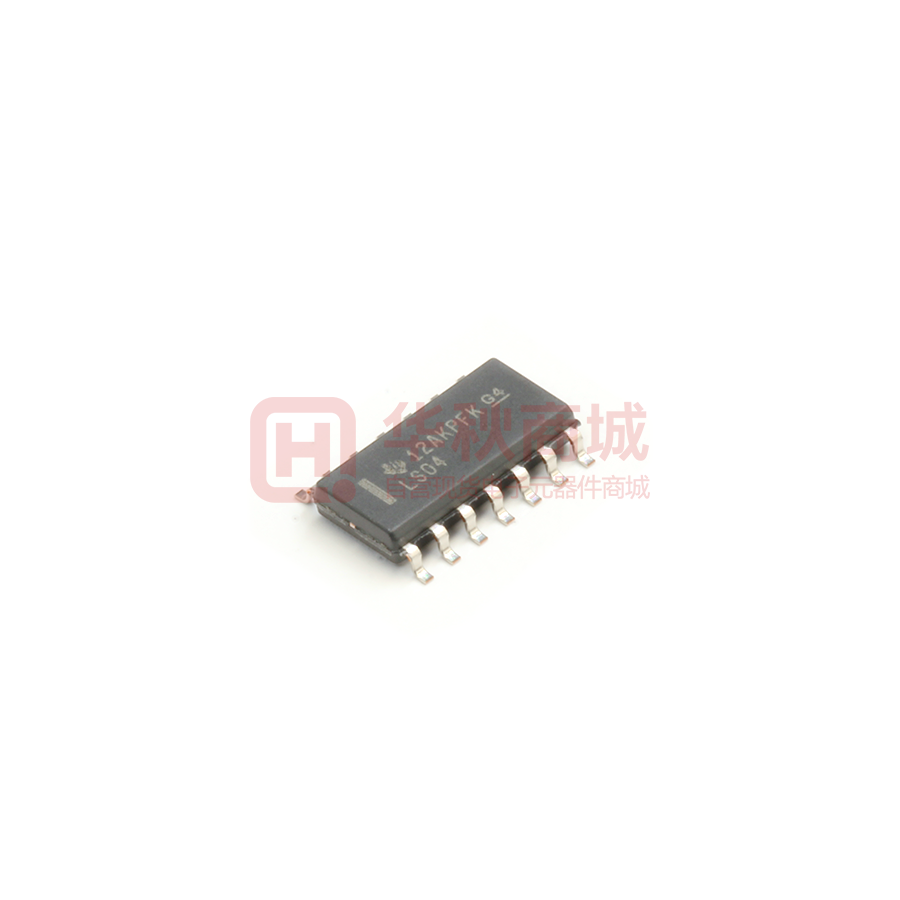

Images are for reference only

SN74LS04DR

  • Mfr Part #SN74LS04DR
  • ManufacturerTI
  • HQ Part #IC0266105
  • PackageSOIC14_150MIL
  • Lead Time Ship immediately

  • DescriptionSOIC-14 Inverters ROHS

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Logic and Time Sequence DevicesUniversal Logic Gates
Characteristic-
Quiescent Current-
High Level Range2V
Low Level Range0.8V
Logic Type-
Package / CaseSOIC14_150MIL
Installation TypeSMT
Supply Voltage4.75V~5.25V
Lead Quantity14Pin
Height1.75
L x W/Size8.65 x 3.90mm
Original ManufacturerTexas Instruments Incorporated
BrandTI
Operating Temperature0~+70℃
Part StatusActive
Series74LS
Moisture Sensitivity Level (MSL)-
