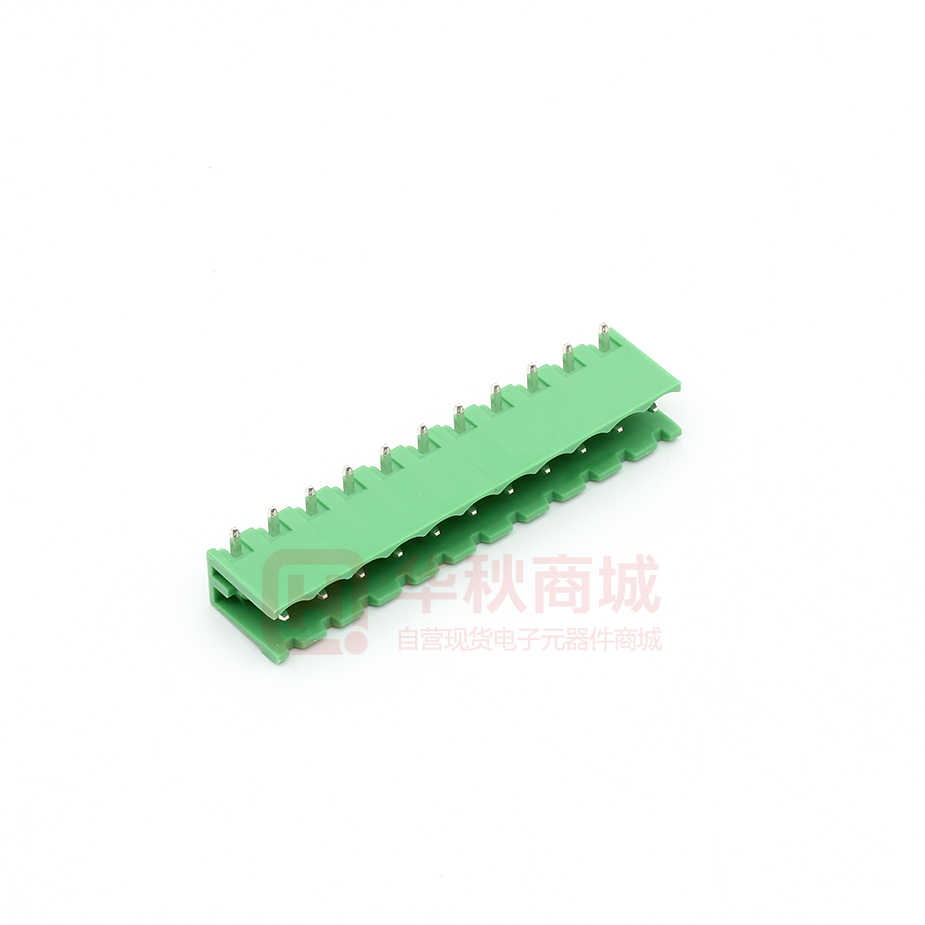

Images are for reference only
1759101
- Mfr Part #1759101
- ManufacturerPhoenix
- HQ Part #CO0516577
- PackageTERMINAL_12X55.88MM_TM
- Lead Time Ship immediately
DescriptionPlug in terminal spacing 5mm 1x11Pin bend plug tinned opening
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Application | Industrial | |
| Current - Ul | 15A | |
| Current Iec | 12A | |
| Terminal Type | - | |
| Spacing | 5.08mm | |
| Rated Voltage | 320V | |
| Package / Case | TERMINAL_12X55.88MM_TM | |
| Characteristic | - | |
| Rated Current | 12A | |
| Operating Temperature | -40~+100℃ | |
| Contact Coating Thickness | 3.00um | |
| Contact Coating | - | |
| Termination | PCB | |
| Installation Type | DIP | |
| Number of Rows | 1 | |
| Number of Positions | 11Pins | |
| Mounting Orientation | Horizontal | |
| Application Level | Industrial | |
| Connector System | CLASSIC COMBICON | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+70℃ | |
| Certification | RoHS | |
| Country of Origin | Germany | |
| Size | 12.00 x 55.88mm | |
| Manufacturer | Phoenix Contact GmbH & Co. KG | |
| Voltage - Ul | 300V | |
| Voltage Iec | 320V | |
| Height | 8.60mm | |
| Part Status | - | |
| Series | MSTB 2,5 | |
| Lead Free Or Not | Yes | |
| Moisture Sensitivity Level (MSL) | - | |
| Colour | - |
