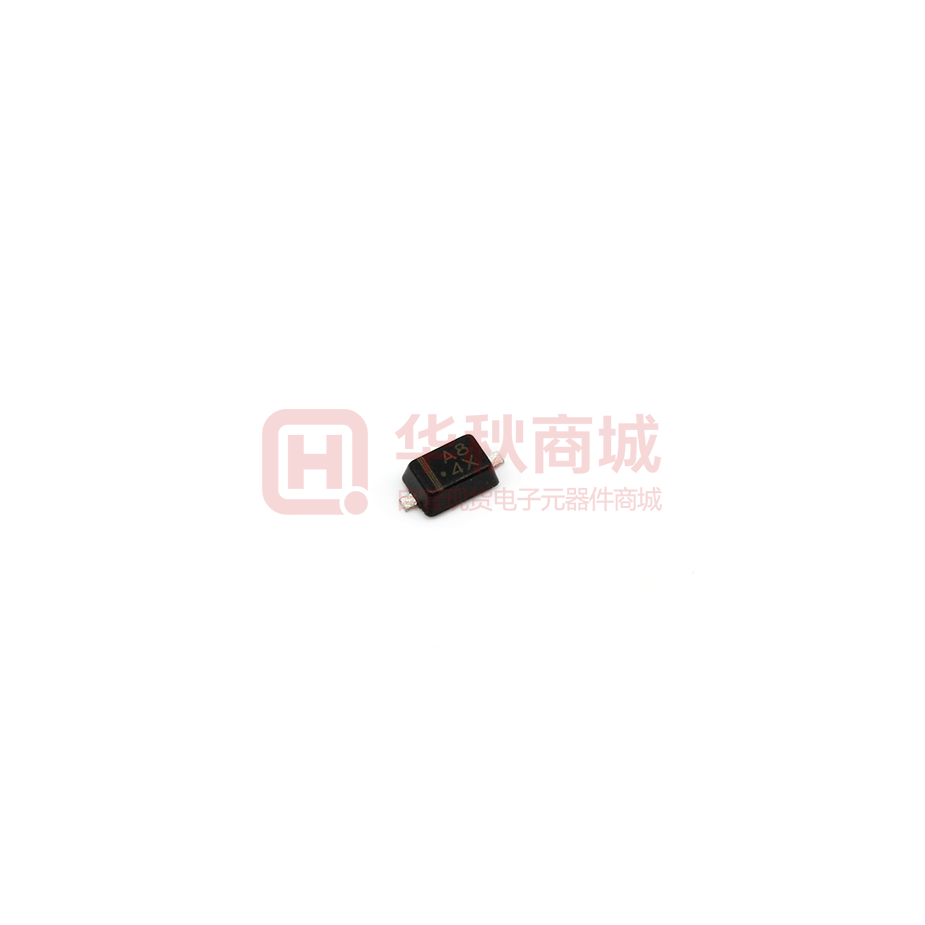

BAV19WS_R1_00001
- Mfr Part #BAV19WS_R1_00001
- ManufacturerPANJIT
- HQ Part #DS0143098
- PackageSOD323
- Lead Time Ship immediately
Description100V -55℃~+150℃@(Tj) 200mW Single 1V@100mA 50ns 100nA@100V 200mA SOD-323 Switching Diode ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 200mW | |
| Diode Configuration | Single | |
| Operating Temperature | -55℃~150℃ | |
| Reverse Withstand Voltage Vr | 100V | |
| Average Rectified Current | 200mA | |
| Forward Voltage Drop Vf | 1V | |
| Reverse Recovery Time (trr) | 50ns | |
| Reverse Leakage Current Ir | 100nA | |
| Package / Case | SOD323 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 1V | |
| Partlife Cycle | Active | |
| Lead Quantity | 2pin | |
| Height | 0.90mm | |
| L x W/Size | 1.95 x 1.35mm | |
| Certification | RoHS | |
| Country of Origin | China Taiwan | |
| Original Manufacturer | PANJIT International Inc. | |
| Brand | PANJIT | |
| Forward Current | 200mA | |
| Series | BAV19WS | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
