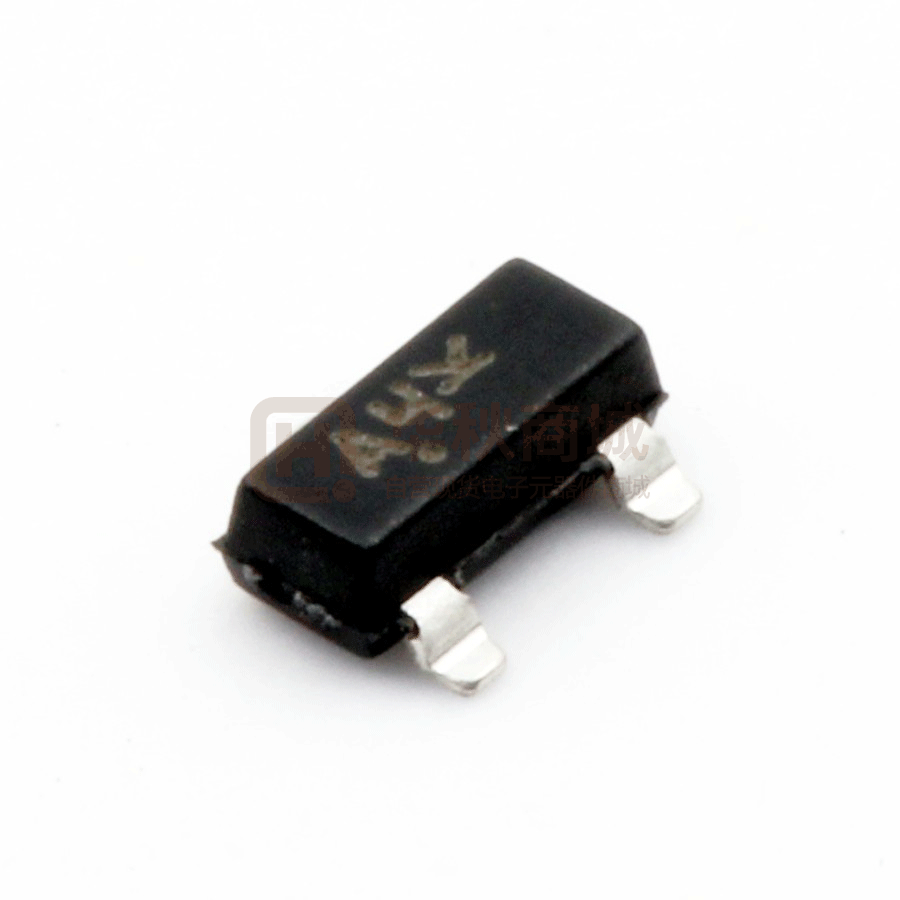

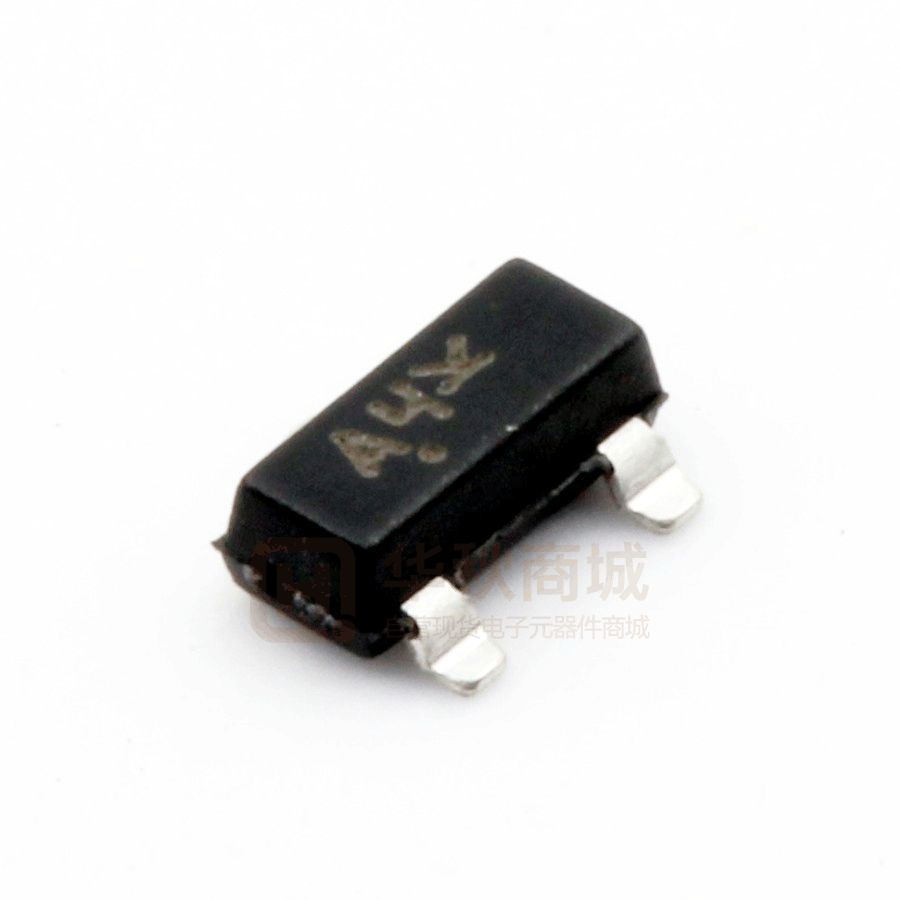

BAV70LT1G
- Mfr Part #BAV70LT1G
- ManufacturerON
- HQ Part #DS0025651
- PackageSOT-23
- Lead Time Ship immediately
Description100V -55℃~+150℃@(Tj) 300mW Dual Common Cathode 1.25V@150mA 6ns 1uA@100V 200mA SOT-23 Switching Diode ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Maximum Dissipated Power | 225mW | |
| Diode Configuration | - | |
| Operating Temperature | -55℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Diode Type | - | |
| Reverse Withstand Voltage Vr | 100V | |
| Average Rectified Current | 200mA | |
| Forward Voltage Drop Vf | 1.25V | |
| Reverse Recovery Time (trr) | 6ns | |
| Reverse Leakage Current Ir | 60µA | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 1V | |
| Ifsm - Peak Forward Surge Current | 31A | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 0.94mm | |
| L x W/Size | 2.90 x 1.30mm | |
| Country of Origin | America | |
| Original Manufacturer | ON Semiconductor Inc. | |
| Brand | ON | |
| Application | - | |
| Forward Current | 200mA | |
| Total Capacitance C | 1.5pF | |
| Series | BAV70L, SBAV70L | |
| Part Status | Active |
