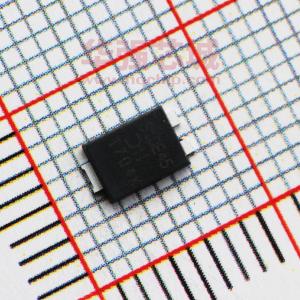

Images are for reference only
SBR10E45P5
- Mfr Part #SBR10E45P5
- ManufacturerDIODES
- HQ Part #DS0137286
- PackagePowerDI5
- Lead Time Ship immediately
DescriptionSchottky Diodes & Rectifiers
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Reverse Peak Voltage (Maximum) | 45V | |
| Operating Temperature | -55℃~150℃ | |
| Moisture Sensitivity Level (MSL) | - | |
| Reverse Withstand Voltage Vr | 45V | |
| Average Rectified Current | 10A | |
| Reverse Recovery Time (trr) | - | |
| Reverse Leakage Current Ir | 280µA | |
| Package / Case | PowerDI5 | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 470mV | |
| Forward Voltage VF Min | 420mV | |
| Ifsm - Peak Forward Surge Current | 275A | |
| Storage Temperature | -55~+150℃ | |
| Lead Quantity | 3Pin | |
| Height | 1.10mm | |
| L x W/Size | 5.37 x 3.97mm | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | DIODES | |
| Application | - | |
| Forward Current | 10A | |
| Total Capacitance C | - | |
| Series | - | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
