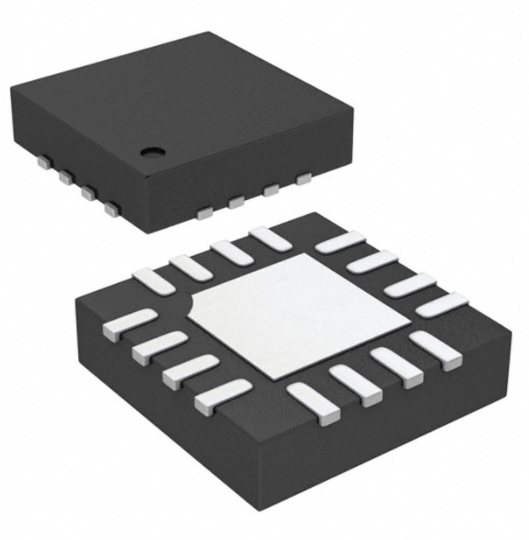

Images are for reference only

LT5522EUF#PBF

  • Mfr Part #LT5522EUF#PBF
  • ManufacturerLinear
  • HQ Part #RF0017278
  • PackageQFN16_4X4MM_EP
  • Lead Time Ship immediately
  • Description400MHz to 2.7GHz High Signal Level Downconverting Mixer

  • Customer #
  • Datasheet Datasheet
Product Attributes View Similar
TypeDescription Select
Product Type
Package / CaseQFN16_4X4MM_EP
Supply Voltage4.5~5.25V
RF Type-
Frequency400MHz~2.7GHz
Installation Type-
Gain-0.2dB
Partlife CycleActive
Storage Temperature-65~+125℃
Lead Quantity16Pins
Country of OriginAmerica
Original ManufacturerLinear Technology Corporation
BrandLinear
Size4.00 x 4.00mm
Number Of Mixers1
Current - Power68mA
Noise Figure13.9dB
Moisture Sensitivity Level (MSL)-
Lead Free Or NotYes
Height0.75mm
Part StatusActive
SeriesLT5522
