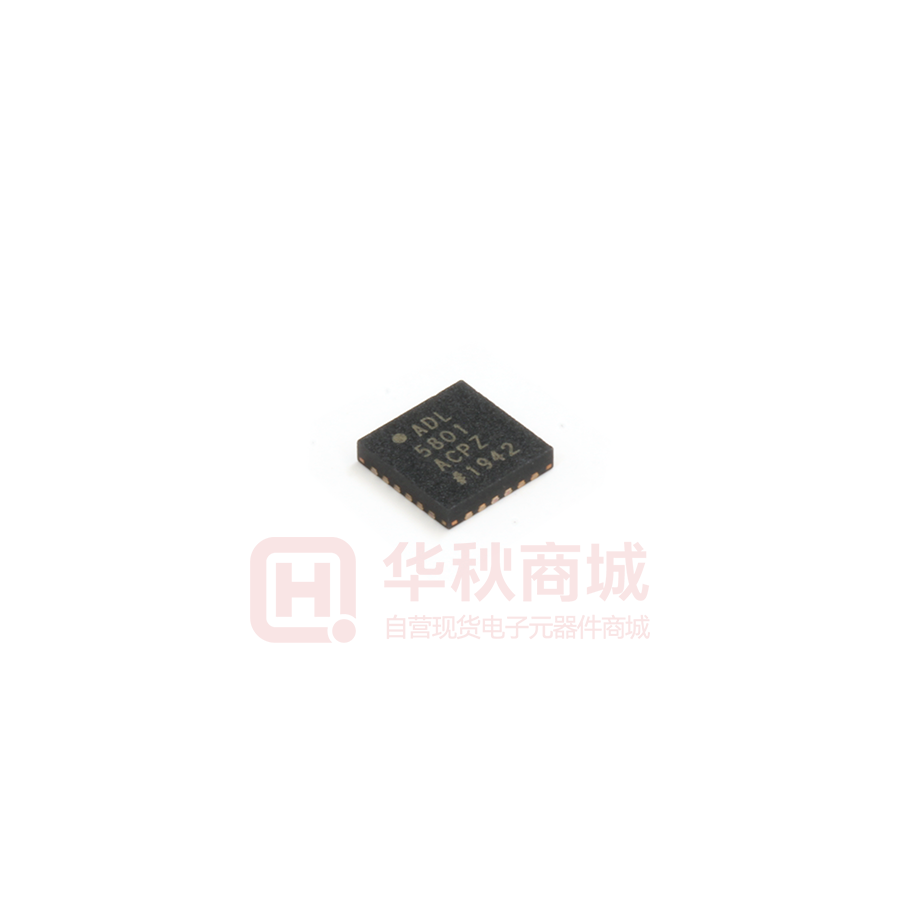

ADL5801ACPZ-R7
- Mfr Part #ADL5801ACPZ-R7
- ManufacturerADI
- HQ Part #RF0017265
- PackageLFCSP24_4X4MM_EP
- Lead Time Ship immediately
Description4.75V~5.25V 10MHz~6GHz -40℃~+85℃ 130mA 1.8dB Cellular 9.75dB LFCSP-24 RF Mixers ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | LFCSP24_4X4MM_EP | |
| Supply Voltage | 4.75~5.25V | |
| RF Type | - | |
| Frequency | 10MHz~6GHz | |
| Installation Type | - | |
| Gain | 1.8dB | |
| Supply Voltage Max | 5.25V | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 24Pins | |
| Supply Voltage Min | 4.75V | |
| Country of Origin | America | |
| Original Manufacturer | Analog Devices, Inc. | |
| Brand | ADI | |
| Size | 4.00 x 4.00mm | |
| Number Of Mixers | 1 | |
| Current - Power | 130mA | |
| Noise Figure | 9.75dB | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes | |
| Height | 0.032"（0.80mm） | |
| Part Status | Active | |
| Series | - |
