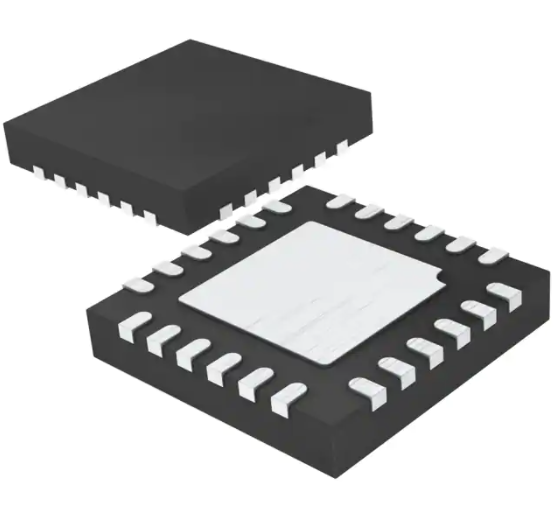

Images are for reference only
LTC5584IUF#PBF
- Mfr Part #LTC5584IUF#PBF
- ManufacturerLinear
- HQ Part #RF0018174
- PackageQFN24_4X4MM_EP
- Lead Time Ship immediately
Description30MHz to 1.4GHz IQ Demodulator with IIP2 and DC Offset Control
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Operating Temperature | -40°C~105°C | |
| Function | - | |
| Package / Case | QFN24_4X4MM_EP | |
| Supply Voltage | 5.5V | |
| P1dB | 12.6dB | |
| Installation Type | - | |
| Gain | 5.4dB | |
| Operating Frequency | 30~1400MHz | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 24Pins | |
| Certification | RoHS | |
| Country of Origin | America | |
| Original Manufacturer | Linear Technology Corporation | |
| Brand | Linear | |
| Size | 4.00 x 4.00mm | |
| LO Frequency | 30MHz~1.4GHz | |
| RF Frequency | 30MHz~1.4GHz | |
| Noise Figure | 9.9dB | |
| Lead Free Or Not | Yes | |
| Height | 0.75mm | |
| Part Status | Active |
