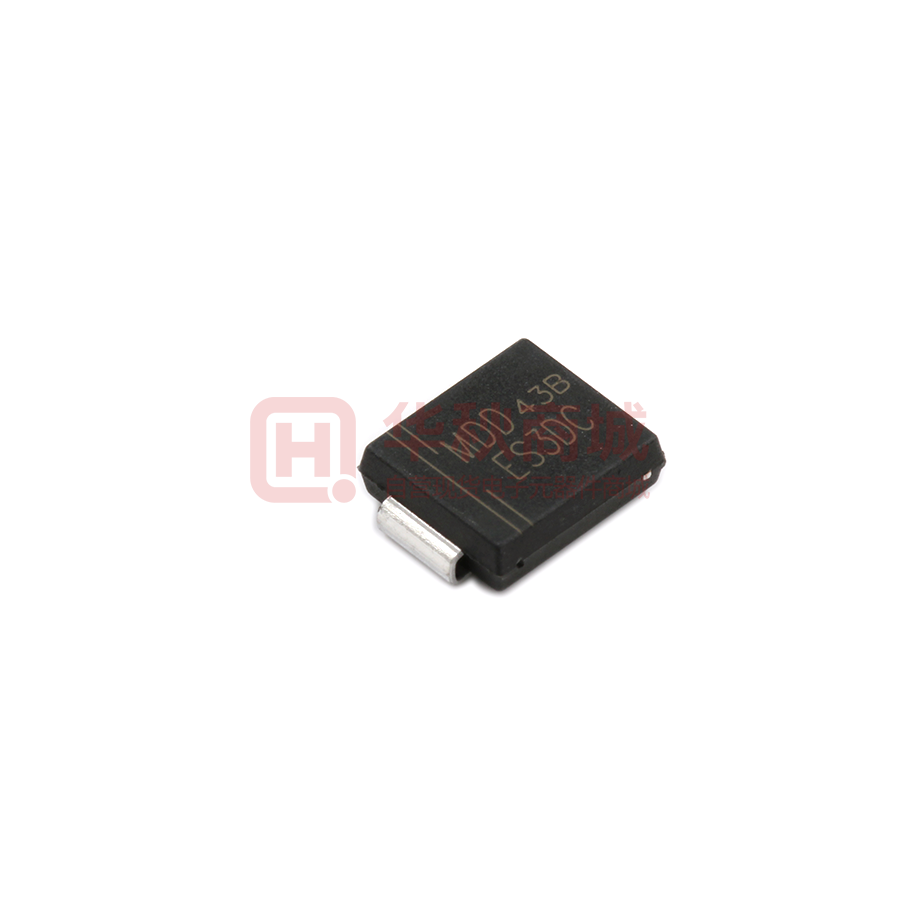

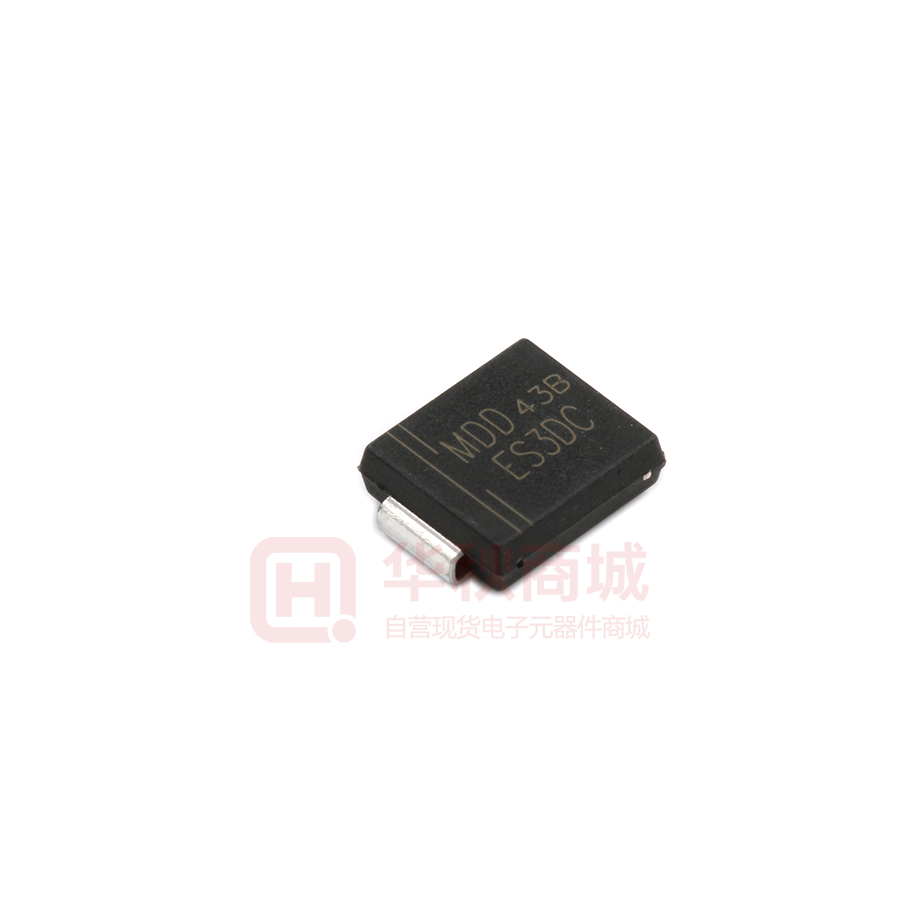

Images are for reference only
ES3DC
- Mfr Part #ES3DC
- ManufacturerMDD
- HQ Part #DS0145102
- PackageSMC(DO-214AB)
- Lead Time Ship immediately
DescriptionRectifier Diodes Voltage: 600V Current: 3A SMC(DO-214AB)
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Diode Configuration | Single | |
| Operating Temperature | -50~+150℃ | |
| Reverse Withstand Voltage Vr | 200V | |
| Average Rectified Current | 3A | |
| Forward Voltage Drop Vf | 950mV | |
| Reverse Recovery Time (trr) | 35ns | |
| Reverse Leakage Current Ir | 5μA | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 950mV | |
| Partlife Cycle | Active | |
| Lead Quantity | 2pin | |
| Height | 2.62mm | |
| L x W/Size | 7.11 x 6.22mm | |
| Country of Origin | China | |
| Original Manufacturer | Microdiode Electronics(Shenzhen)Co.,Ltd. | |
| Brand | MDD | |
| Application | Consumer | |
| Forward Current | 3A | |
| Total Capacitance C | 45pF | |
| Series | ES3AC - ES3JC | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
