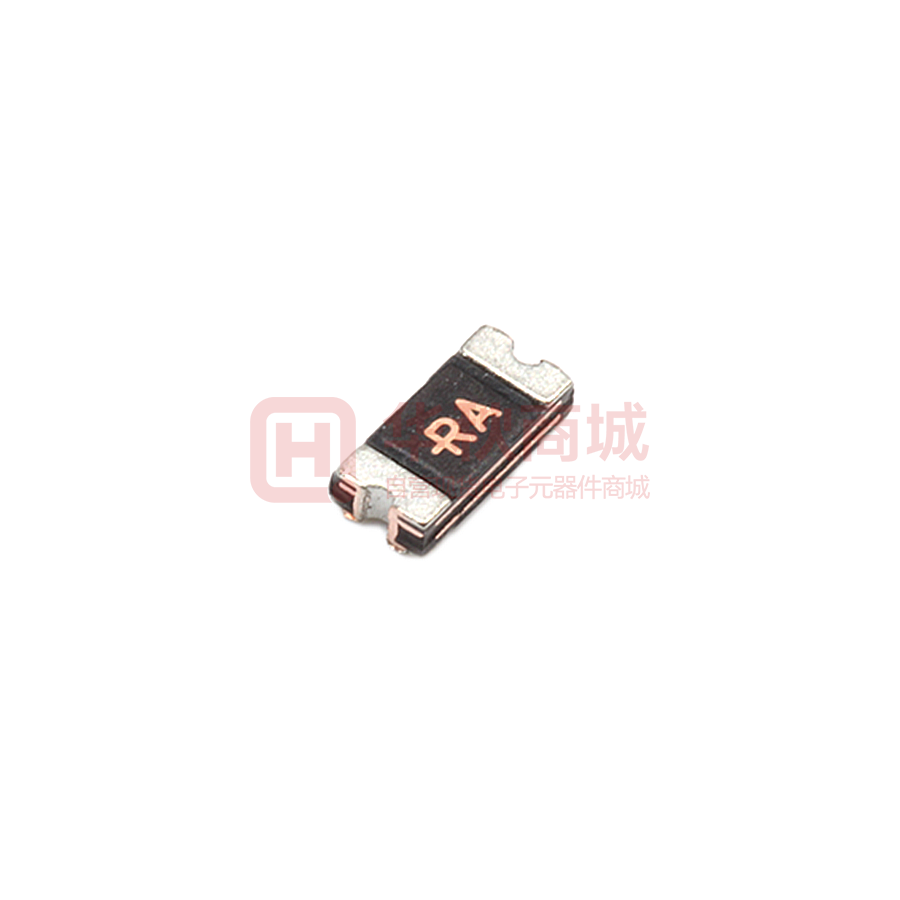

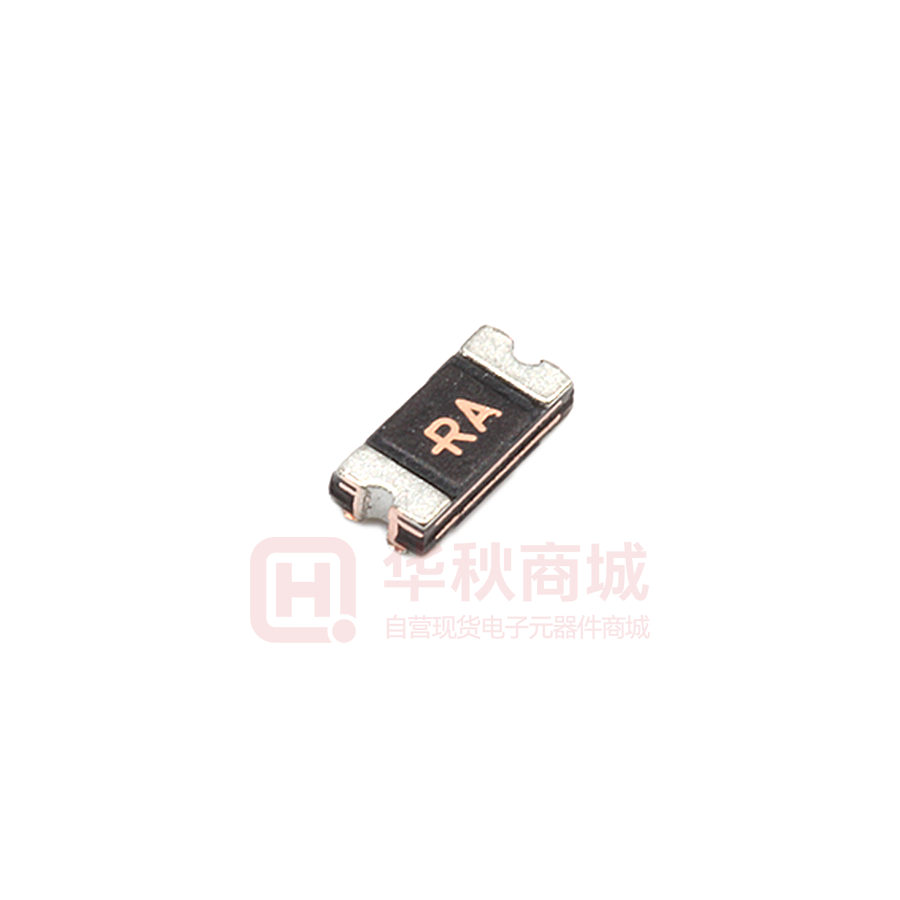

Images are for reference only
SMD1206P005TF
- Mfr Part #SMD1206P005TF
- ManufacturerRUILON
- HQ Part #PD0002394
- Package1206
- Lead Time Ship immediately
DescriptionMaximum voltage: 60V Maximum current: 10A Holding current: 50mA Trip current: 150mA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Rated Voltage-DC | 60V | |
| Resistance - Initial (Ri) (Min) | 3.6Ω | |
| Fusing Time | 1.5s | |
| Trip Action Current (It) | 150mA | |
| Holding Current | 50mA | |
| Maximum Operating Voltage(DC) | 60V | |
| Dissipated Power (Max) | 400mW | |
| Size | 3.50 x 1.80mm | |
| Height | 1.30mm | |
| Installation Type | SMT | |
| Operating Temperature | -40~+85℃ | |
| Package / Case | 1206 | |
| Lead Quantity | 2Pin | |
| Circuit Breaker | 150mA | |
| Partlife Cycle | Active | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen Ruilongyuan Electronics Co., Ltd. | |
| Brand | Ruilon | |
| Resistance After Tripping (R1) (Maximum) | 50Ω | |
| Current - Maximum | 100A | |
| Part Status | Active | |
| Series | SMD1206 | |
| Lead Free Or Not | Yes |
