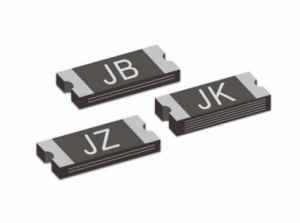

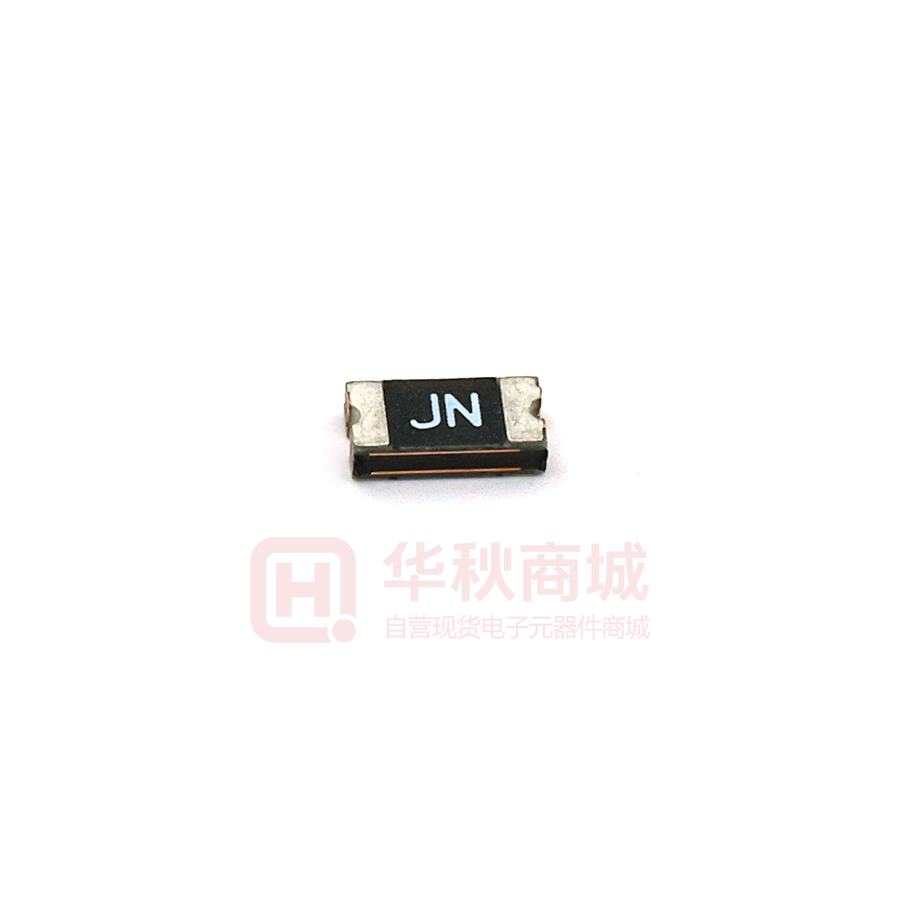

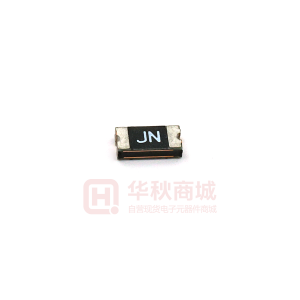

Images are for reference only
JK-NSMD010/60V
- Mfr Part #JK-NSMD010/60V
- ManufacturerJK
- HQ Part #ZHLM0349875
- Package1206
- Lead Time Ship immediately
DescriptionSurface mount PTC Self-restoring Fuse 1206 60V Maximum Current: 100A Hold current: 100mA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Rated Voltage-DC | 60V | |
| Resistance - Initial (Ri) (Min) | 1.6Ω | |
| Trip Action Current (It) | 250mA | |
| Holding Current | 100mA | |
| Maximum Operating Voltage(DC) | 60V | |
| Size | 3.50 x 1.80mm | |
| Height | 1.10mm | |
| Installation Type | SMT | |
| Operating Temperature | -40~+85℃ | |
| Package / Case | 1206 | |
| Partlife Cycle | Active | |
| Country of Origin | China | |
| Original Manufacturer | Shenzhen Jinrui Electronic Material Co.,Ltd. | |
| Brand | JK | |
| Resistance After Tripping (R1) (Maximum) | 15Ω | |
| Current - Maximum | 100A | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
