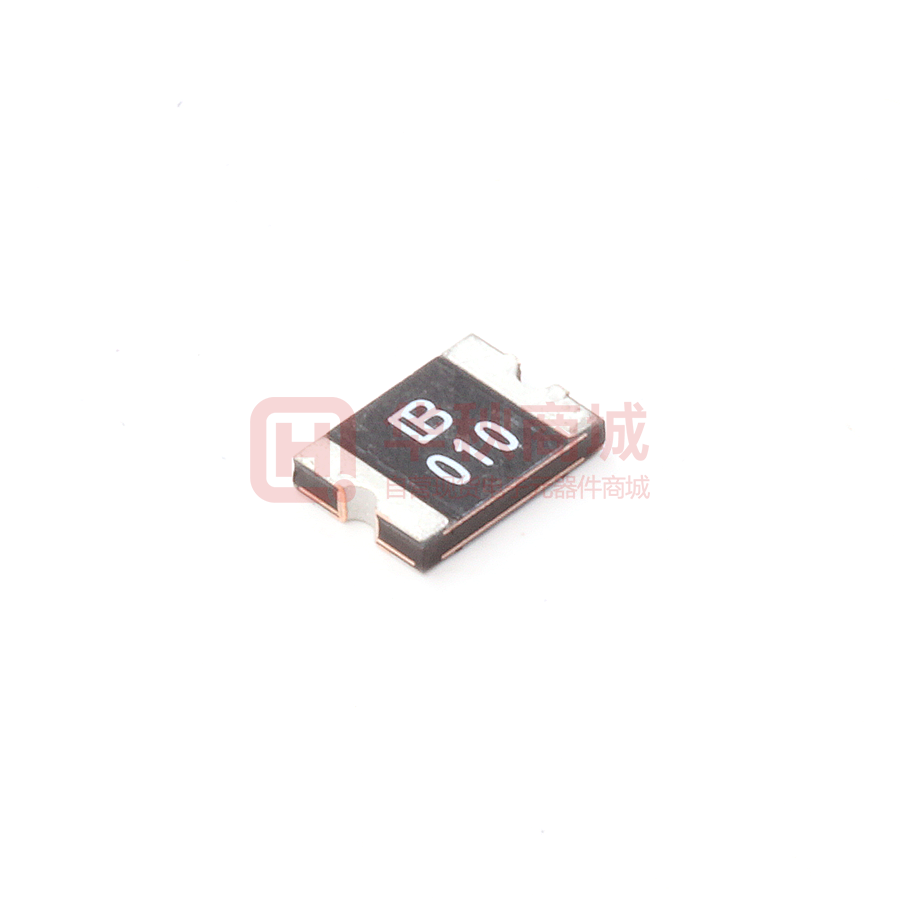

Images are for reference only
SMD1812B010TF
- Mfr Part #SMD1812B010TF
- ManufacturerBrightking
- HQ Part #PD0004733
- Package1812
- Lead Time Ship immediately
Description30V 100mA 100A 800mW -40℃~+85℃ 300mA 1.6Ω 1.5s 6Ω 1812 Resettable Fuses ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Rated Current | 100A | |
| Rated Voltage-DC | 30V | |
| Resistance - Initial (Ri) (Min) | 1.6Ω | |
| Fusing Time | 1.5s | |
| Trip Action Current (It) | 300mA | |
| Holding Current | 100mA | |
| Maximum Operating Voltage(DC) | 30V | |
| Dissipated Power (Max) | 0.8W | |
| Size | 4.55 x 3.24mm | |
| Height | 1.25mm | |
| Installation Type | SMT | |
| Operating Temperature | -40~+85℃ | |
| Package / Case | 1812 | |
| Circuit Breaker | 300mA | |
| Interrupt Current | 0.3A | |
| Partlife Cycle | Active | |
| Storage Temperature | -40~+85℃ | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong Baizhen Brightking Electronics Co., LTD | |
| Brand | Brightking | |
| Resistance After Tripping (R1) (Maximum) | 15Ω | |
| Current - Maximum | 100A | |
| Part Status | Active | |
| Series | SMD1812 |
