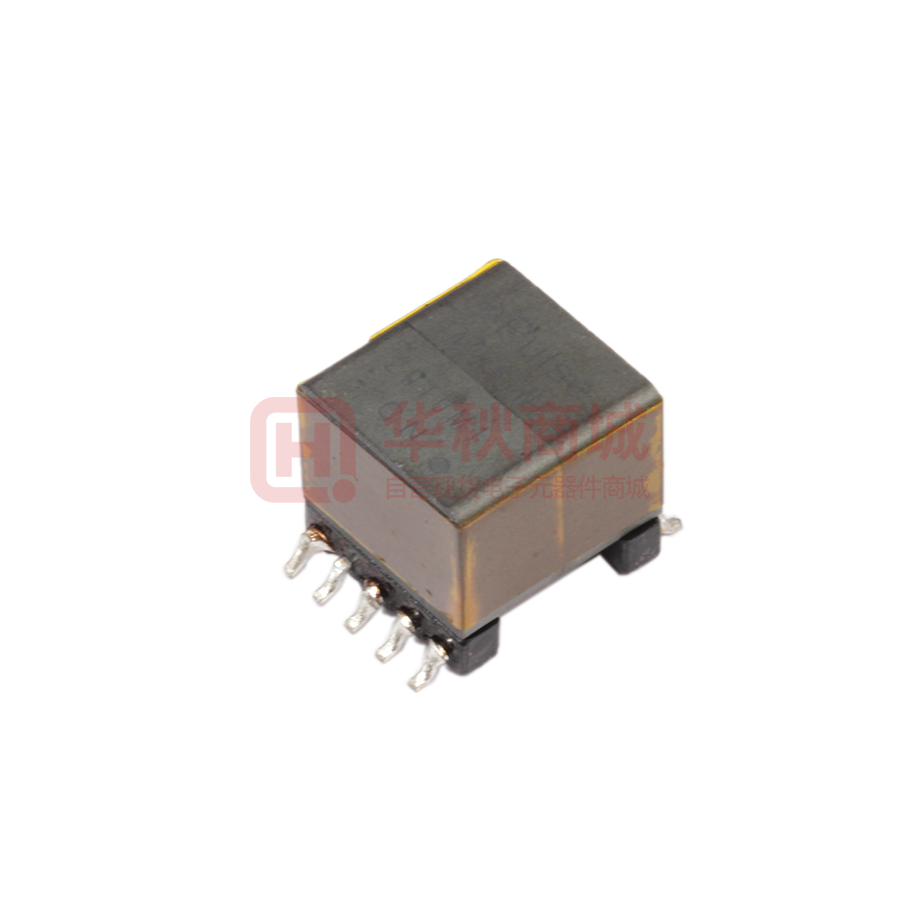

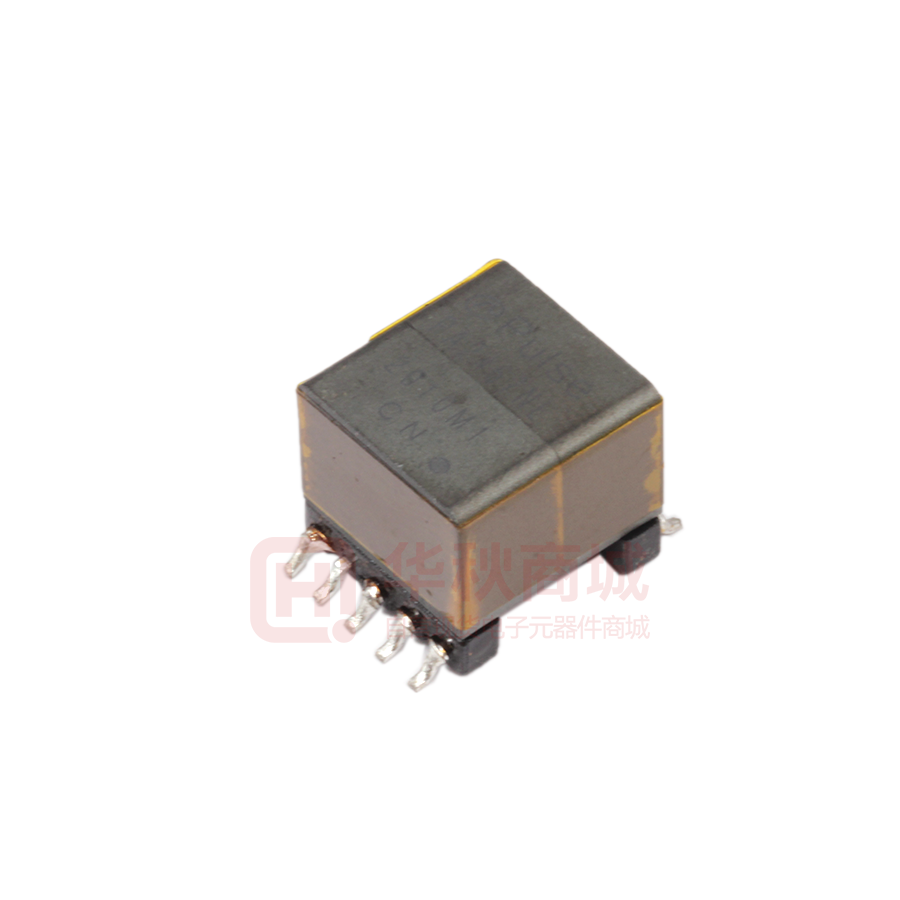

Images are for reference only
PA2467NL
- Mfr Part #PA2467NL
- ManufacturerPulse
- HQ Part #TR0009327
- PackageX-FMR-10P_13X13.11MM_SM
- Lead Time Ship immediately
DescriptionPower Transformers EP13 37V-57V Flyback SMD 25.2W
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | SMD-10 | |
| Package / Case | X-FMR_13X13.11MM_SM | |
| Dc Resistance (Dcr) - Secondary Side | 4.6mΩ | |
| Dc Resistance (Dcr) - Primary Side | 89mΩ | |
| Transformer Type | - | |
| Secondary Winding (Number Of Circuits) | - | |
| Primary Winding | - | |
| Turn Ratio (Primary: Secondary) | 2:1 | |
| Turn Ratio (Primary: Secondary) | 1:1 | |
| Reference Weight | 9.14g | |
| Maximum Installation Height | 12.32mm | |
| Maximum Installation Height | 12.70mm | |
| Size | 13.00 x 13.11mm | |
| Size | 17.70 x 14.00mm | |
| Output Current | 2.1A | |
| Leakage Inductance | 0.75µH | |
| Country of Origin | America | |
| Original Manufacturer | Pulse Electronics | |
| Brand | Pulse | |
| Part Status | - | |
| Part Status | Active | |
| Series | PA2467 | |
| Operating Temperature | -40~+130℃ | |
| Operating Temperature | -40~+130℃ | |
| Isolation Voltage | 1.5KV | |
| Isolation Voltage | 1.5KVrms | |
| Inductance | 37µH |
