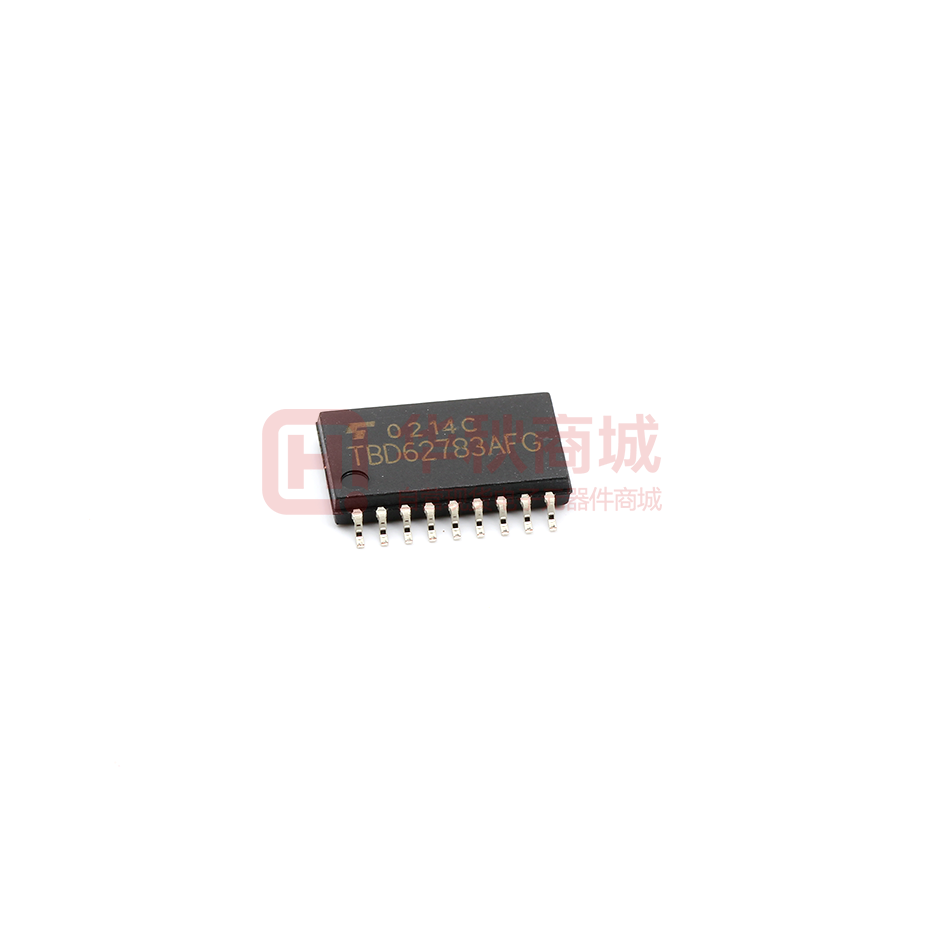

Images are for reference only
TBD62783AFG,EL
- Mfr Part #TBD62783AFG,EL
- ManufacturerToshiba
- HQ Part #IC0281751
- PackageSOP18_300MIL
- Lead Time Ship immediately
DescriptionIC PWR SWITCH P-CHAN 500mA SOP18_300MIL
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 18Pins | |
| Switch Type | General Purpose | |
| Output Current | 500mA | |
| Type Of Output | P-Channel | |
| Interface | On/Off | |
| Output Configuration | High Side | |
| Ratio (Input: Output) | 1:1 | |
| Fault Protection | - | |
| Package / Case | SOP18_300mil | |
| Installation Type | SMT | |
| Supply Voltage | - | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Country of Origin | Japan | |
| Original Manufacturer | Toshiba Corporation | |
| Brand | Toshiba | |
| Height | 2.00mm | |
| Load Voltage | 50V | |
| Size | 13.00 x 7.00mm | |
| Characteristic | - | |
| Operating Temperature | -40~+85℃ | |
| Input Type | Non-Inverting | |
| Series | - | |
| Lead Free Or Not | Lead free/RoHS compliant |
