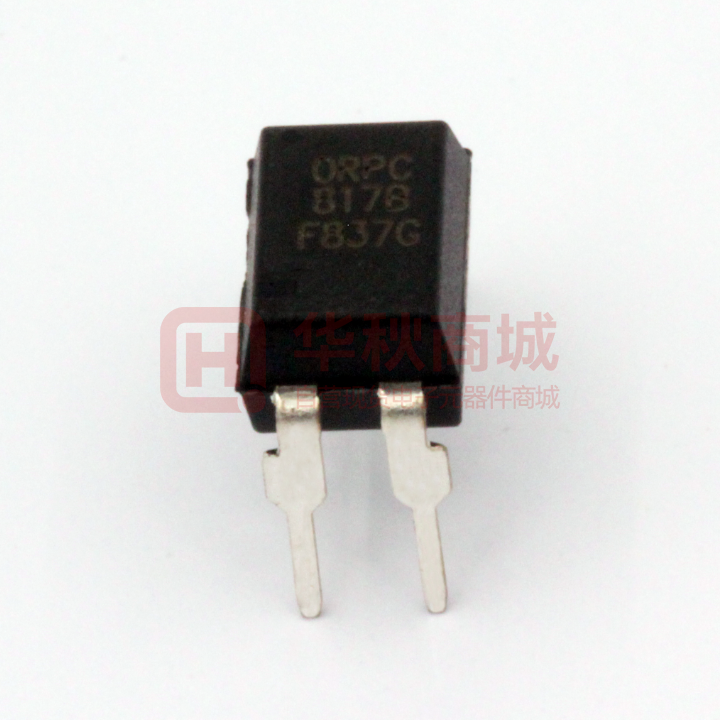

Images are for reference only
ORPC-817B
- Mfr Part #ORPC-817B
- ManufacturerOrient
- HQ Part #IS0015548
- PackageOC_6.4X4.6MM_TM
- Lead Time Ship immediately
DescriptionPhotocouplers Viso=5000Vrms VF(typ)=1.2V IF=50mA Vo=35V CTR=130~260%
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Number Of Channels | 1Channel | |
| Current Transmission Ratio | 600%@5mA | |
| Input Terminal Type | DC | |
| Type Of Output | - | |
| Power | 200mW | |
| Size | 4.60 x 6.40mm | |
| Forward Voltage (Vf) | 1.2V | |
| Package / Case | OC_6.4X4.6MM_TM | |
| Lead Quantity | 4Pins | |
| Storage Temperature | -55~+125℃ | |
| Partlife Cycle | Active | |
| Country of Origin | China | |
| Brand | Orient Tech | |
| Isolation Voltage | 5KV | |
| Part Status | Active | |
| Forward Current | 50mA |
