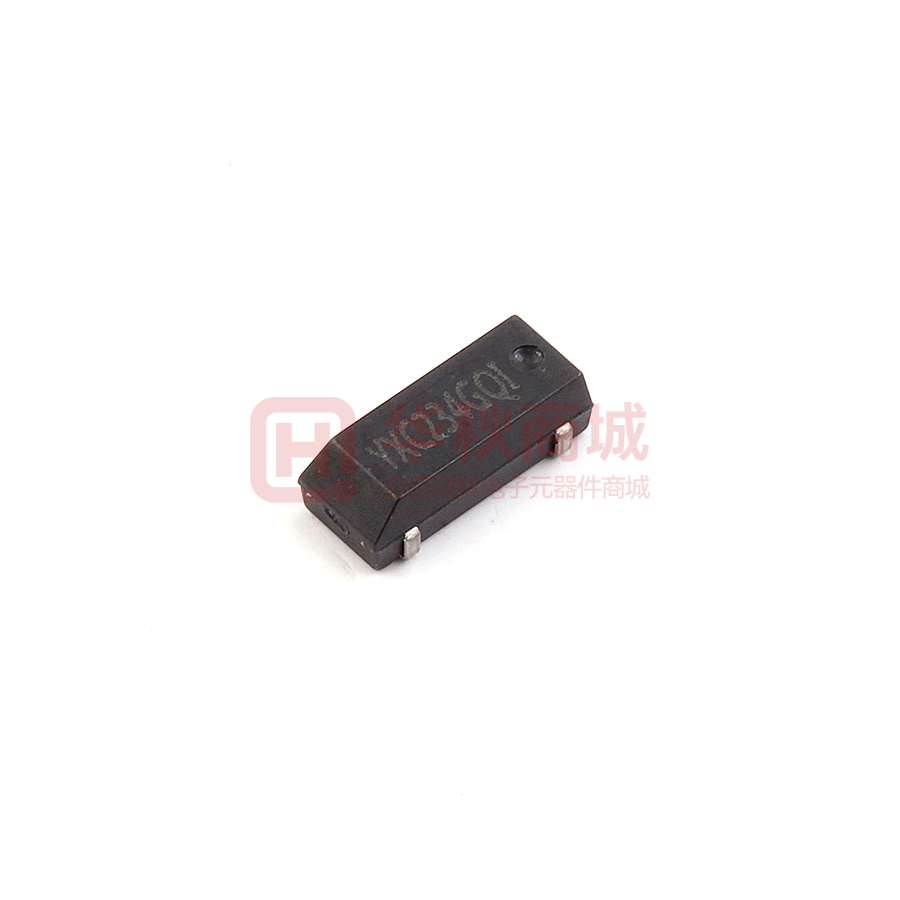

Images are for reference only
X803832768KGD4GI
- Mfr Part #X803832768KGD4GI
- ManufacturerYXC
- HQ Part #CR0251462
- PackageSMD8038_4P
- Lead Time Ship immediately
DescriptionPassive Crystal Oscillators 12.5pF 50KΩ ±20ppm -40℃~+85℃ SMD8038_4P 32.768KHz
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Annual Aging Rate | ±5ppm/year | |
| Lead Quantity | 4Pin | |
| Installation Type | SMT | |
| Frequency Error | ±20ppm | |
| Size | 8.00 x 3.20mm | |
| Package / Case | SMD8038_4P | |
| Operating Temperature | -40~+85℃ | |
| Overtone | Fundamental | |
| Material | Quartz Crystal | |
| Pb Free | Yes | |
| Application | Consumer, RTC | |
| Product State | Active | |
| Insulation Resistance | 500MΩ @ DC100V | |
| Packaging Technology | Glue sealing | |
| Drive Level | 1μW | |
| Shunt Capacitance(C0) | 2pF | |
| Special Requirement | No Special | |
| Cut Type | AT Cut | |
| Partlife Cycle | Active | |
| Output Wave | Sine Wave | |
| Carries tape Std | 16mm | |
| Storage Temperature | -55~+125℃ | |
| Certification | RoHS | |
| Marking Type | Laser | |
| Country of Origin | China | |
| Original Manufacturer | Yangxing Technology Co., Ltd. | |
| Frequency Stability | ±20ppm | |
| Series | YSX306GA | |
| Equivalent Series Resistance | 50KΩ | |
| Load Capacitance | 12.5pF | |
| Grade | Consumer | |
| Height | 2.54mm |
