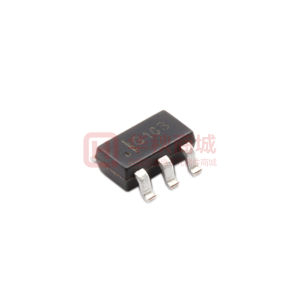

Images are for reference only
SPX3819M5-L/TR
- Mfr Part #SPX3819M5-L/TR
- ManufacturerEXAR
- HQ Part #IC0061604
- PackageSOT23-5
- Lead Time Ship immediately
DescriptionOutput Type: Adjustable Output Polarity: Positive Number of Output Channels: 1 Maximum Input Voltage: 16V Output Voltage: 1.235V~15.3V Dropout Voltage: 700mV@ (500mA) Output Current: 500mA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Lead Quantity | 5Pins | |
| Output Voltage Accuracy | ±2% | |
| Quiescent Current | 8µA | |
| Output Current | 500mA | |
| Type Of Output | Adjustable | |
| Output Configuration | Positive | |
| Operating Current | 30mA | |
| Output Voltage | 1.235V | |
| Package / Case | SOT23-5 | |
| Installation Type | SMT | |
| Number of Regulators | 1 | |
| Input Voltage Range | 16V | |
| Forward Voltage VF Max | - | |
| Power Supply Rejection Ratio(PSRR) | 70dB（120Hz） | |
| Partlife Cycle | Active | |
| Application Level | Industrial | |
| Storage Temperature | -40~+125℃ | |
| Country of Origin | America | |
| Original Manufacturer | MaxLinear | |
| Brand | MaxLinear | |
| Height | 1.15mm | |
| Size | 2.90 x 1.60mm | |
| Control Characteristics | - | |
| Operating Temperature | -40~+125℃ | |
| Series | SPX3819 | |
| Lead Free Or Not | Yes |
