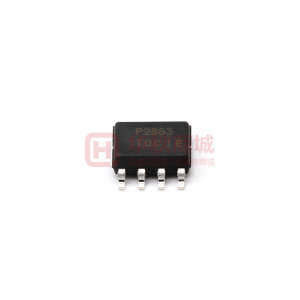

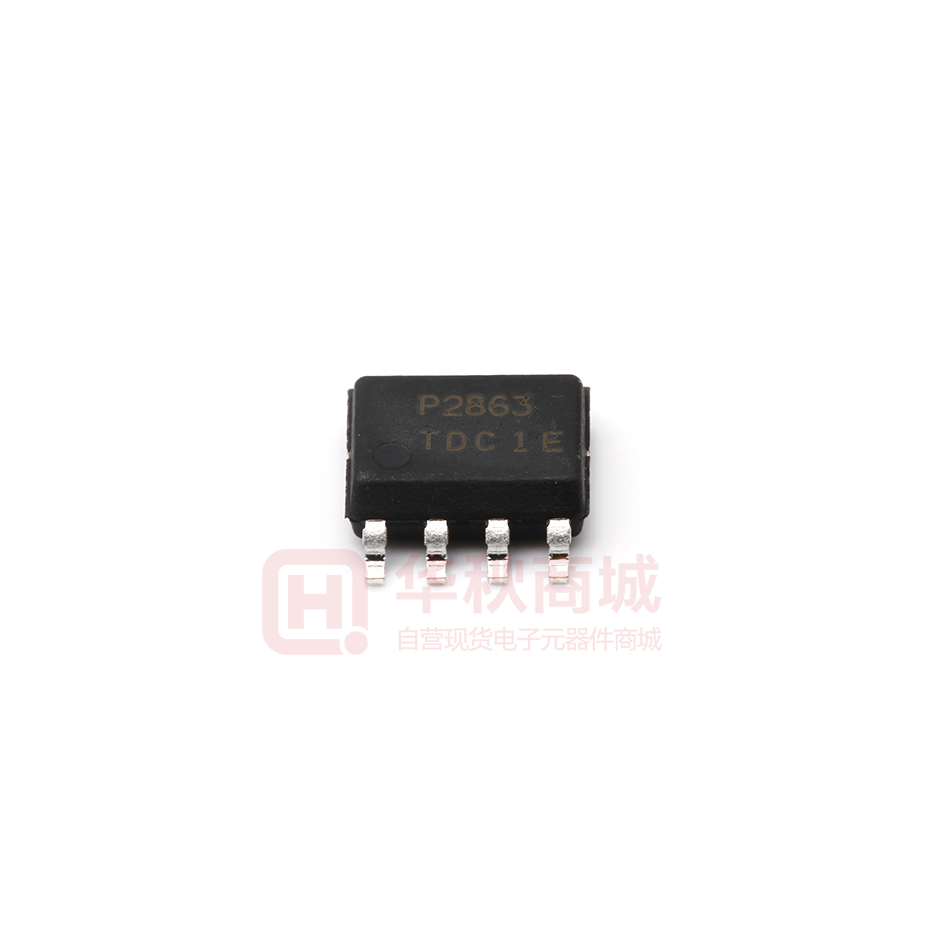

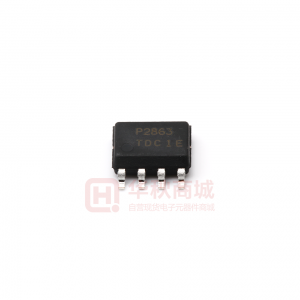

Images are for reference only
PAM2863ECR
- Mfr Part #PAM2863ECR
- ManufacturerDIODES
- HQ Part #IC0003396
- PackageSOP8_150MIL_EP
- Lead Time Ship immediately
Description-40℃~+85℃ buck 1 DC-DC,Step-down 2A 4.5V~40V SOIC-8-EP LED Drivers ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Output Current | 2A | |
| Working Frequency | 1MHz | |
| Type | DCDC Regulator | |
| Output Voltage | - | |
| Topological Structure | - | |
| Package / Case | SOP8_150MIL_EP | |
| Installation Type | SMT | |
| Supply Voltage | 40V | |
| Internal Switch | Yes | |
| Country of Origin | America | |
| Original Manufacturer | Diodes Incorporated | |
| Brand | Diodes | |
| Height | 1.75mm | |
| Size | 5.00 x 4.00mm | |
| Dimming | Analog, PWM | |
| Operating Temperature | -40~+85℃ | |
| Series | - | |
| Lead Free Or Not | Lead free/RoHS compliant |
