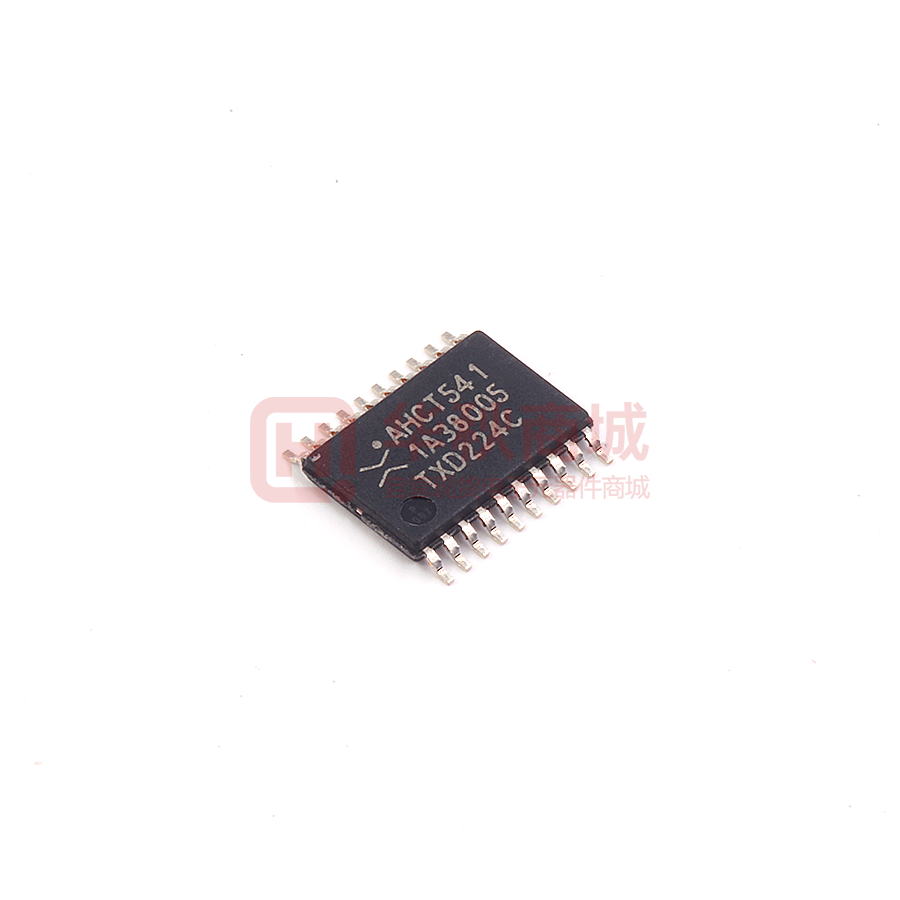

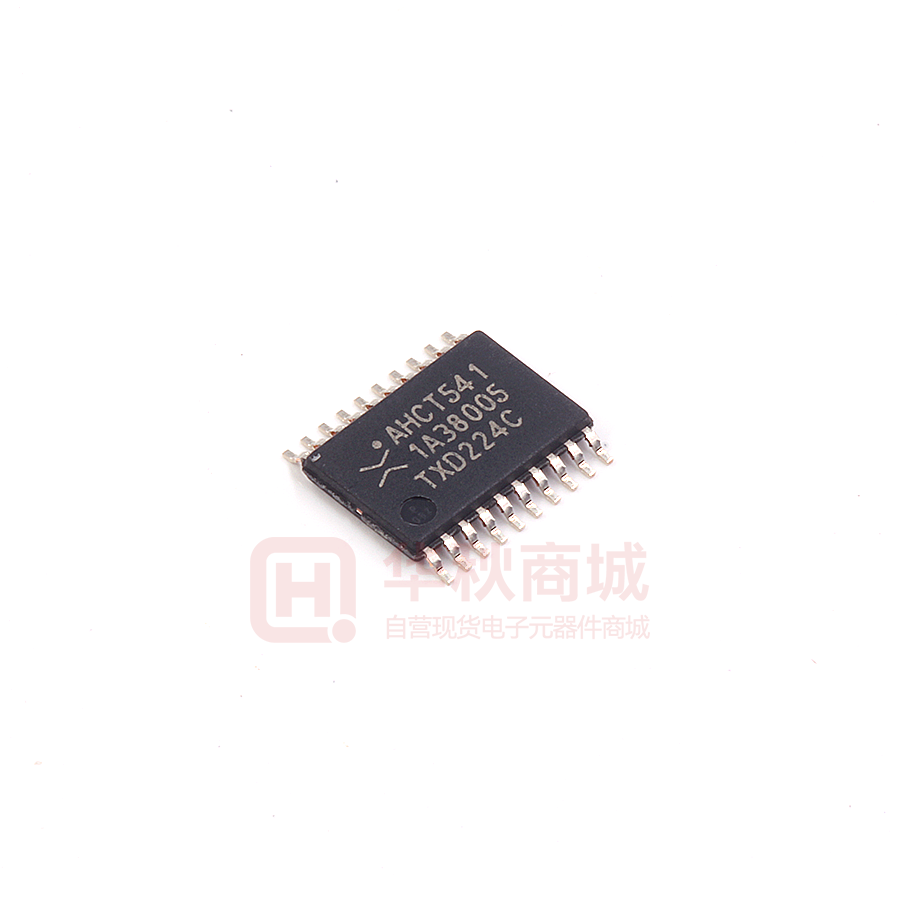

Images are for reference only
74AHCT541PW,118
- Mfr Part #74AHCT541PW,118
- ManufacturerNexperia
- HQ Part #IC0260235
- PackageTSSOP20_6.5X4.4MM
- Lead Time Ship immediately
DescriptionTSSOP-20 Buffer/Driver/Transceiver ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Output Current | 8mA | |
| Supply Voltage | 4.5V~5.5V | |
| Mounting Type | SMT | |
| Package / Case | TSSOP20_6.5X4.4MM | |
| Partlife Cycle | Active | |
| Height | 1.10mm | |
| Country of Origin | China | |
| Original Manufacturer | Nexperia Semiconductor Co., Ltd. | |
| Brand | Nexperia | |
| Size | 6.60 x 4.50mm | |
| Number Of Bits Per Element | 8 | |
| Logical Type | Buffer,Non-Inverting | |
| Working Temperature | -40~+125℃ | |
| Type Of Output | 3-State | |
| Part Status | Active | |
| Series | 74AHCT | |
| Lead Free Or Not | Yes |
