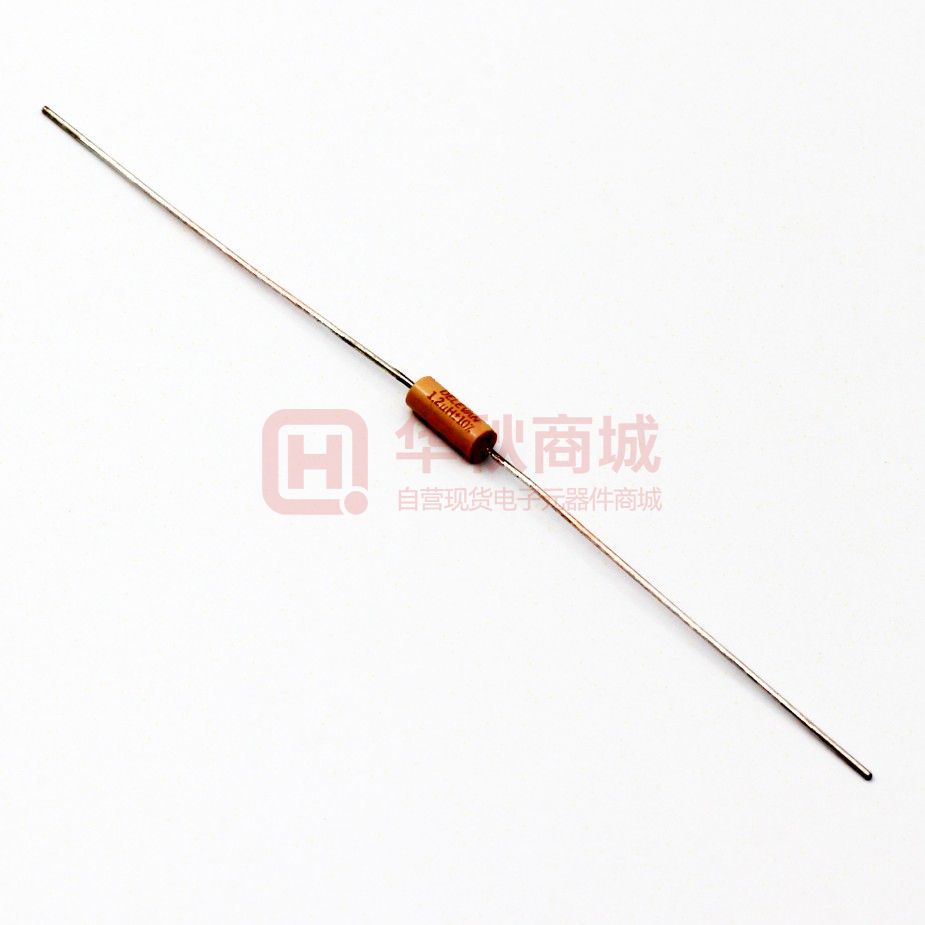

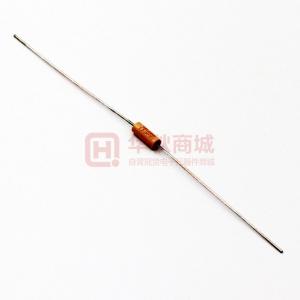

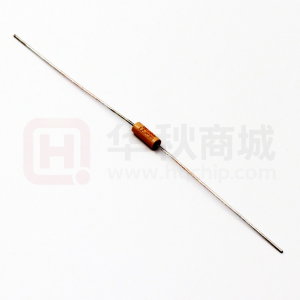

Images are for reference only
1025R-22K
- Mfr Part #1025R-22K
- ManufacturerAPI
- HQ Part #IN0024044
- PackageIND_D2.41X6.35MM_TM
- Lead Time Ship immediately
DescriptionHigh Frequency Inductance 180mΩ 1.2µH ±10% 620mA 150MHz IND_D2.41X6.35MM_TM
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| DC Resistance (DCR) | 180mΩ | |
| Operating Temperature | -55~+105℃ | |
| Self Resonance Frequency | 150MHz | |
| Rated Current | 620mA | |
| Height | 6.35mm | |
| Size | Φ2.41mm | |
| Package / Case | IND_D2.41X6.35MM_TM | |
| Installation Type | DIP | |
| Accuracy | ±10% | |
| Sensibility | 1.2µH | |
| Q @ Freq | 25@7.9MHz | |
| Packaging Technology | Molded | |
| Partlife Cycle | Active | |
| Material | Iron | |
| Storage Temperature | -55~+105℃ | |
| Country of Origin | America | |
| Certification | RoHS | |
| Original Manufacturer | API Delevan | |
| Brand | API Delevan | |
| Series | 1025R | |
| Lead Free Or Not | Yes | |
| 0 | Industrial | |
| Test Frequency | 7.9MHz | |
| Grade | - |
