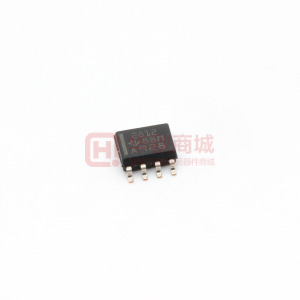

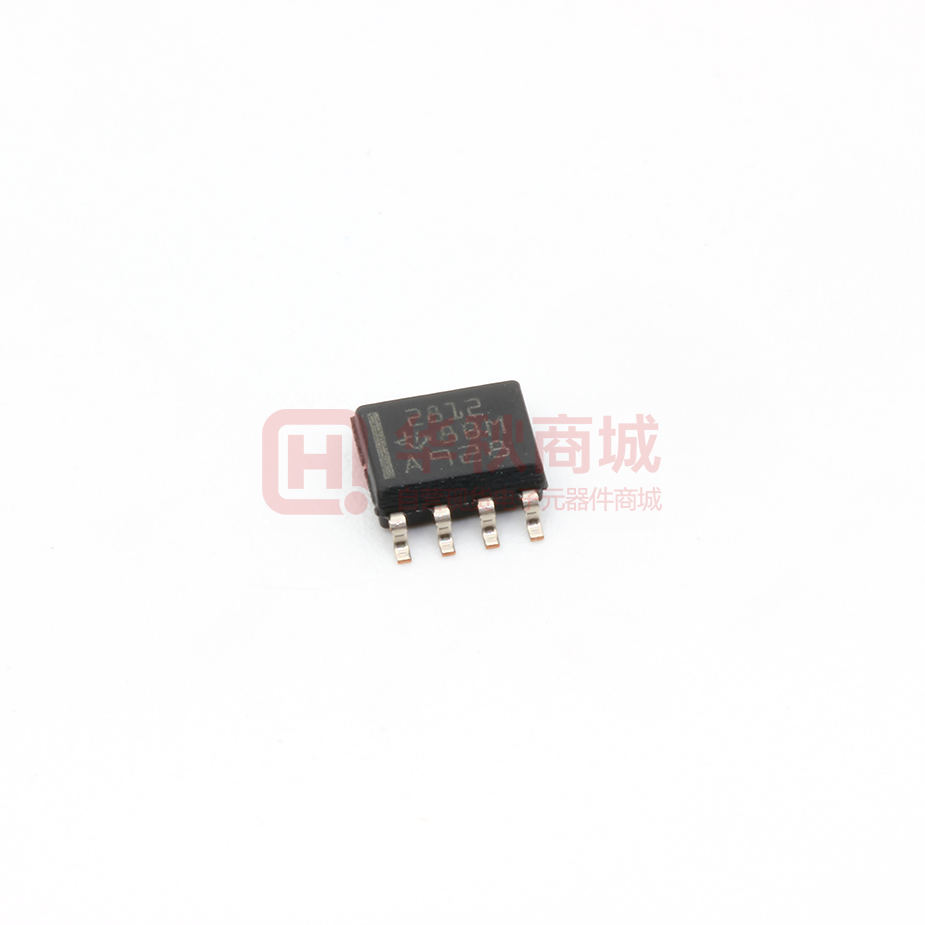

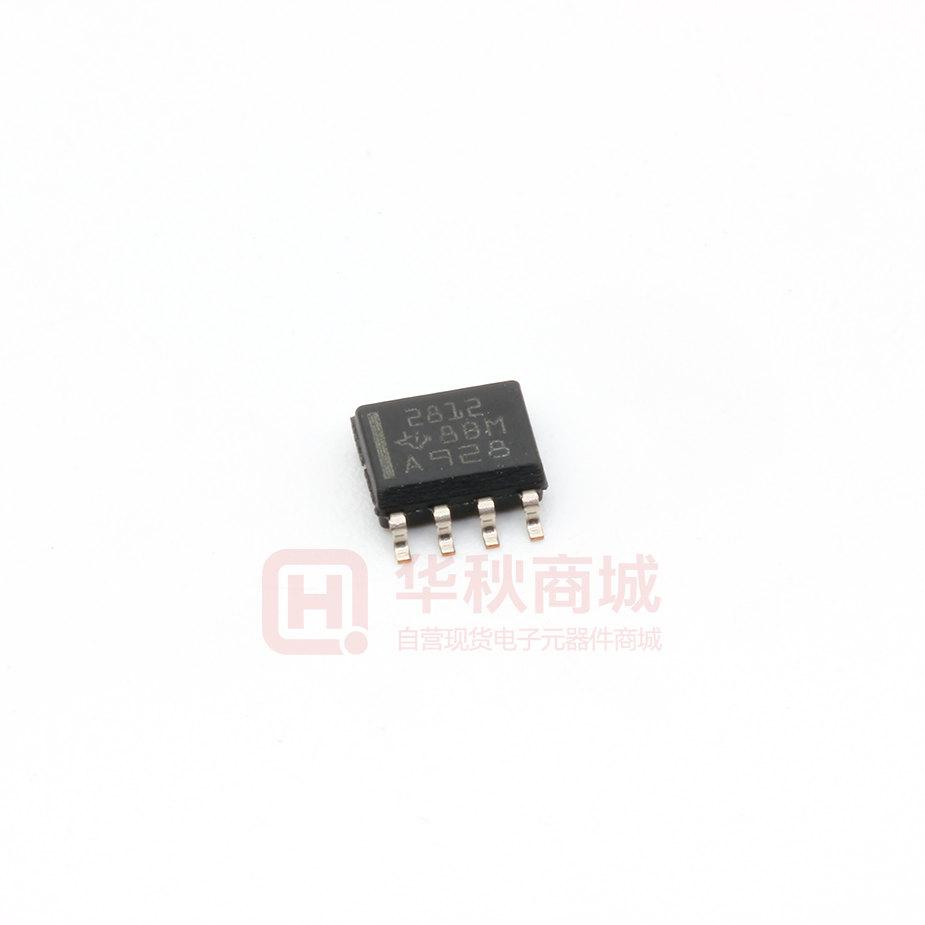

Images are for reference only
TPS2812DR
- Mfr Part #TPS2812DR
- ManufacturerTI
- HQ Part #IC0011985
- PackageSOIC8_150MIL
- Lead Time Ship immediately
DescriptionLow Side MOSFET 2A 4V~14V 2A SOIC-8 Gate Drive ICs ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Output Current | 2A | |
| Package / Case | SOIC8_150MIL | |
| Installation Type | SMT | |
| Rise/Fall Time | 14ns，15ns | |
| Channel Type | Synchronous | |
| Supply Voltage | 4~14V | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Brand | TI | |
| Height | 1.75mm | |
| Size | 4.90 x 3.90mm | |
| Operating Temperature | -40~+125℃ | |
| Input Type | Non-Inverting | |
| Logic Voltage - Vil, Vih | 1V，4V | |
| Grid Type | N-Channel, P-Channel MOSFET | |
| Number Of Drives | 2 | |
| Series | - | |
| Lead Free Or Not | Lead free/RoHS compliant |
