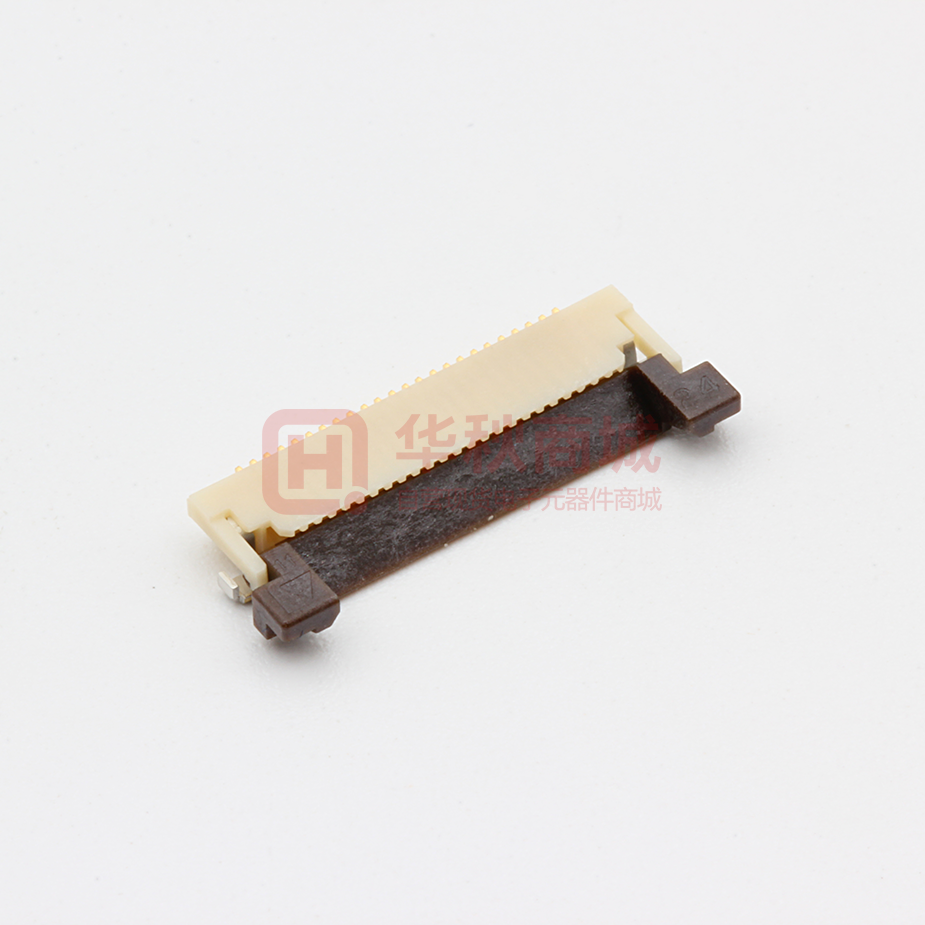

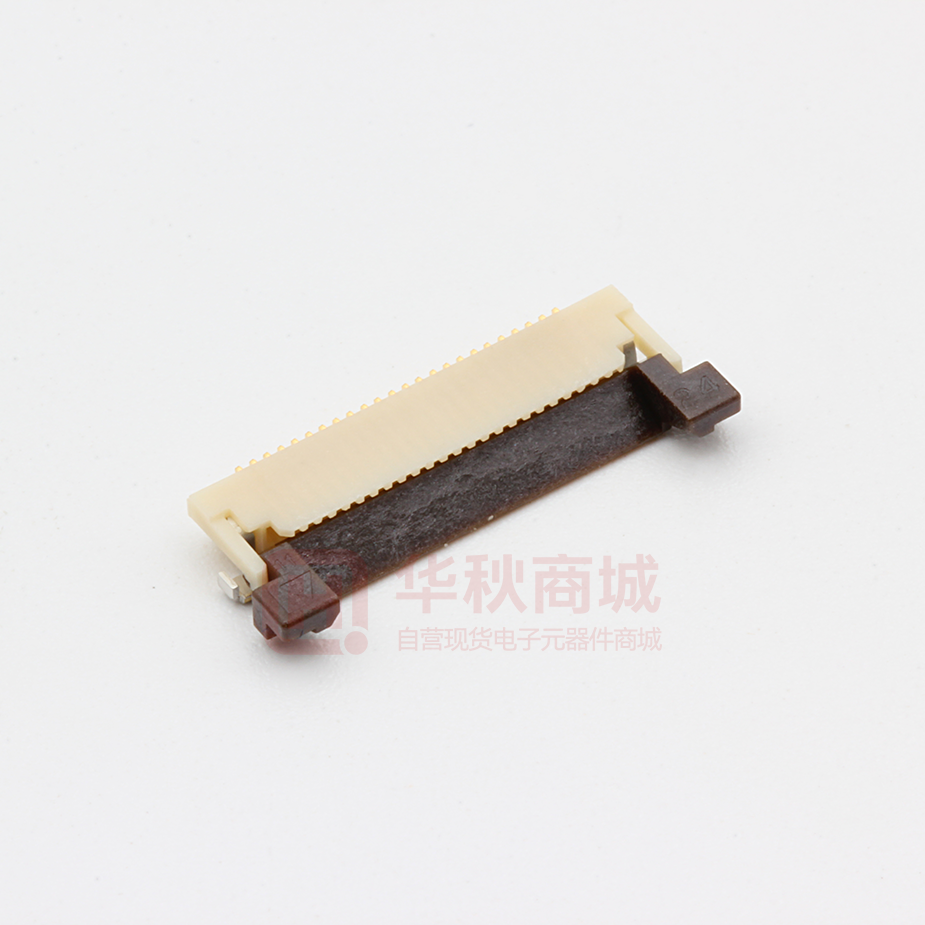

Images are for reference only
FH12A-24S-0.5SH(55)
- Mfr Part #FH12A-24S-0.5SH(55)
- ManufacturerHRS
- HQ Part #CO0886485
- PackageCONN_16.5X6.2MM_SM
- Lead Time Ship immediately
DescriptionFPC/FFC spacing 0.5mm 24Pin flip type H=2.0mm upper connection
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Thickness | 0.30mm | |
| Application | Consumer | |
| Locking Function | Yes | |
| Spacing | 0.50mm | |
| Rated Voltage | 50VAC | |
| Contact Material | - | |
| Rated Current | 500mA | |
| Operating Temperature | -40~+85℃ | |
| Contact Coating Thickness | - | |
| Contact Coating | - | |
| Termination | Solder | |
| Installation Type | Horizontal Type Assembly | |
| Number of Rows | 1 | |
| Number of Positions | 24Pins | |
| Connector Type | - | |
| Mounting Orientation | Right Angle | |
| Application Level | Consumer | |
| Partlife Cycle | Active | |
| Storage Temperature | -10~+50℃ | |
| Certification | RoHS | |
| Country of Origin | Japan | |
| Contact Point | - | |
| Contact Resistance | 50mΩ | |
| Manufacturer | HIROSE ELECTRIC CO.,LTD. | |
| Height | 3.60mm | |
| Flat Flexible Type | FFC | |
| Part Status | - | |
| Series | FH12 | |
| Lead Free Or Not | Yes | |
| Colour | - |
