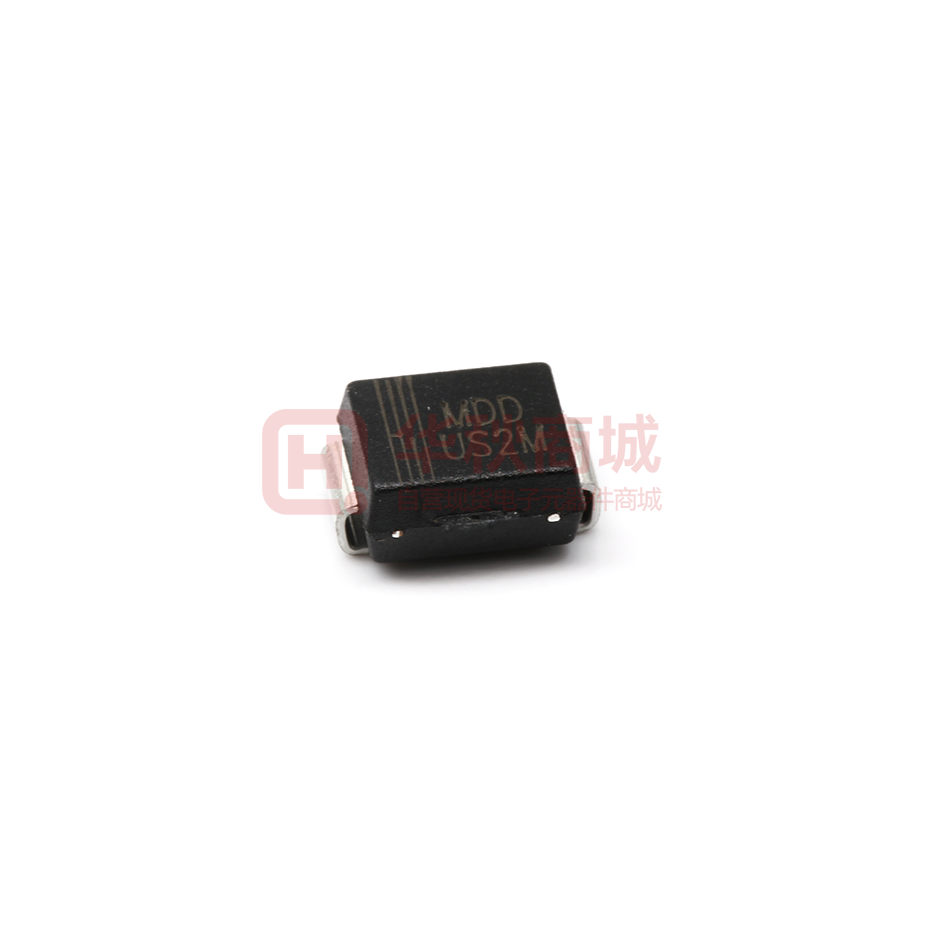

Images are for reference only
US2M-SMB
- Mfr Part #US2M-SMB
- ManufacturerMDD
- HQ Part #DS0139190
- PackageSMB(DO-214AA)
- Lead Time Ship immediately
DescriptionVR=1000V IF=2A 28pF Trr=75ns
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Operating Temperature | -50~+150℃ | |
| Reverse Withstand Voltage Vr | 1KV | |
| Average Rectified Current | 2A | |
| Forward Voltage Drop Vf | 1.7V | |
| Reverse Recovery Time (trr) | 75ns | |
| Reverse Leakage Current Ir | 5μA | |
| Package / Case | SMB(DO-214AA) | |
| Installation Type | SMT | |
| Forward Voltage VF Max | 1.7 | |
| Lead Quantity | 2pin | |
| Height | 2.20mm | |
| Brand | MDD | |
| Application | Consumer | |
| Series | US2A - US2M |
