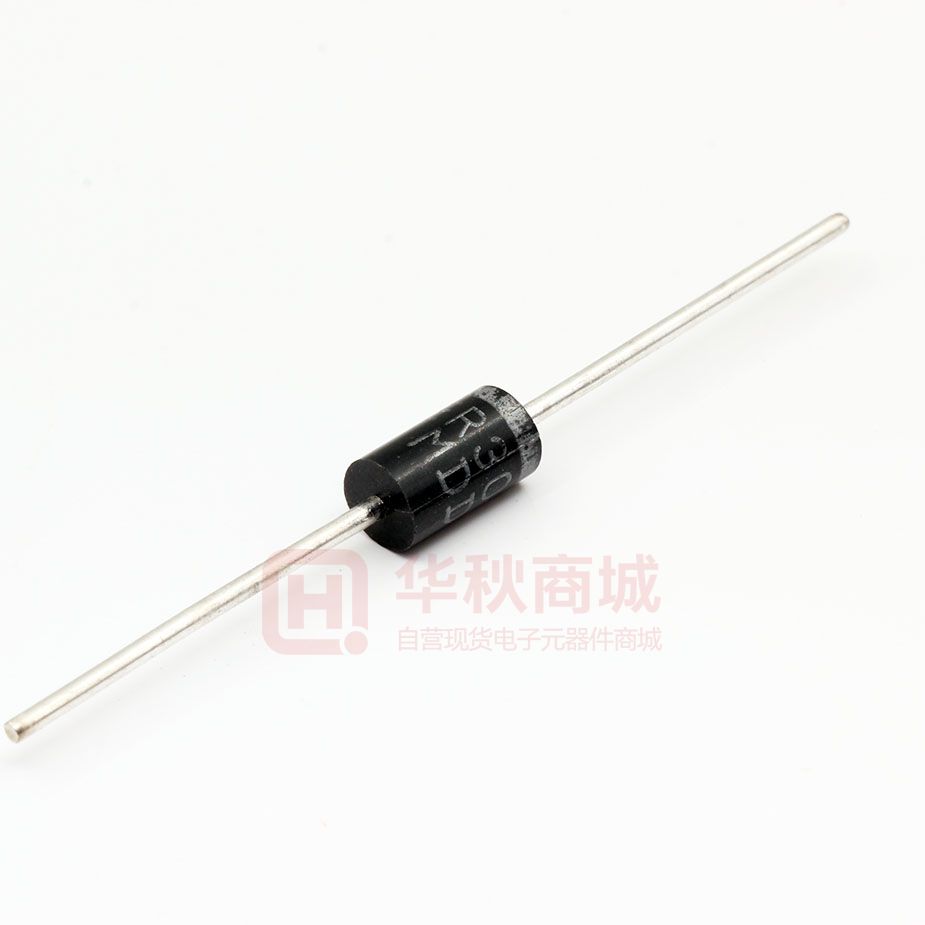

Images are for reference only
HER303
- Mfr Part #HER303
- ManufacturerMDD(辰达半导体)
- HQ Part #DS0139206
- PackageDO-201AD
- Lead TimeShip in 4-7WD
DescriptionFast / Ultra Fast Recovery Diodes VR=200V IF=3A VF=1V IR=5uA trr=50nS
- Customer #
- Datasheet Datasheet
Product Attributes
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Operating Temperature | -65℃~150℃ | |
| Operating Temperature | -65℃~150℃ | |
| Reverse Withstand Voltage Vr | 200V | |
| Average Rectified Current | 3A | |
| Average Rectified Current | 3A | |
| Forward Voltage Drop Vf | 1.3V | |
| Reverse Recovery Time (trr) | 50ns | |
| Reverse Recovery Time (trr) | 50ns | |
| Reverse Leakage Current Ir | 5uA | |
| Package / Case | DO-201AD | |
| Package / Case | DO-201AD | |
| Installation Type | DIP | |
| Junction Capacitance | 70pF | |
| Forward Voltage VF Max | 1V | |
| Storage Temperature | -65~+150℃ | |
| Lead Quantity | 2pin | |
| Height | 5.60mm | |
| L x W/Size | Φ5.60 x 9.50mm | |
| Printing Code | MDD HER 303 | |
| Country of Origin | China | |
| Original Manufacturer | Microdiode Electronics(Shenzhen)Co.,Ltd. | |
| Brand | MDD | |
| Series | HER301 - HER308 | |
| Part Status | Active | |
| Lead Free Or Not | Yes |
