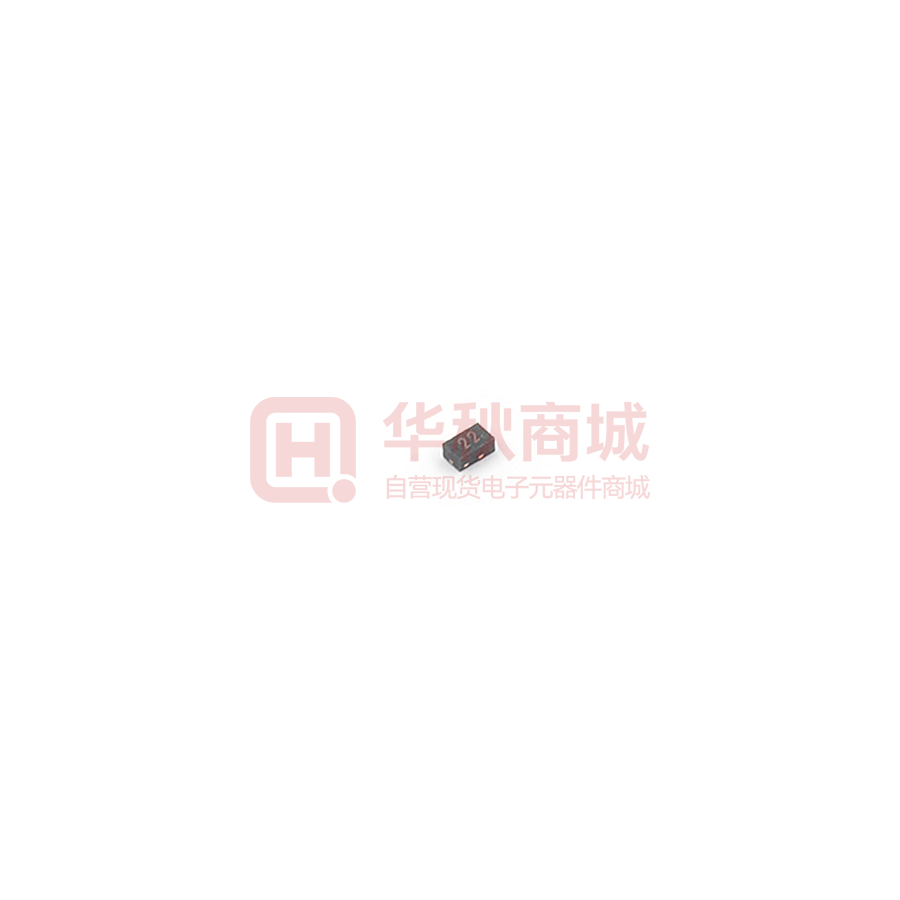

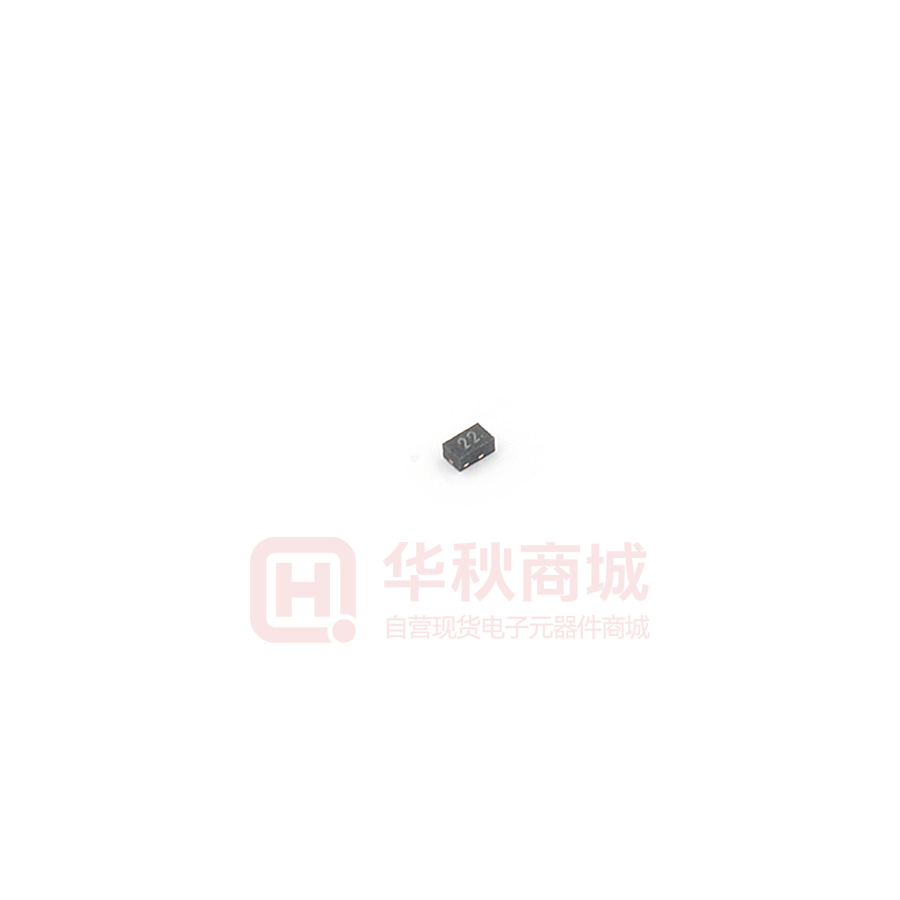

Images are for reference only
PESDHC2FD4V5BH
- Mfr Part #PESDHC2FD4V5BH
- ManufacturerPrisemi
- HQ Part #PD0005202
- PackageDFN1006-2L
- Lead Time Ship immediately
DescriptionESD Suppressor / TVS Diodes VRWM=4.5V VC=18V IPP=36A Ppp=500W DFN1006-2L
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Size | 1.08 x 0.68mm | |
| Height | 0.50mm | |
| Peak Pulse Current (Ipp) | 36A | |
| Installation Type | SMT | |
| Operating Temperature | -55~+150℃ | |
| Breakdown Voltage - Min | - | |
| Polarity | Bidirectional | |
| Package / Case | DFN1006-2L | |
| Lead Quantity | 2Pin | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Country of Origin | China | |
| Original Manufacturer | Shanghai Prisemi Electronics Co., Ltd. | |
| Brand | Prisemi | |
| Off State Voltage | 4.5V | |
| Part Status | Active | |
| Number Of Channels | 1 | |
| Power Peak Pulse | 500W |
