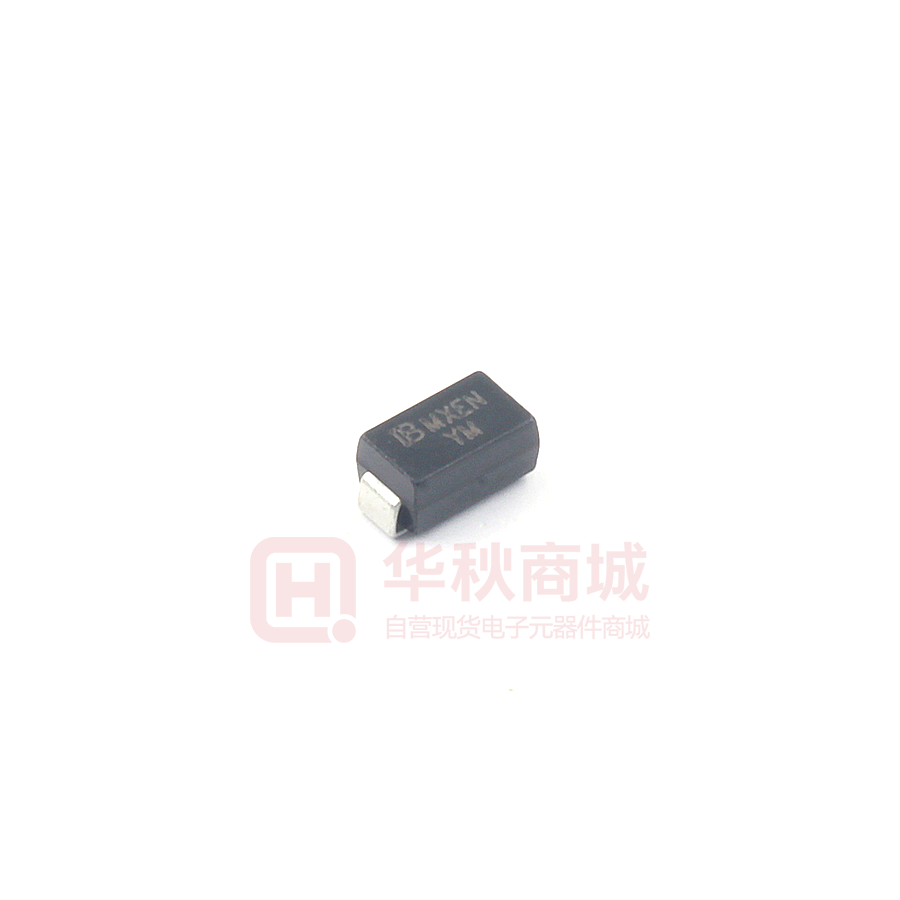

Images are for reference only
SMAJ33CA
- Mfr Part #SMAJ33CA
- ManufacturerBrightking
- HQ Part #PD0004925
- PackageSMA(DO-214AC)
- Lead Time Ship immediately
DescriptionTVS Diode VRWM=33 V VBR(Min)=36.7 V VC=53.3 V IPP=7.5 A Ppp=400 W SMA
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Size | 4.50 x 2.79mm | |
| Height | 2.30mm | |
| Peak Pulse Current (Ipp) | 7.5A | |
| Installation Type | SMT | |
| Operating Temperature | -55~+150℃ | |
| Breakdown Voltage - Min | 36.7V | |
| Polarity | Bidirectional | |
| Package / Case | SMA | |
| Lead Quantity | 2Pin | |
| Halide Free | Yes | |
| Partlife Cycle | Active | |
| Storage Temperature | -55~+150℃ | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong Baizhen Brightking Electronics Co., LTD | |
| Brand | Brightking | |
| Off State Voltage | 33V | |
| Part Status | Active | |
| Number Of Channels | 1 | |
| Series | SMAJ | |
| Lead Free Or Not | Yes | |
| Power Peak Pulse | 400W |
