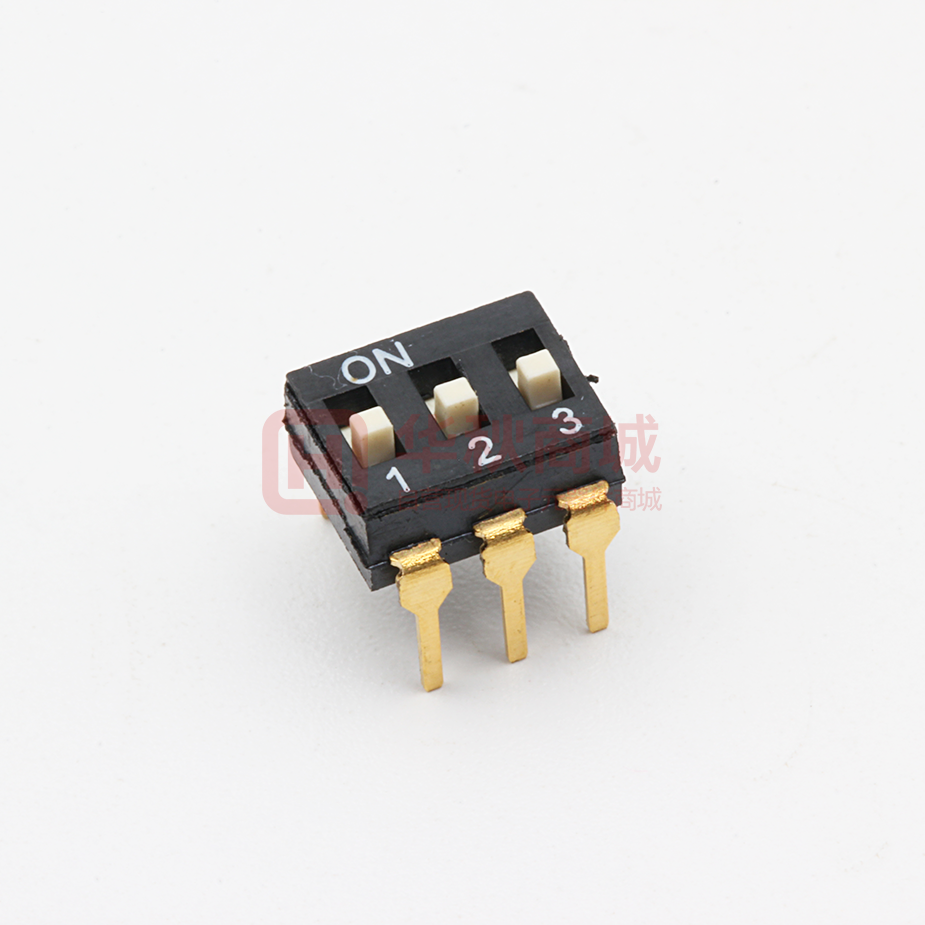

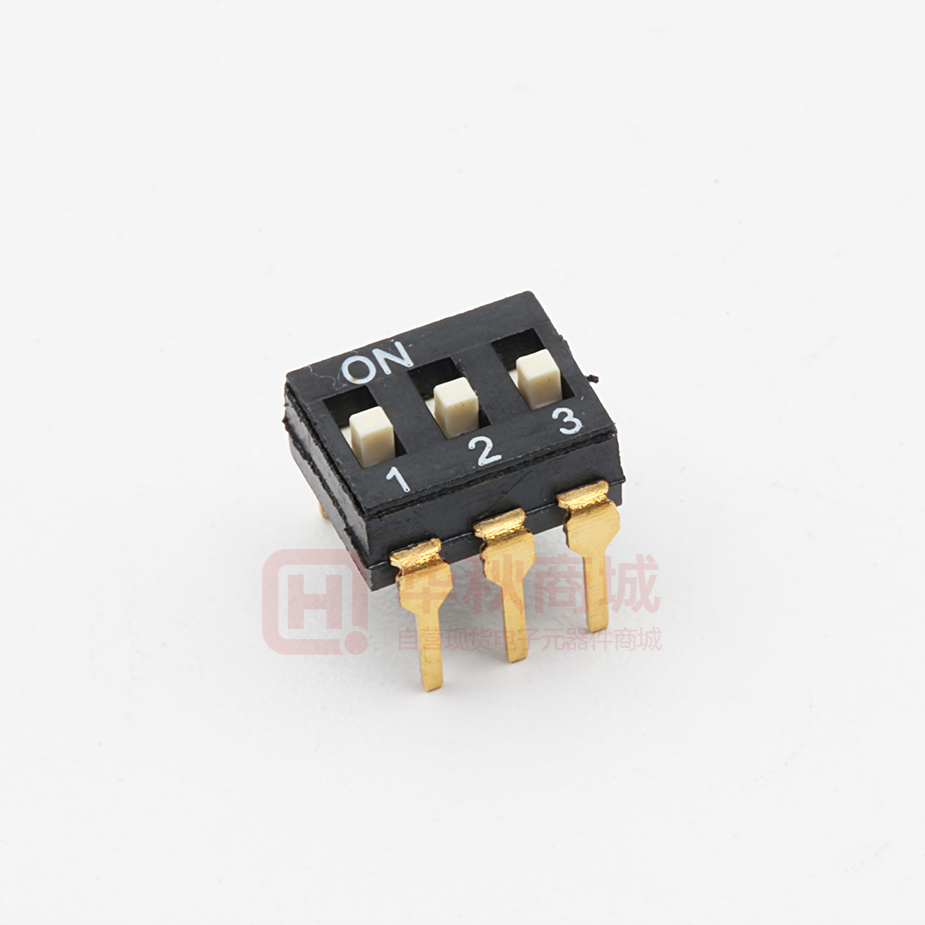

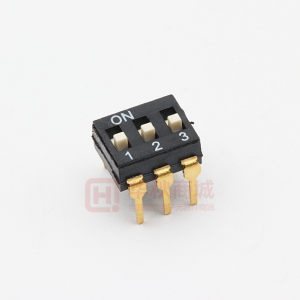

Images are for reference only
DSIC03LH-P
- Mfr Part #DSIC03LH-P
- ManufacturerXKB Connection(中国星坤)
- HQ Part #SW0049253
- Package插件
- Lead TimeShip in 4-7WD
DescriptionThe distance between dial switches is 2.54mm, and the 3-position straight plug convex rod is turned forward 25mA, 24V, and the service life is 3000 times, black
- Customer #
- Datasheet Datasheet
Product Attributes
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | - | |
| Installation Type | DIP | |
| Contact Coating | - | |
| Actuator Type | - | |
| Rated Voltage | 24V | |
| Rated Current-DC | 25mA | |
| Lead Quantity | 6Pin | |
| Contact Form | SPST | |
| Partlife Cycle | Active | |
| Storage Temperature | -30~+80℃ | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong XKB Technology Co., Ltd. | |
| Brand | XKB | |
| Switch Digits | 3 | |
| Part Status | Active | |
| Series | DSIC | |
| Size | 7.62 x 6.00mm | |
| Operating Force | 8N | |
| Operating Life | 3000Cycles | |
| Rated Voltage - Dc | 24V | |
| Operating Temperature | -20~+70℃ | |
| Spacing | 2.54mm | |
| Height | 0.148"（3.75mm） | |
| Circuit | SPST |
