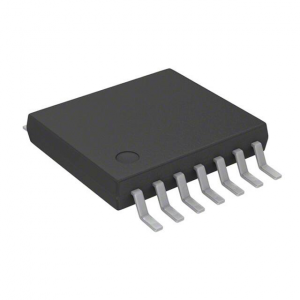

Images are for reference only
MCP41HV31-104E/ST
- Mfr Part #MCP41HV31-104E/ST
- ManufacturerMicrochip
- HQ Part #IC0237093
- PackageTSSOP14_5X4.4MM
- Lead Time Ship immediately
DescriptionDigital Potentiometer ICs 7B volatile Potent iometer 100kohm
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Characteristic | - | |
| Package / Case | TSSOP14_5X4.4MM | |
| Installation Type | SMT | |
| Temperature coefficient | 100ppm/°C | |
| Interface Type | SPI | |
| Wiper resistance | 145Ω | |
| End to end resistance tolerance | 20% | |
| End to end resistance | 100KΩ | |
| Partlife Cycle | Active | |
| Height | 1.00mm | |
| Country of Origin | America | |
| Original Manufacturer | Microchip Technology Inc. | |
| Brand | Microchip | |
| Size | 5.00 x 4.40mm | |
| Number Of Channels | 1 | |
| Data Interface | SPI | |
| Operating Temperature | -40~+125℃ | |
| Resistance Vernier (Ohms) (Typ.) | 145 | |
| Tolerance | ±20% | |
| Supply Voltage | 18V | |
| Memory Type | - | |
| Interface | SPI | |
| Resistance (Ohms) | 100KΩ | |
| Number Of Taps | 128 | |
| Number Of Circuits | 1 | |
| To Configure | - | |
| Cone | - | |
| Part Status | Active | |
| Series | - | |
| Manufacturer'S Standard Lead Time | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes |
