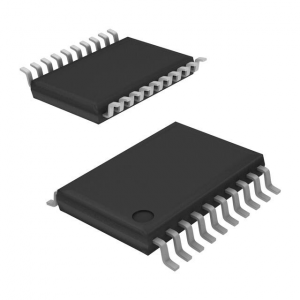

Images are for reference only
X95840WV20IZ-2.7
- Mfr Part #X95840WV20IZ-2.7
- ManufacturerIntersil
- HQ Part #IC0101030
- PackageTSSOP20_6.5X4.4MM
- Lead Time Ship immediately
DescriptionQuad Digital Controlled Potentiometers (XDCP™) Low Noise/Low Power/I2C Bus/256 Taps
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Characteristic | Selectable Address | |
| Package / Case | TSSOP20_6.5X4.4MM | |
| Installation Type | SMT | |
| Temperature coefficient | ±45ppm/°C | |
| Interface Type | I²C | |
| Lead Quantity | 20Pins | |
| Wiper resistance | 70Ω | |
| End to end resistance | 10KΩ | |
| Partlife Cycle | Active | |
| Height | 1.20mm | |
| Country of Origin | America | |
| Original Manufacturer | Renesas Electronics Corporation | |
| Brand | Renesas | |
| Size | 6.50 x 4.40mm | |
| Number Of Channels | 4 | |
| Data Interface | I²C | |
| Operating Temperature | -40~+85 | |
| Resistance Vernier (Ohms) (Typ.) | 70 | |
| Tolerance | ±20% | |
| Supply Voltage | 5.5V | |
| Memory Type | Nonvolatile | |
| Interface | I²C | |
| Resistance (Ohms) | 10KΩ | |
| Number Of Taps | 256 | |
| Number Of Circuits | 4 | |
| To Configure | - | |
| Cone | - | |
| Part Status | Active | |
| Series | XDCP™ | |
| Manufacturer'S Standard Lead Time | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes |
