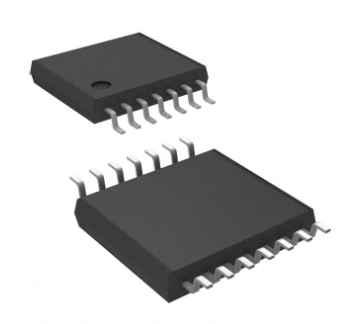

Images are for reference only
AD5293BRUZ-20
- Mfr Part #AD5293BRUZ-20
- ManufacturerADI
- HQ Part #IC0238560
- PackageTSSOP14_5X4.4MM
- Lead Time Ship immediately
DescriptionSPI TSSOP-14 Digital Potentiometers ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Characteristic | - | |
| Package / Case | TSSOP14_5X4.4MM | |
| Installation Type | SMT | |
| Temperature coefficient | 35ppm/°C | |
| Interface Type | SPI | |
| Wiper resistance | 60Ω | |
| End to end resistance tolerance | 1% | |
| Resistance taper | Linear | |
| End to end resistance | 20KΩ | |
| Number of steps | 1024 | |
| Bandwidth | 520KHz | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Height | 1.20mm | |
| Certification | RoHS, | |
| Country of Origin | America | |
| Original Manufacturer | Analog Devices, Inc. | |
| Brand | ADI | |
| Size | 5.10 x 4.50mm | |
| Number Of Channels | 1 | |
| Operating Temperature | -40~+105 | |
| Resistance Vernier (Ohms) (Typ.) | 60 | |
| Tolerance | ±1% | |
| Supply Voltage | 9V~33V，±9V~16.5V | |
| Memory Type | Volatile | |
| Interface | SPI | |
| Resistance (Ohms) | 20KΩ | |
| Number Of Taps | 1024 | |
| Number Of Circuits | 1 | |
| To Configure | - | |
| Cone | - | |
| Part Status | Active | |
| Series | AD5293 | |
| Manufacturer'S Standard Lead Time | - | |
| Moisture Sensitivity Level (MSL) | - | |
| Lead Free Or Not | Yes |
