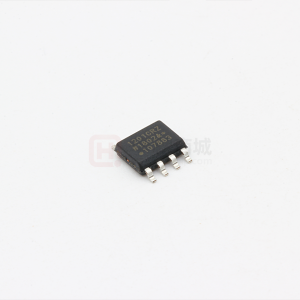

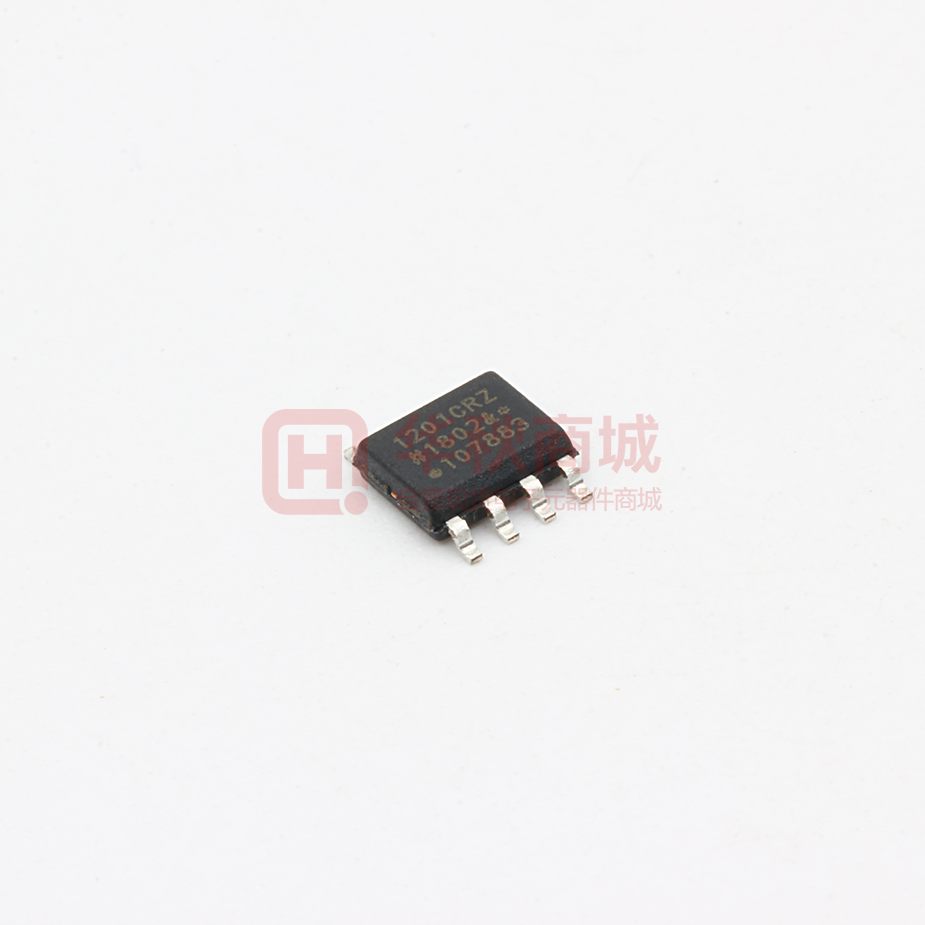

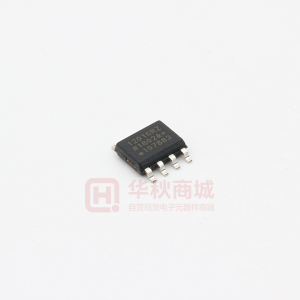

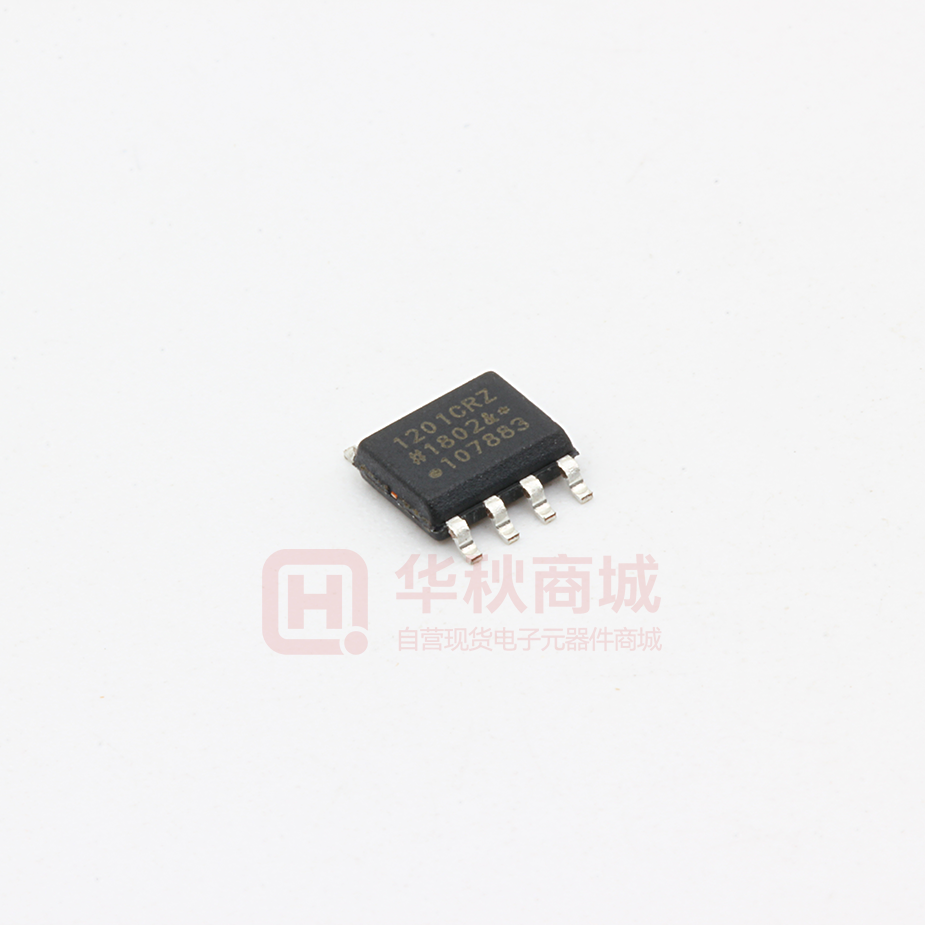

Images are for reference only
ADUM1201CRZ-RL7
- Mfr Part #ADUM1201CRZ-RL7
- ManufacturerADI
- HQ Part #IS0012544
- PackageSOIC8_150MIL
- Lead Time Ship immediately
Description1 2.7V~5.5V Magnetic isolation Without voltage isolation 1 2 25Mbps SOIC-8 Digital Isolators ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Purpose Type (Function) | - | |
| Transmission Speed | 25Mb/s | |
| Number Of Circuit Groups (Number Of Channels) | 2Channel | |
| Rise/Fall Time (Typical Value) | 2.5ns | |
| Installation Type | SMT | |
| Package / Case | SOIC8_150MIL | |
| Working Voltage | 2.7V~5.5V | |
| Lead Quantity | 8Pins | |
| Certification | RoHS | |
| Partlife Cycle | Active | |
| Height | 1.55mm | |
| L x W/Size | 4.90 x 3.90mm | |
| Country of Origin | America | |
| Original Manufacturer | Analog Devices, Inc. | |
| Brand | ADI | |
| Isolation Voltage | 2.5KV | |
| Propagation Delay Tplh/Tphl (Maximum) | 45ns，45ns | |
| Moisture Sensitivity Level (MSL) | - | |
| Series | iCoupler® | |
| Part Status | Active | |
| Operating Temperature | -40°C~105°C |
