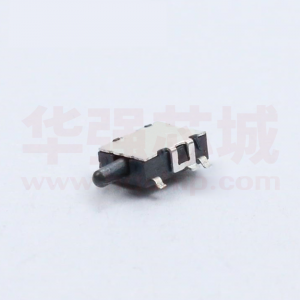

Images are for reference only
TM-1022-B
- Mfr Part #TM-1022-B
- ManufacturerXKB
- HQ Part #SW0049302
- PackageSW-6P_5.6X4MM_SM
- Lead Time Ship immediately
Description5.6mm 100mA 4mm 30V SPST - NO Detection switch -40℃~+85℃ Gull Wing 1.9mm 100000 SMD Microswitches ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Package / Case | SW4_8.1x5.1mm_SM | |
| Installation Type | SMT | |
| Contact Coating | Silver | |
| Rated Current-DC | 100mA | |
| Lead Quantity | 6Pin | |
| Contact Form | SPST-NO | |
| Partlife Cycle | Active | |
| Application Level | Consumer | |
| Country of Origin | China | |
| Original Manufacturer | Guangdong XKB Technology Co., Ltd. | |
| Brand | XKB | |
| Part Status | Active | |
| Lead Free Or Not | Yes | |
| Size | 8.10 x 5.10mm | |
| Rated Voltage - Dc | 30V | |
| Operating Temperature | -40~+85℃ | |
| Height | 2.40mm | |
| Circuit | SPST |
