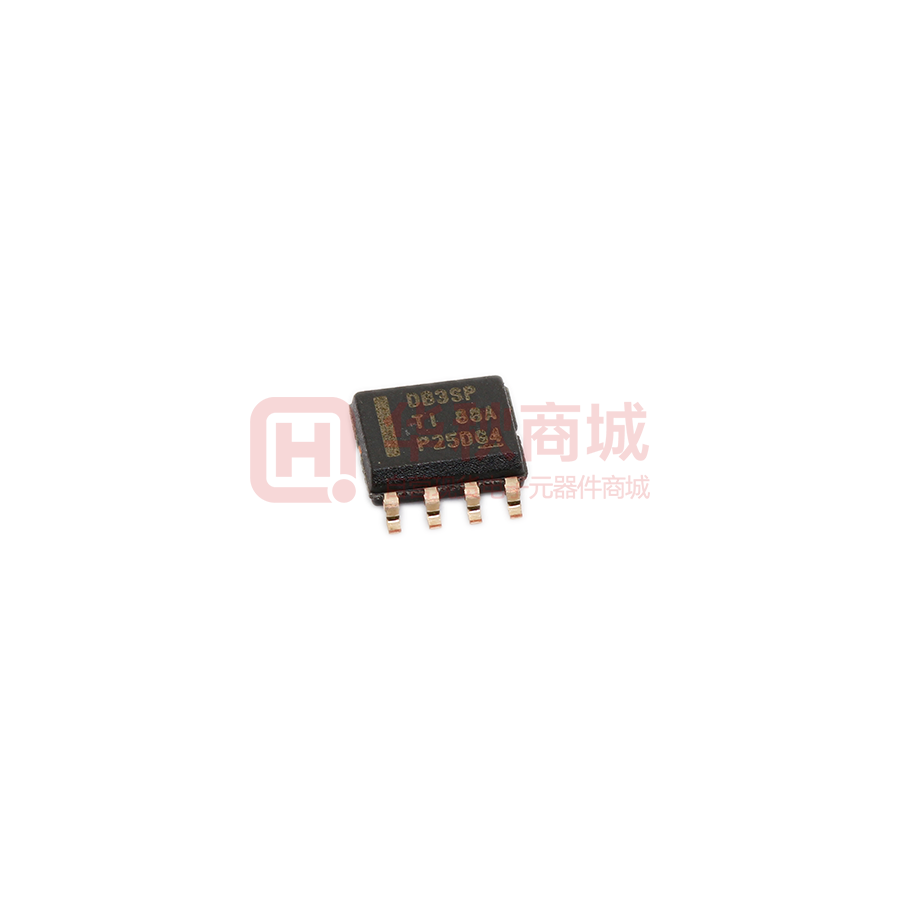

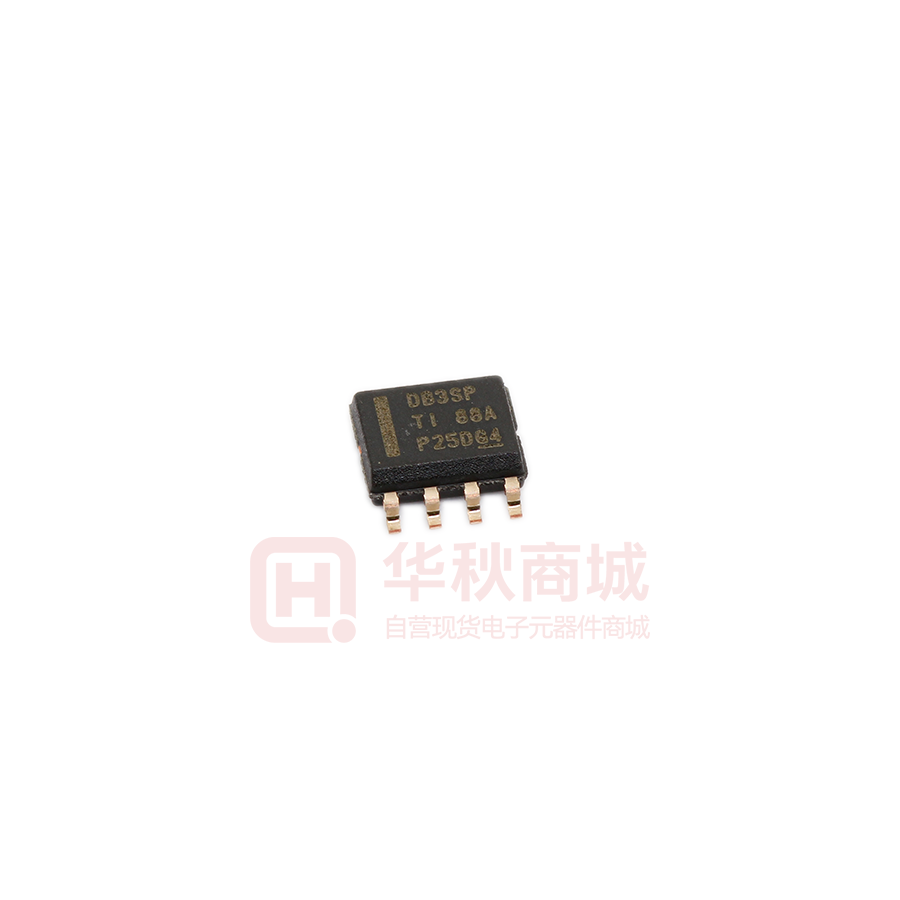

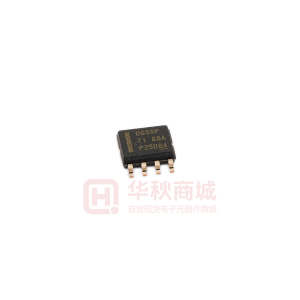

Images are for reference only
LMR14030SDDAR
- Mfr Part #LMR14030SDDAR
- ManufacturerTI
- HQ Part #IC0058603
- PackageSOIC8_150MIL_EP
- Lead Time Ship immediately
DescriptionStep-down type -40℃~+125℃@(TJ) 1 Step-down Adjustable 0.8V~28V 3.5A 4V~40V 2.5MHz SO-8-EP DC-DC Converters ROHS
- Customer #
- Datasheet Datasheet
Product Attributes View Similar
| Type | Description | Select |
|---|---|---|
| Product Type | ||
| Output Current | 3.5A | |
| Type Of Output | Adjustable | |
| Function | - | |
| Output Configuration | Positive | |
| Output Voltage | 0.8~28V | |
| Switching Frequency | 200kHz~2.5MHz | |
| Topological Structure | - | |
| Package / Case | SOIC8_150MIL_EP | |
| Installation Type | SMT | |
| Input Voltage Range | 4V~40V | |
| Partlife Cycle | Active | |
| Storage Temperature | -65~+150℃ | |
| Country of Origin | America | |
| Original Manufacturer | Texas Instruments Incorporated | |
| Brand | TI | |
| Height | 1.70mm | |
| Size | 5.00 x 4.00mm | |
| Operating Temperature | -40~+125℃ | |
| Series | SIMPLE SWITCHER® | |
| Lead Free Or Not | Lead free/RoHS compliant |
